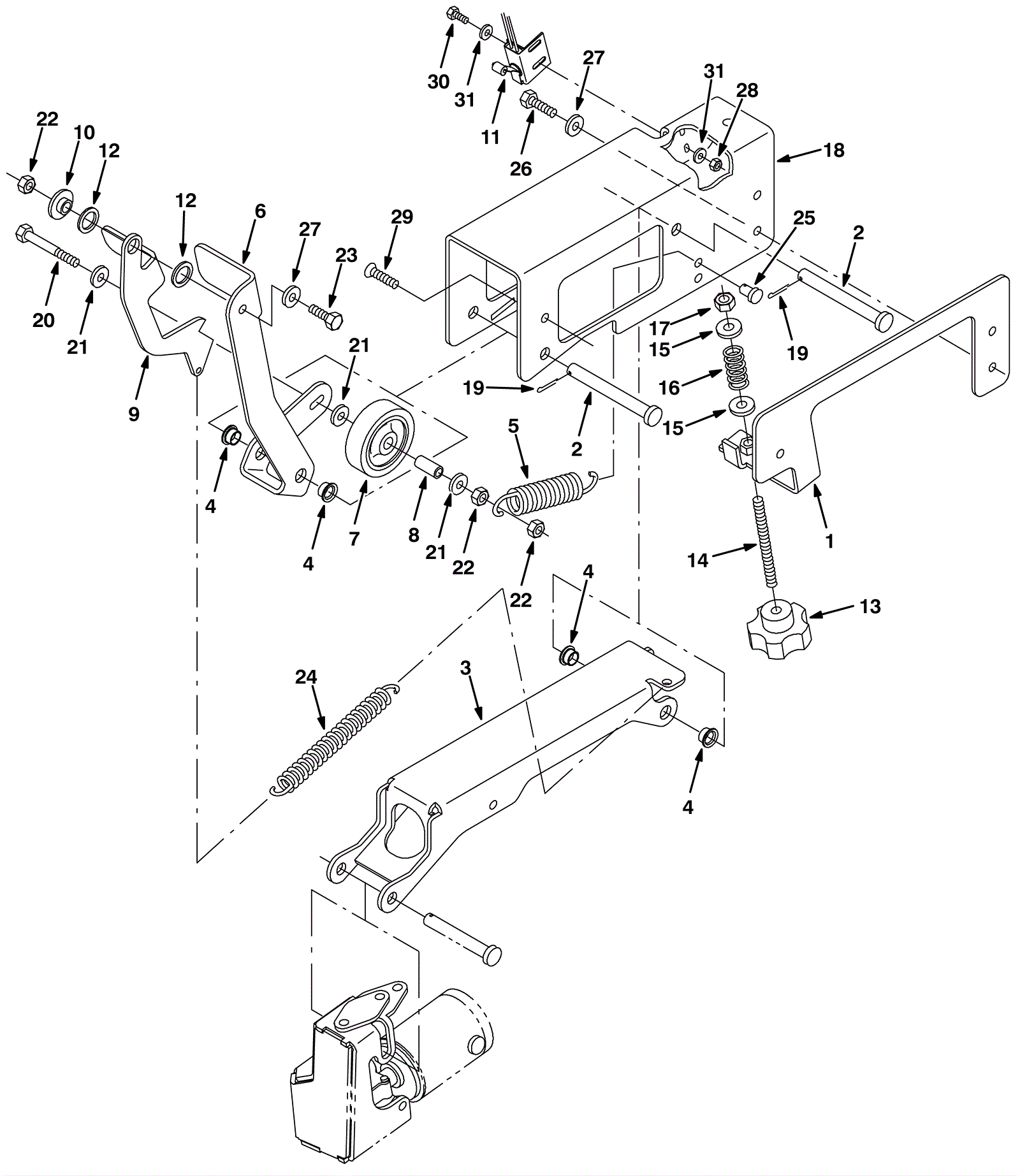

T15 Side Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0135 Side brush plate (Tennant Industrial) $58.12 1 usually ships 1-5 days
2 175-5401 Clevis pin 1/2 x 4 1/2 $4.50 2 usually ships 6-16 days
3 275-0136 Side brush arm $81.60 1 usually ships 1-5 days
4 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
5 275-0137 SPRING, EXTN, 0.75OD 0.08WIR 04.5L (Tennant Industrial) $74.32 1 usually ships 1-5 days
6 275-7236 Left side brush arm (Tennant Industrial) $79.33 1 usually ships 1-5 days
7 175-2066 3 inch bumper wheel $8.60 1 usually ships 6-16 days
8 175-3157 Sleeve .318 x .437 x 1.06 inch $5.70 1 usually ships 6-16 days
9 275-0139 Side brush brake arm $44.92 1 usually ships 6-16 days
10 175-3287 Flanged bushing $5.61 1 ships same day
11 275-0140 Roller snap switch 15A no $119.70 1 usually ships 6-16 days
12 175-4689 Washer 3/4 x 1 x 1/32 nylon $4.60 2 usually ships 1-5 days
13 275-0141 KNOB, STAR, 2.50D 5EAR 1.5L .38-16,PLSTC (Tennant Industria $55.44 1 usually ships 1-5 days
14 275-0142 SHAFT, THRD (Tennant Industrial) $67.30 1 usually ships 1-5 days
15 175-2305 Washer $3.96 2 ships same day
16 275-0143 Compression spring $3.96 1 ships same day
17 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $1.25 1 ships same day
18 275-0144 Side brush plate (Tennant Industrial) $24.24 1 ships same day
19 175-3281 Cotter pin $2.42 2 usually ships 6-16 days
20 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 ships same day
21 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
23 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 1 ships same day
24 275-0145 SPRING, EXTN, 0.50OD 0.06WIR 05.0L (Tennant Industrial) $1,400.30 1 usually ships 1-5 days
25 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.01 1 usually ships 1-5 days
26 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc $0.90 2 ships same day
27 999-0123 Washer 1/4 SAE flat zinc plated $0.99 3 ships same day
28 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
29 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 1 ships same day
30 175-6939 Screw M5 x 16mm stainless steel $2.70 2 usually ships 1-5 days
31 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
