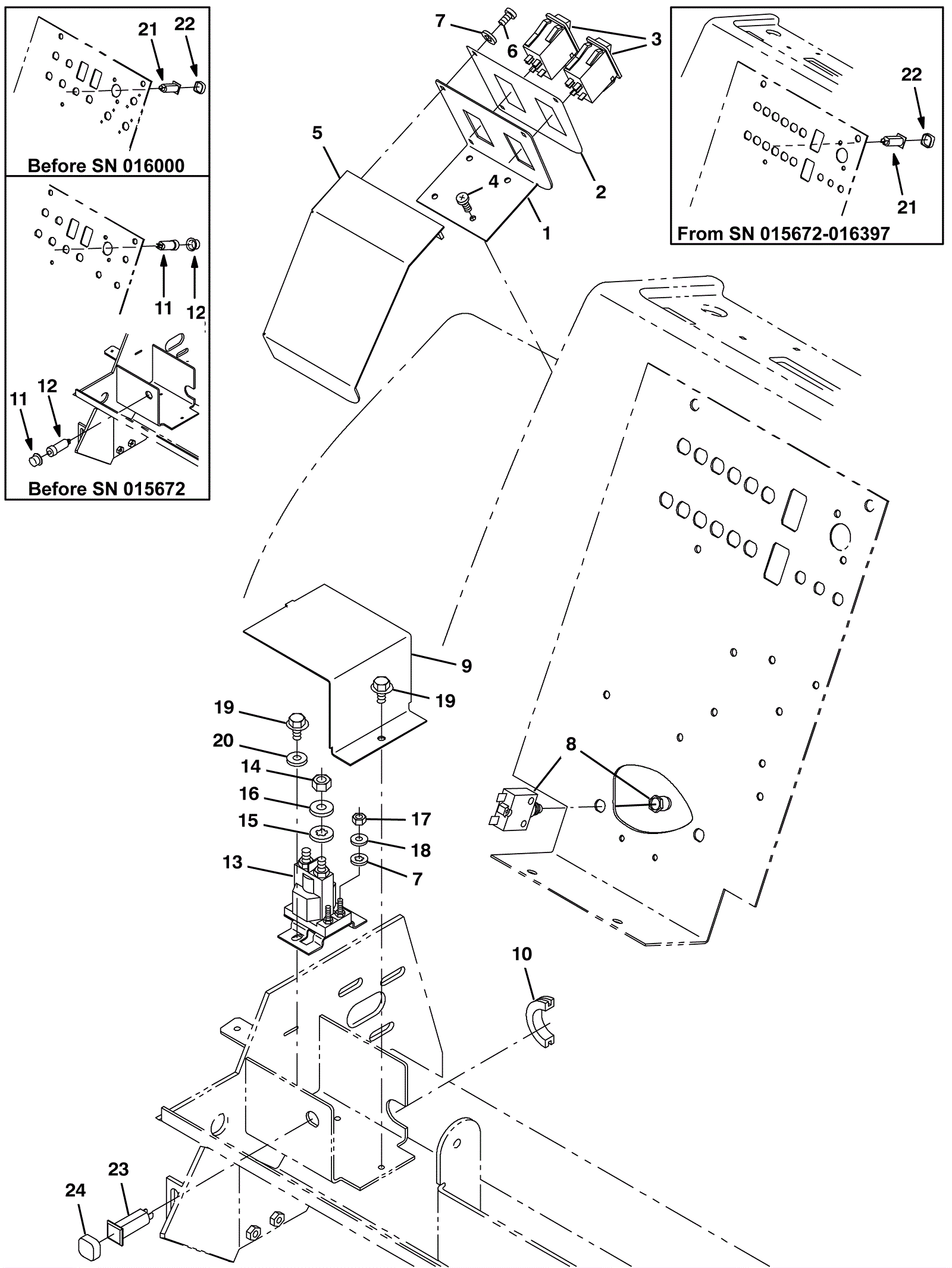

T15 Pre-Sweep Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7232 Switch panel (Tennant Industrial) $37.07 1 usually ships 1-5 days
2 275-0119 Pre-sweep operational label $67.10 1 usually ships 1-5 days
3 275-0120 DPDT rocker switch $40.10 2 usually ships 1-5 days
4 275-0121 SCREW, PAN, PHL, 10-14 X 0.50, F/ PLSTC (Tennant Industrial $2.51 4 usually ships 1-5 days
5 275-7233 Panel cover (Tennant Industrial) $90.51 1 usually ships 1-5 days
6 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.90 3 ships same day
7 999-0089 Washer #10 internal star lock zinc plated $0.99 5 ships same day
8 991-1631 25amp circuit breaker $15.18 1 ships same day
9 275-7234 Relay cover (Tennant Industrial) $24.22 1 usually ships 1-5 days
10 175-3446 Rubber grommet $3.80 1 usually ships 6-16 days
11 175-2542 10amp circuit breaker $16.40 2 (before SN 015672) usually ships 6-16 days
12 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 2 (before SN 015672) ships same day
13 175-2373 36V contactor $32.20 1 ships same day
14 999-0763 Nut 5/16-24 hex jam plain finish $0.90 2 ships same day
15 999-0406 Washer 5/16 internal star lock zinc plated $0.90 2 ships same day
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
17 999-0460 Nut 10-32 hex $0.90 2 ships same day
18 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
19 175-3298 Bolt M6-1 x 12mm hex head $4.06 3 ships same day
20 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
21 275-9986 10amp circuit breaker (Tennant Industrial) $8.27 1 (between SN 015672 and SN 016397) ships same day
22 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 (between SN 015672 and SN 016397) ships same day
23 275-9986 10amp circuit breaker (Tennant Industrial) $8.27 1 (after SN 015671) ships same day
24 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 1 (after SN 015671) ships same day
