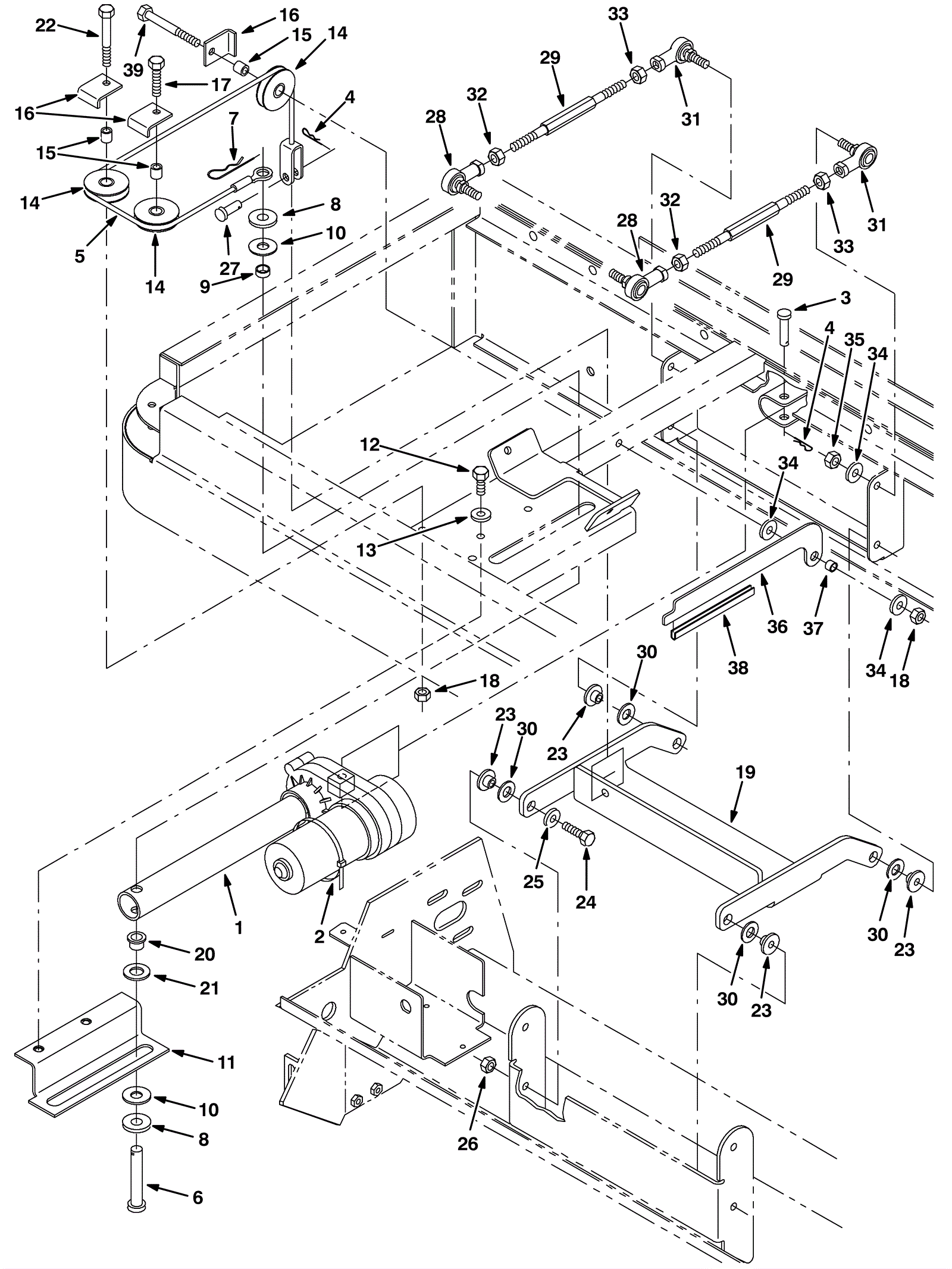

T15 Pre-Sweep Brush Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1a 275-7226 Replacement pre-sweep actuator kit (Tennant Industrial) $747.83 1 (electric) usually ships 1-5 days
1b 275-0053 Actuator 36VDC 600lb (Tennant Industrial) $866.23 1 (gas/lpg) usually ships 5-16 days
2 175-2202 Nylon wire tie $3.30 1 ships same day
3 175-2111 Clevis pin $3.85 1 ships same day
4 175-2113 Cotter pin $2.42 2 ships same day
5 275-0054 GLV cable .19d 28.3l .4 clevis/.55 eye $32.78 1 usually ships 1-5 days
6 175-2591 Clevis pin $4.84 1 usually ships 1-5 days
7 175-2106 Cotter hair pin $3.30 1 ships same day
8 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
9 175-2747 Bushing $3.85 1 usually ships 5-16 days
10 275-0055 WASHER, FLAT, 0.52B 1.25D .06, NYL (Tennant Industrial) $5.01 2 usually ships 1-5 days
11 275-7227 Actuator bracket (Tennant Industrial) $29.23 1 usually ships 1-5 days
12 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
13 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
14 275-0057 PULLEY, CABLE, 1.5D NYL (Tennant Industrial) $7.52 3 usually ships 5-16 days
15 175-2249 Sleeve $3.08 3 ships same day
16 275-0058 Cable keeper angle bracket $7.37 3 usually ships 1-5 days
17 175-0634 Bolt M8-1 1/4 x 35mm hex head $3.30 3 usually ships 1-5 days
18 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 3 ships same day
19 275-0059 Lower arm $77.66 1 usually ships 1-5 days
20 275-0060 Flange bushing .5b .62d .38l stainless steel $39.49 1 usually ships 5-16 days
21 275-0061 Washer .64b 1.19d .06 flat nylon $6.38 1 usually ships 1-5 days
22 175-7120 Screw M8 x 1.25 x 50mm hex $3.96 1 usually ships 5-16 days
23 275-0062 Flange sleeve .32b 1/.49d .4l stainless steel $2.97 4 usually ships 1-5 days
24 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 4 ships same day
25 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
26 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
27 175-0637 Clevis pin $3.30 1 usually ships 5-16 days
28 175-3321 Rod end right side $41.80 2 usually ships 5-16 days
29 275-0063 Threaded 2 end rod .38-24 7l left hand hex $55.22 2 usually ships 1-5 days
30 999-1156 Washer M12-.7 nylon $3.96 4 ships same day
31 175-3320 Rod end left side $41.80 2 usually ships 5-16 days
32 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
33 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
34 999-0032 Washer 3/8 USS flat plain finish $2.42 6 ships same day
35 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 4 ships same day
36 275-0064 Prop rod bracket $51.26 1 usually ships 1-5 days
37 275-0065 TUBE, 0.34ID 0.44OD 00.3L, SS (Tennant Industrial) $18.20 1 usually ships 5-16 days
38 275-8203 Molding $44.22 1 usually ships 1-5 days
39 275-0066 Screw M8-1.25 x 80mm hex head 8.8 $3.96 1 usually ships 1-5 days
