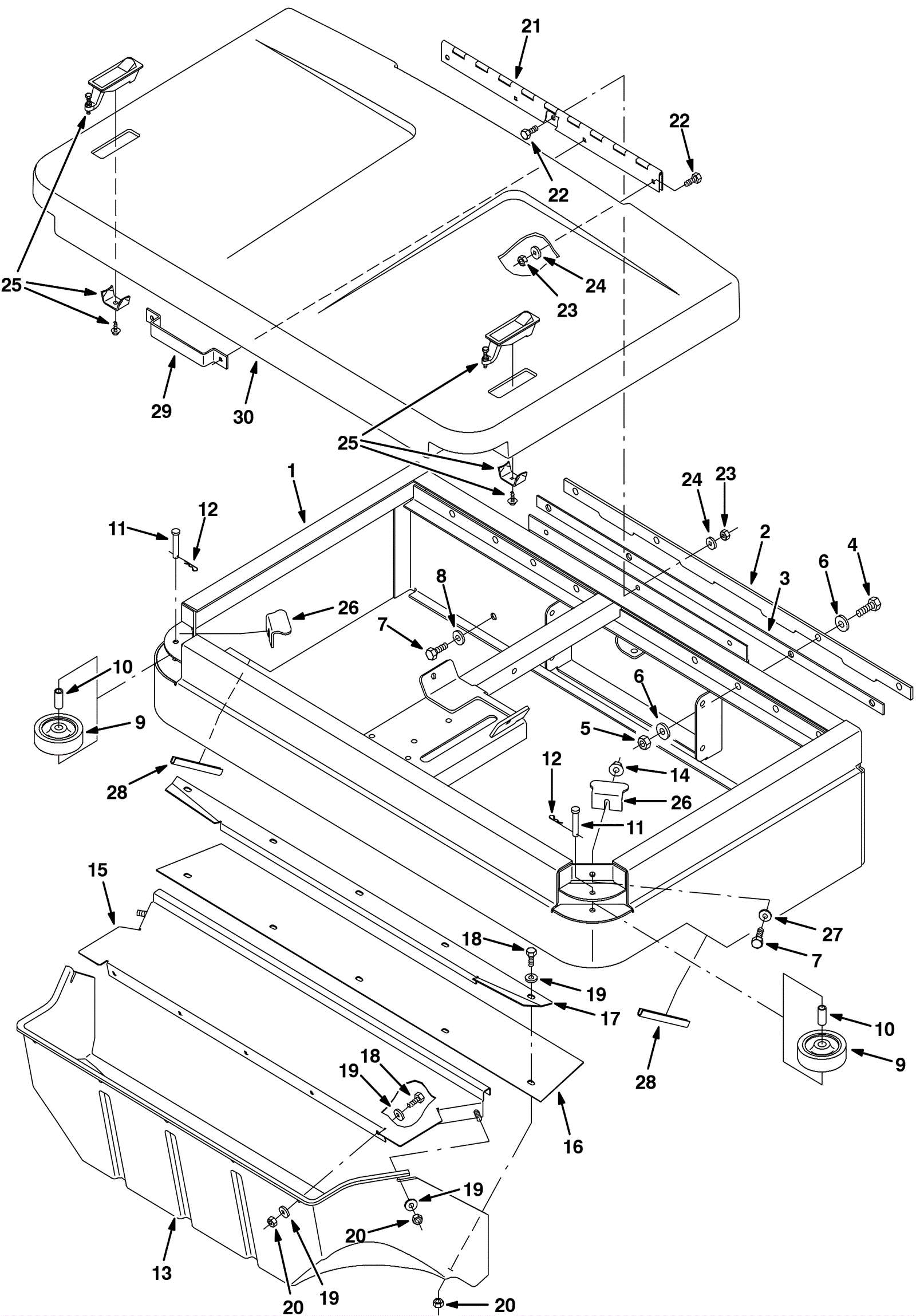

T15 Pre-Sweep Frame and Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7220 Pre-sweep frame weldment (Tennant Industrial) $1,163.99 1 usually ships 1-5 days
2 275-7221 Clamp plate (Tennant Industrial) $32.57 1 usually ships 1-5 days
3 275-7222 Clamp plate (Tennant Industrial) $35.40 1 usually ships 1-5 days
4 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $3.96 4 usually ships 1-5 days
5 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 4 ships same day
6 999-0120 Washer 3/8 SAE flat $0.99 8 ships same day
7 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
8 999-1407 Washer 5/16 belleville $3.04 2 ships same day
9 175-3156 Bumper wheel $15.18 2 usually ships 5-16 days
10 175-3157 Sleeve .318 x .437 x 1.06 inch $6.27 2 usually ships 5-16 days
11 275-0041 Clevis pin 5/16 x 1 3/4 inch $3.30 2 usually ships 1-5 days
12 175-7107 Cotter hair pin $2.42 2 usually ships 5-16 days
13 275-7223 Hopper (Tennant Industrial) $506.01 1 usually ships 1-5 days
14 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
15a 275-7224 Hopper cover (Tennant Industrial) $225.28 1 (electric) usually ships 1-5 days
15b 275-0043 Hopper cover (OBSOLETE) $149.93 1 (gas/lpg) usually ships 5-16 days
16 275-0044 Neoprene skirt .06 4.69w 33.56l 05SL $34.87 1 usually ships 5-16 days
17 275-0045 Hopper lip retainer (OBSOLETE) $54.45 1 usually ships 5-16 days
18 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 10 ships same day
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 17 ships same day
20 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 12 ships same day
21 275-0046 Hinge .18 pin .06 2.5w 19l $70.73 1 usually ships 1-5 days
22 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 7 ships same day
23 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 7 ships same day
24 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
25 275-0047 Latch $67.21 2 usually ships 5-16 days
26 275-0048 Latch strike angle $11.99 2 usually ships 1-5 days
27 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
28 275-8203 Molding $44.22 1 usually ships 1-5 days
29 275-0050 Cover bracket $24.53 1 usually ships 1-5 days
30 275-7225 Cover (Tennant Industrial) $462.59 1 usually ships 1-5 days
