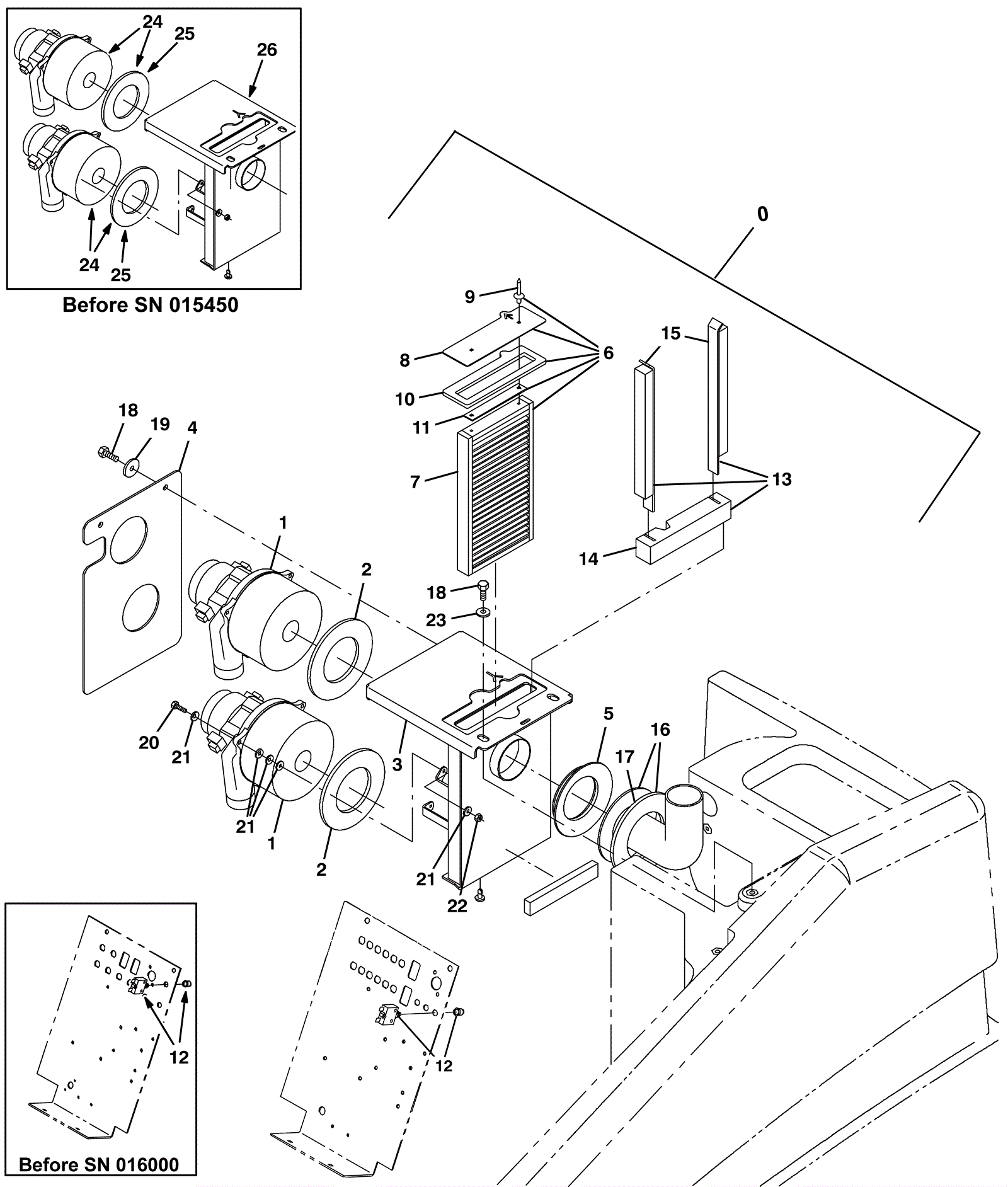

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
275-7200
|
Dual vacuum fan kit (Tennant Industrial) |
$2,605.20
|
1 |
(includes 1-23) |
usually ships 1-5 days |
1a |
475-3870
|
FAN, VACUUM, 5.7D, 036VDC, 3 STAGE[PKRD] |
$256.52
|
2 |
(includes 1b-1c) (after SN 015449) |
usually ships 5-16 days |
1b |
275-5816
|
Carbon brush kit (pkg of 2) |
$30.25
|
1 |
(after SN 015449) |
usually ships 5-16 days |
1c |
175-6954
|
Cooling fan cover |
$18.59
|
1 |
(after SN 015449) |
usually ships 5-16 days |
2 |
175-4200
|
SEAL, RBR, CLSD, 0.375, 5.0D 2.5H (Tennant Industrial) |
$9.52
|
1 |
(after SN 015449) |
usually ships 5-16 days |
3 |
275-7201
|
Fan bracket weldment |
$522.06
|
1 |
(after SN 015449) |
usually ships 1-5 days |
4 |
175-9714
|
Dual fan skirt |
$22.44
|
1 |
|
usually ships 1-5 days |
5 |
175-9558
|
Fan seal |
$22.66
|
1 |
|
usually ships 5-16 days |
6 |
175-9565
|
Panel filter assembly |
$98.78
|
1 |
(includes 7-11) |
ships same day |
7 |
175-9566
|
Scrubber panel filter |
$90.75
|
1 |
|
usually ships 5-16 days |
8 |
275-7163
|
Top plate (Tennant Industrial) |
$18.20
|
1 |
|
usually ships 5-16 days |
9 |
175-9568
|
Rivet 3/16-15/32 x 3/8 blind aluminum |
$4.29
|
2 |
|
usually ships 5-16 days |
10 |
175-9569
|
Filter seal |
$5.28
|
1 |
|
usually ships 5-16 days |
11 |
175-9570
|
Filter spacer plate |
$17.71
|
1 |
|
usually ships 5-16 days |
12a |
175-0844
|
CIRCUITBREAKER, 50.0A (Tennant Industrial) |
$56.11
|
1 |
|
usually ships 5-16 days |
12b |
175-0843
|
40amp circuitbreaker |
$31.57
|
1 |
|
ships same day |
13 |
175-9716
|
Modified vacuum fan and panel filter seal kit |
$48.73
|
1 |
(includes 14-15) |
usually ships 1-5 days |
14 |
175-9717
|
HD filter 1.41 closed rubber seal |
$16.72
|
1 |
|
usually ships 5-16 days |
15 |
175-9573
|
SEAL ASSY, VACFAN (Tennant Industrial) |
$56.45
|
2 |
|
usually ships 1-5 days |
16 |
275-9873
|
Elbow duct kit (Tennant Industrial) |
$267.03
|
2 |
(includes 17) |
usually ships 1-5 days |
17 |
164-0881
|
Vacuum motor gasket |
$13.42
|
2 |
|
ships same day |
18 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
$0.99
|
4 |
|
ships same day |
19 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
20 |
175-3382
|
Bolt M5-.8 x 25mm hex head stainless steel |
$3.30
|
6 |
|
usually ships 5-16 days |
21 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
30 |
|
ships same day |
22 |
999-0740
|
Nut M5-.8 hex stainless steel |
$0.99
|
6 |
|
ships same day |
23 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
24 |
275-5200
|
36V 3 stage vacuum motor kit |
$361.24
|
2 |
(includes 25) (before SN 015450) |
usually ships 3-26 days |
25 |
164-0881
|
Vacuum motor gasket |
$13.42
|
1 |
(before SN 015450) |
ships same day |
26 |
275-7202
|
Fan bracket weldment (Tennant Industrial) |
$255.01
|
1 |
(before SN 015450) |
usually ships 1-5 days |
