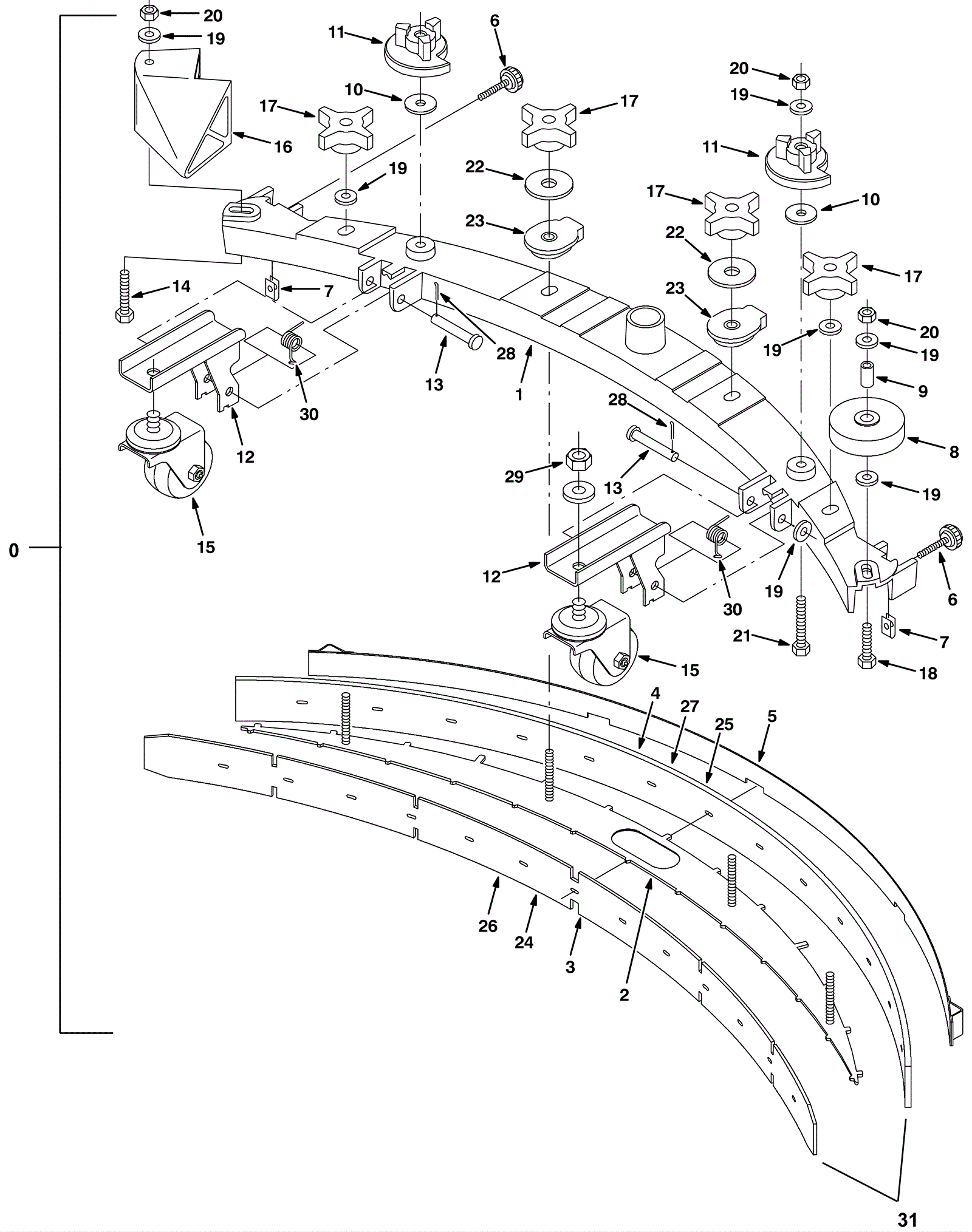

T15 Rear Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-9616 36 inch (900mm) squeegee assembly (OBSOLETE) $1,116.61 1 (includes 1-23) usually ships 10-16 days
1 275-6280 36 inch (900mm) squeegee weldment $126.39 1 ships same day
2 175-9617 PLATE, RETAINER, BLADE, 36.0INCH /900MM (Tennant Industrial $174.03 1 usually ships 10-16 days
3 175-9049 Squeegee blade 47.41 inch gum rubber front (red) $38.50 1 ships same day
4 175-2033 Squeegee blade 36 inch linatex rear (red) $63.36 1 ships same day
5 175-2318 36 inch (900mm) squeegee band weldment $85.91 1 usually ships 10-16 days
6 175-2180 Knob $6.49 2 ships same day
7 175-2291 Nut 1/4-20 speed clip $4.36 2 ships same day
8a 175-2181 Wheel $11.66 1 (OEM) ships same day
8b 991-3030 Wheel $6.17 1 (NON-OEM) ships same day
9 175-2182 Sleeve $4.22 1 ships same day
10 175-2309 Washer $5.28 2 ships same day
11 175-2183 Adjustment cam $9.02 2 ships same day
12 175-3472 Squeegee wheel bracket weldment $55.77 2 usually ships 10-16 days
13 175-2185 Clevis pin $4.36 2 ships same day
14 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 1 ships same day
15 175-3473 2.5 inch caster wheel $123.31 2 usually ships 10-16 days
16 175-9618 Squeegee bumper $100.32 1 usually ships 10-16 days
17 175-2208 Plastic star knob $5.28 4 ships same day
18 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 1 ships same day
19 999-9097 Washer M8 flat stainless steel $0.99 9 ships same day
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
21 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 2 ships same day
22 175-3470 Washer .53b 1.88d .12 steel plated $4.88 2 usually ships 10-16 days
23 175-9619 Squeegee mounting ring $13.75 2 ships same day
24a 175-9620 Squeegee blade kit rubber 36 inch $100.54 1 (includes 24b-25) ships same day
24b 175-9621 Squeegee blade 47.41 inch linatex front (red) $31.68 1 usually ships 10-16 days
25 175-2170 Squeegee blade 49 3/8 inch gum rubber rear (tan) $56.76 1 ships same day
26a 175-2171 Squeegee blade kit 36 inch urethane ribbed (clear) $218.35 1 (includes 26b-27) ships same day
26b 175-2172 Squeegee blade 47.41 inch urethane ribbed front (clear) $74.91 1 usually ships 10-16 days
27 175-2173 Squeegee blade 36 inch urethane ribbed rear (clear) $98.34 1 usually ships 10-16 days
28 175-6176 Cotter pin $3.30 2 ships same day
29 999-0202 Nut 1/2-13 hex plain finish $0.99 2 ships same day
30 175-2273 Torsion spring $5.28 2 ships same day
