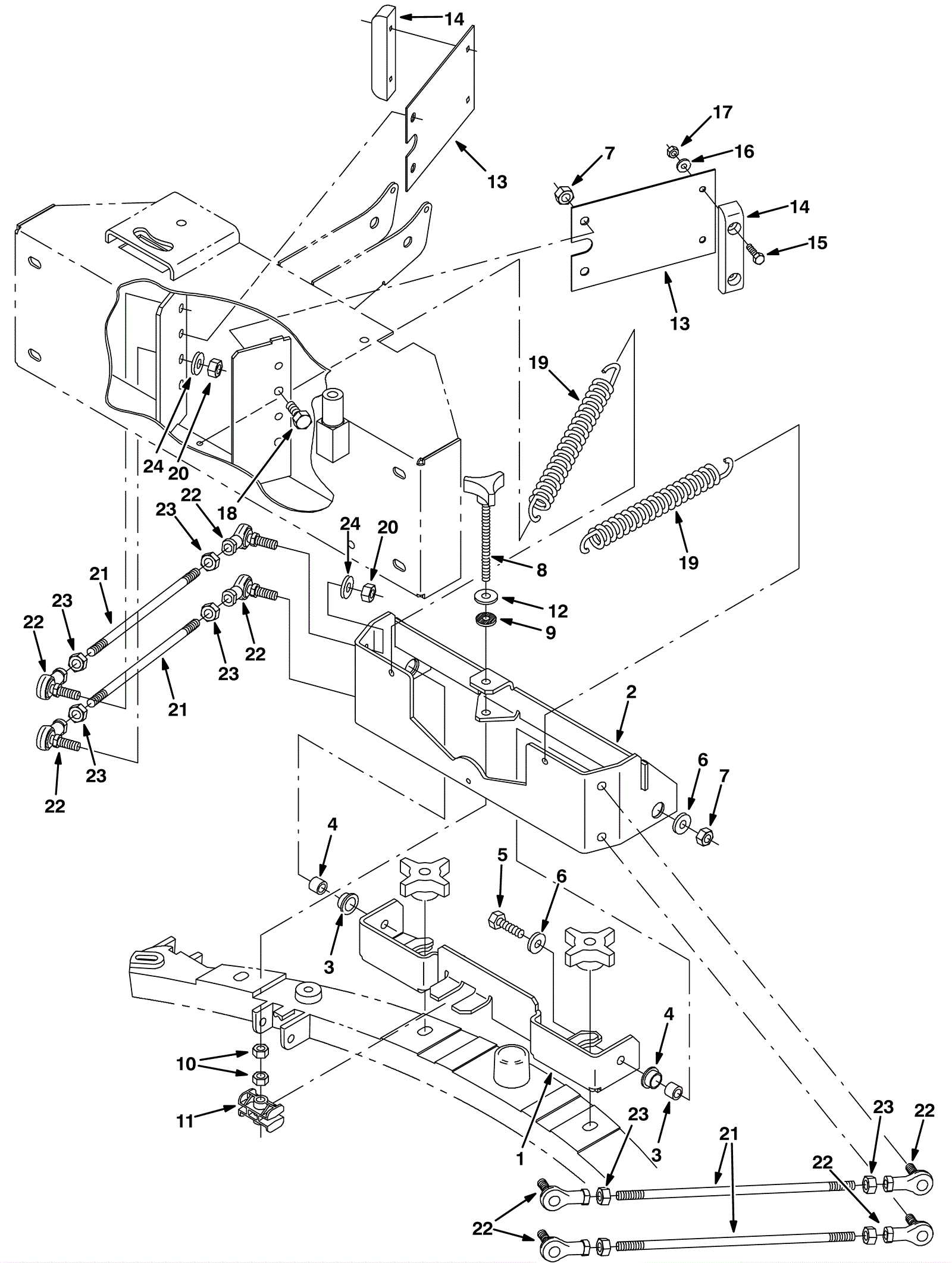

T15 Rear Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-9612 Pivot bracket weldment $284.13 1 ships same day
2 175-9614 BRACKET WLDT, LIFT, SQGE (Tennant Industrial) $246.55 1 usually ships 10-16 days
3 175-3460 Flanged bushing $10.78 2 usually ships 10-16 days
4 175-9606 Round tube $24.97 2 usually ships 10-16 days
5 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
7 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 6 ships same day
8 175-3461 Knob $29.70 1 usually ships 10-16 days
9 175-2896 Washer 5/16 $4.09 1 usually ships 10-16 days
10 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
11 175-2301 Squeegee adjustment block $13.09 1 ships same day
12 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
13 175-9608 Centering spring $53.68 2 usually ships 10-16 days
14 175-3463 Centering block (OBSOLETE) $27.61 2 usually ships 10-16 days
15 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
16 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
18 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
19 175-9609 Tension spring $26.84 2 usually ships 10-16 days
20 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 8 ships same day
21 175-9615 ROD, THRD, 2 END, .38-24 11.3L (Tennant Industrial) $39.01 4 usually ships 10-16 days
22 175-3321 Rod end right side $42.68 8 usually ships 10-16 days
23 999-0169 Nut 3/8-24 hex jam plain finish $0.99 8 ships same day
24 175-4494 Washer M10 $4.09 8 usually ships 10-16 days
