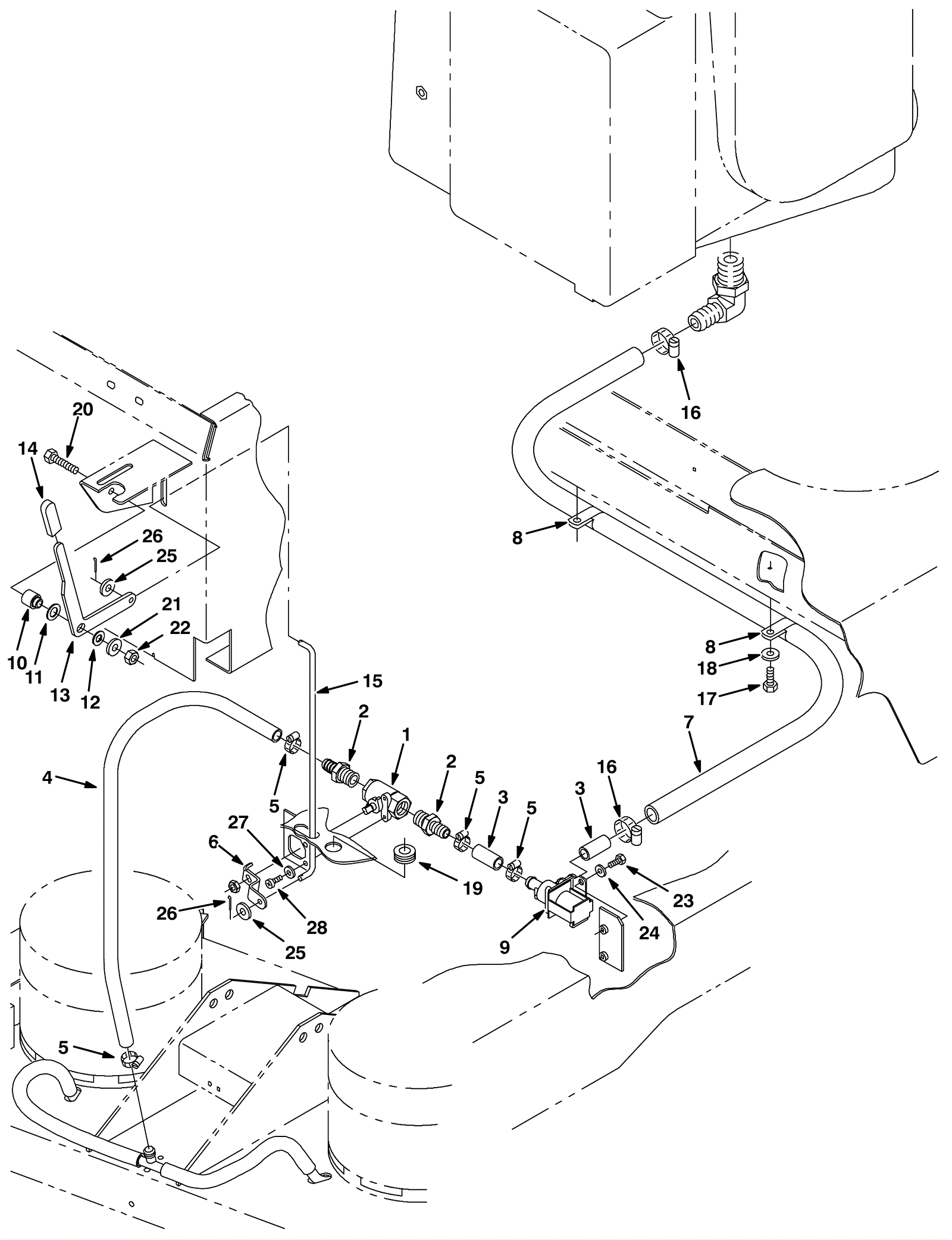

T15 Solution Control Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-3425 Manual valve $125.18 1 usually ships 10-16 days
2 175-6924 Plastic strainer fitting $6.49 2 usually ships 10-16 days
3 175-5399 Clear pvc hose 1/2 x 11/16 x 1 1/2 $5.28 2 usually ships 10-16 days
4 175-5229 HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria $34.67 1 usually ships 1-5 days
5 175-6081 Hose clamp $4.84 4 ships same day
6 175-9586 Arm with stop $103.84 1 usually ships 10-16 days
7 175-9587 Clear vinyl hose .75id $31.90 1 usually ships 1-5 days
8 175-2260 P clamp $5.28 2 usually ships 10-16 days
9a 175-3431 Solenoid valve $102.85 1 (includes 9b) ships same day
9b 175-8698 Solenoid valve rebuild kit (internal parts) $124.19 1 ships same day
10 175-3434 Lever sleeve $16.61 1 usually ships 1-5 days
11 175-3354 Thrust washer $10.67 1 usually ships 10-16 days
12 175-3435 Washer 25/64 x 3/4d x 1/16 nylon $4.49 1 usually ships 1-5 days
13 275-7170 Control lever (Tennant Industrial) $19.50 1 usually ships 1-5 days
14 175-2166 Handle grip $5.50 1 usually ships 10-16 days
15 175-9589 Valve rod $50.71 1 usually ships 1-5 days
16 175-0199 Hose clamp $7.15 2 usually ships 10-16 days
17 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
19 175-9590 Rubber grommet $5.28 1 usually ships 1-5 days
20 999-0470 Bolt M8-1.25 x 45mm hex head part thread zinc $0.99 1 ships same day
21 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
23 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
24 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
26 175-3272 Cotter pin $3.30 2 usually ships 10-16 days
27 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
28 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
