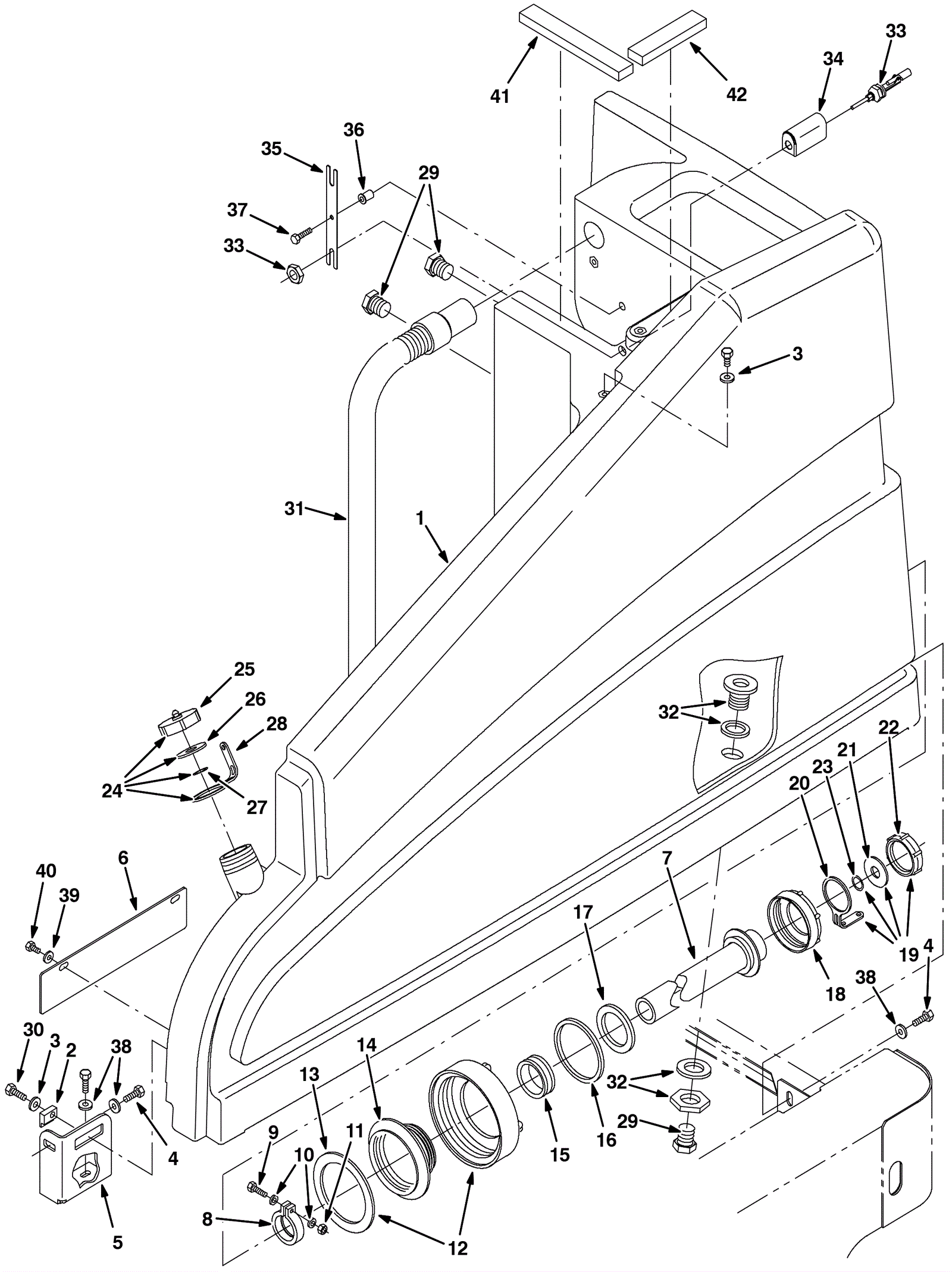

T15 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9872 Recovery tank (Tennant Industrial) $3,192.97 1 usually ships 1-5 days
2 175-9546 Tank mounting clamp $25.30 1 usually ships 1-5 days
3 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
4 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
5 275-7159 Bracket (Tennant Industrial) $45.84 1 usually ships 1-5 days
6 275-7160 Cover plate (Tennant Industrial) $19.34 1 usually ships 1-5 days
7a 175-9549 Drain hose and cap assembly $295.35 1 (includes 7b-23) usually ships 10-16 days
7b 175-0708 HOSE ASSY, DRAIN (Tennant Industrial) $65.68 1 usually ships 10-16 days
8 175-3381 Plastic hose clamp 1.6 ID x .62 $28.93 1 usually ships 10-16 days
9 175-3382 Bolt M5-.8 x 25mm hex head stainless steel $4.09 1 usually ships 10-16 days
10 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
11 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
12 175-3384 Tank cap $41.03 1 (includes 13) usually ships 10-16 days
13 275-4663 Gasket $9.13 1 usually ships 10-16 days
14 175-3386 Insert cover $17.16 1 usually ships 10-16 days
15 175-3387 Seal $30.03 1 usually ships 10-16 days
16 175-3388 Drain cap gasket $7.48 1 usually ships 10-16 days
17 175-3389 Lid gasket $8.14 1 usually ships 10-16 days
18 175-3390 Drain tank cap 3.85 thread pye $15.51 1 usually ships 10-16 days
19 175-3391 Drain cap kit $27.39 1 (includes 20-23) usually ships 10-16 days
20 175-3392 Strap $9.57 1 usually ships 10-16 days
21 175-3393 Cap gasket $5.28 1 usually ships 10-16 days
22 175-3394 Drain tank cap 2.25 thread pye $9.35 1 usually ships 10-16 days
23 175-3395 3/4 ID retaining extension ring stainless steel $6.05 1 usually ships 10-16 days
24 175-3391 Drain cap kit $27.39 1 (includes 25-28) usually ships 10-16 days
25 175-3394 Drain tank cap 2.25 thread pye $9.35 1 usually ships 10-16 days
26 175-3393 Cap gasket $5.28 1 usually ships 10-16 days
27 175-3395 3/4 ID retaining extension ring stainless steel $6.05 1 usually ships 10-16 days
28 175-3392 Strap $9.57 1 usually ships 10-16 days
29 175-2247 Plastic fitting $9.35 3 ships same day
30 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
31 175-9551 Vacuum hose and cuff assembly $51.92 1 usually ships 10-16 days
32 175-9552 Plastic fitting $22.00 1 ships same day
33 175-9554 Float switch $79.86 1 ships same day
34 275-4664 Float switch protector bracket $22.00 1 usually ships 1-5 days
35 275-4665 Switch plate $8.14 1 usually ships 1-5 days
36 175-5424 Nut 1/4-20 isolator wall thick $5.50 1 usually ships 10-16 days
37 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
38 175-7920 Washer M8 flat stainless steel $4.09 4 ships same day
39 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
40 999-1220 Screw M5-.8 x 12mm hex head stainless steel $0.99 2 ships same day
41 275-6040 SEAL, CELR RBR, .50, 01.00W 11.50L, ADH (Tennant Industrial $25.51 1 usually ships 10-16 days
42 275-6041 SEAL, CELR RBR, .50, 01.00W 07.00L, ADH (Tennant Industrial $24.34 1 usually ships 10-16 days
