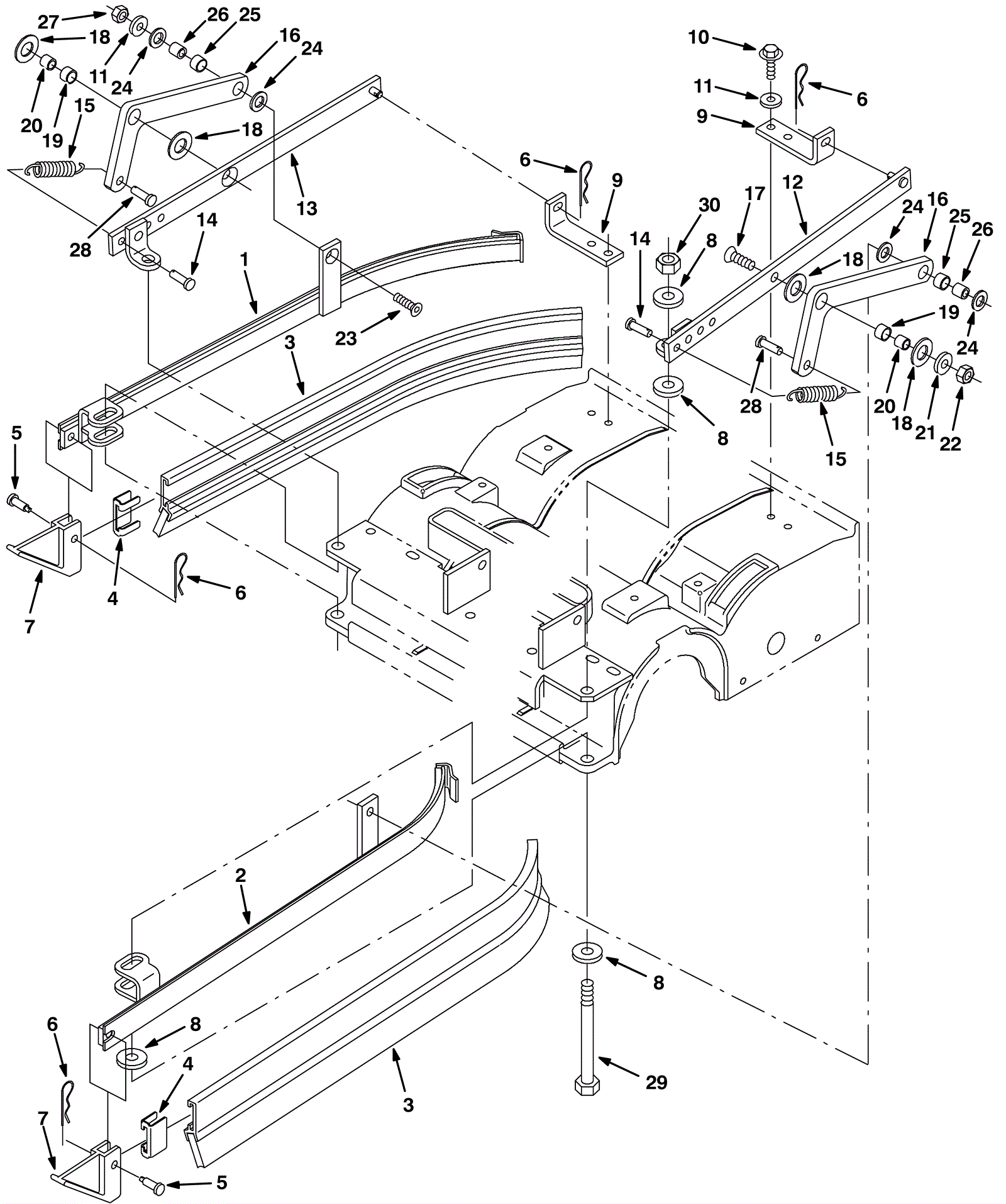

T15 Squeegee Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 175-9539 Right cylindrical squeegee frame weldment 36 inch $252.67 1 usually ships 10-16 days
2 175-5406 Squeegee frame weldment left cylindrical 28 inch $257.07 1 usually ships 10-16 days
3a 175-3343 Side squeegee blade linatex $65.78 2 ships same day
3b 275-9740 Side squeegee blade gum rubber $52.36 2 ships same day
3c 994-0106 Side squeegee blade gum rubber $30.96 2 (non-OEM) ships same day
4 175-3357 Squeegee blade retainer $11.22 2 ships same day
5 175-3351 Clevis pin $4.09 2 ships same day
6 175-2117 Cotter pin $4.88 4 ships same day
7 475-3313 GUIDE, SQGE, SIDE, YELLOW $17.82 2 usually ships 10-16 days
8 175-5407 Washer M12 flat stainless steel $3.96 8 usually ships 10-16 days
9 175-9540 Squeegee mounting angle bracket $32.23 2 usually ships 1-5 days
10 175-2888 Bolt M8-1 1/4 x 25mm hex head $4.88 4 usually ships 10-16 days
11 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
12 175-9541 Left squeegee mounting bar weldment 36 inch $85.25 1 usually ships 1-5 days
13 175-9542 Right squeegee mounting bar weldment 36 inch $93.94 1 usually ships 1-5 days
14 175-3351 Clevis pin $4.09 2 ships same day
15 175-3345 Extension spring $9.35 2 ships same day
16 175-3348 Bell crank $56.98 2 usually ships 10-16 days
17 175-9543 SCREW, FLT, SOC, M10 X 1.50 X 30, 10.9 (Tennant Industrial) $15.00 2 usually ships 1-5 days
18 175-3347 Washer .61 thrust $5.50 4 usually ships 10-16 days
19 175-3349 Sleeved bushing $12.65 2 ships same day
20 175-9532 Bearing sleeve 5/8 x 33/64 $17.16 2 usually ships 10-16 days
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
22 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
23 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 2 ships same day
24 175-3354 Thrust washer $9.90 2 usually ships 10-16 days
25 175-3355 Sleeved bushing $6.82 2 usually ships 10-16 days
26 175-9533 Sleeve 0318-.496 x .515 stainless steel $6.71 2 usually ships 10-16 days
27 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
28 175-3344 Clevis pin $7.70 2 usually ships 10-16 days
29 275-4662 Screw 1/2-13 x 5 1/2 hex head $7.70 2 usually ships 10-16 days
30 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
