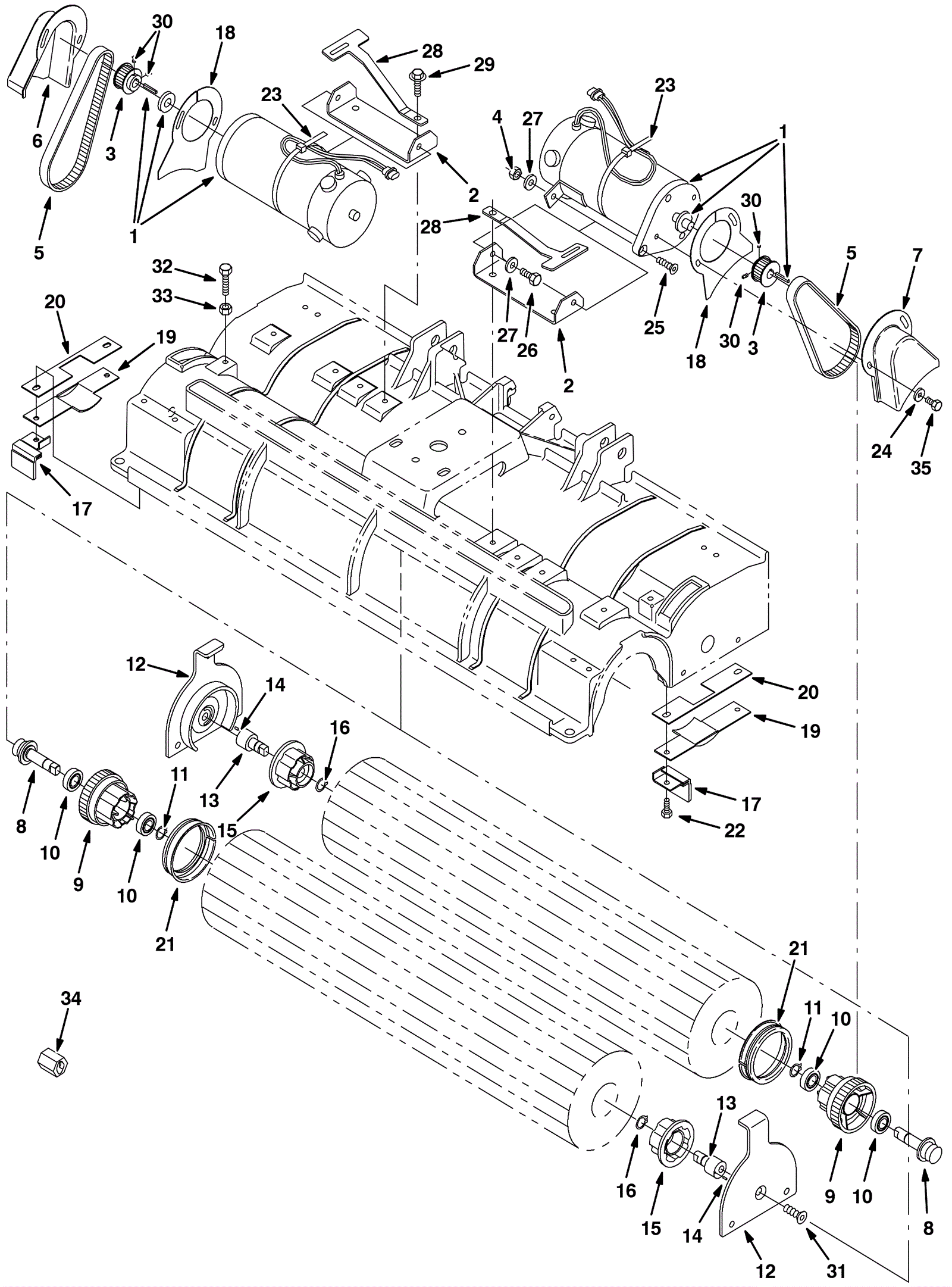

T15 Drive Motor Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 175-2056 Brush motor assembly $1,026.08 2 ships same day
2 175-2464 Mounting motor bracket $20.02 2 usually ships 10-16 days
3 175-2465 Drive sprocket $69.30 2 usually ships 10-16 days
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
5 175-2034 Cogged drive belt $104.83 2 usually ships 10-16 days
6 175-2490 Right belt guard $60.06 1 usually ships 10-16 days
7 175-2491 Left belt guard $60.06 1 ships same day
8a 175-2468 Brush drive plug assembly $219.23 2 (includes 8b-11) usually ships 10-16 days
8b 175-2469 Shaft drive plug $97.68 1 ships same day
9 175-2470 Brush drive plug $102.41 1 ships same day
10 175-2471 Ball bearing $19.25 2 ships same day
11 175-2472 Retaining ring $3.04 1 usually ships 10-16 days
12 175-2474 Brush door $54.01 2 ships same day
13a 175-2475 Idler plug assembly $109.56 2 (includes 13b-16) usually ships 10-16 days
13b 175-2476 Idler plug shaft $74.69 1 usually ships 10-16 days
14 175-2477 Roll pin $3.04 1 usually ships 10-16 days
15 175-2478 Brush idler plug $28.93 1 ships same day
16 175-2472 Retaining ring $3.04 1 usually ships 10-16 days
17 175-2486 Water deflector $42.57 2 usually ships 10-16 days
18 175-2489 Belt shield $13.20 2 usually ships 10-16 days
19 175-2487 Shield bracket $19.03 2 usually ships 10-16 days
20 175-2488 Shield gasket $5.28 2 usually ships 10-16 days
21 175-2495 Seal ring $57.75 2 ships same day
22 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
23 175-2226 Nylon wire tie $4.09 2 ships same day
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
25 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 2 ships same day
26 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
27 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
28 175-2482 Door spring $26.62 2 usually ships 10-16 days
29 175-2888 Bolt M8-1 1/4 x 25mm hex head $4.88 4 usually ships 10-16 days
30 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
31 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok $4.88 2 usually ships 10-16 days
32 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
33 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
34 275-1209 Shaft removal tool $308.99 1 usually ships 10-16 days
35 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.17 4 usually ships 1-5 days
