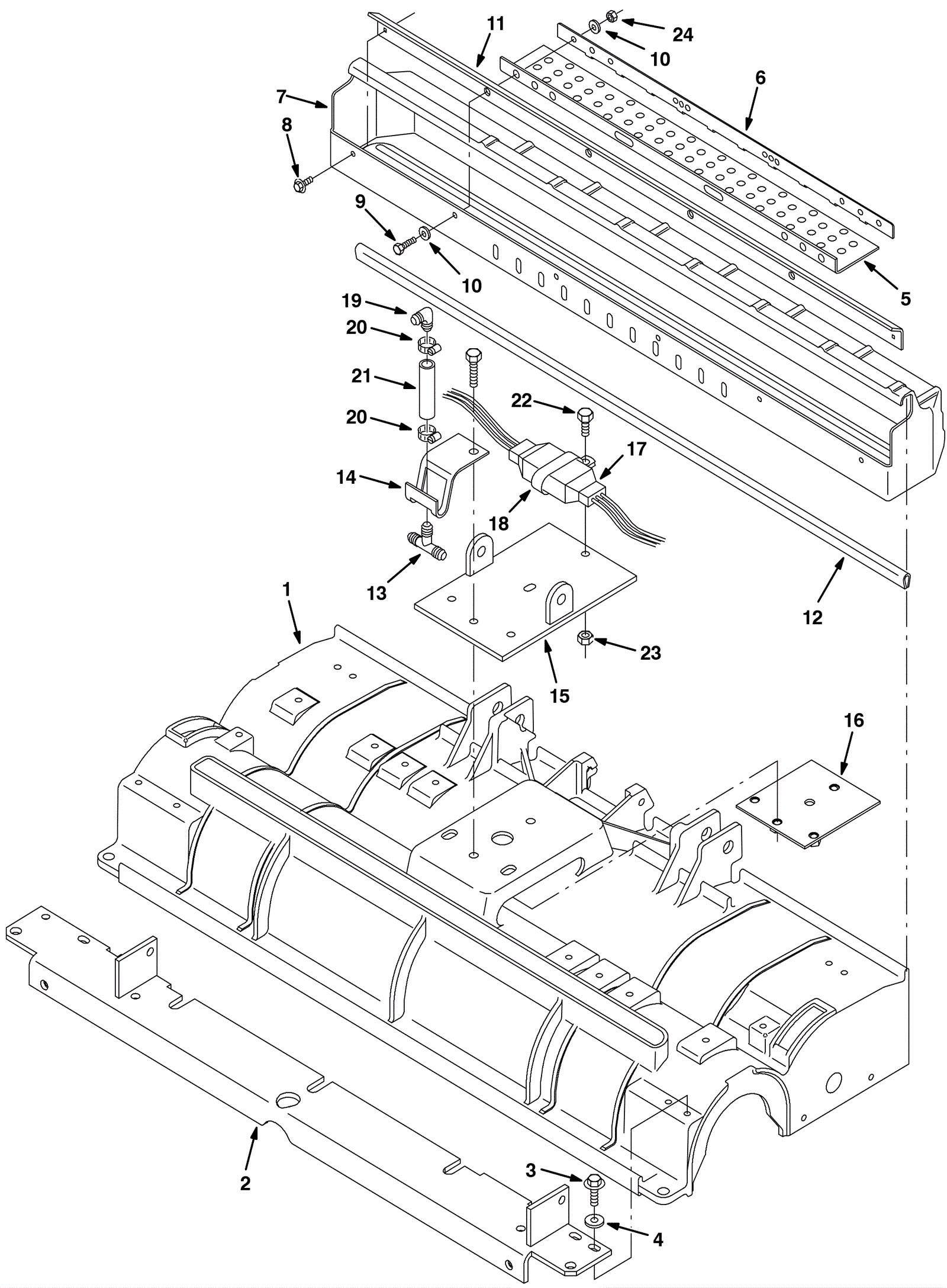

T15 Frame Assembly - Cylindrical

#PartDescriptionPriceReqNotesAvailability
1 275-1251 36 inch (900mm) cylindrical housing $2,600.95 1 usually ships 10-16 days
2 175-9536 Cylindrical head mounting bracket weldment $257.07 1 usually ships 10-16 days
3 175-2888 Bolt M8-1 1/4 x 25mm hex head $4.88 4 usually ships 10-16 days
4 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
5a 175-2498 36 inch debris tray kit $436.37 1 (includes 5b-11) usually ships 10-16 days
5b 175-2517 Skirt $35.64 1 usually ships 10-16 days
6 175-2399 Debris tray skirt $44.22 1 usually ships 10-16 days
7 175-2499 36 inch debris tray $293.70 1 usually ships 10-16 days
8 175-3298 Bolt M6-1 x 12mm hex head $4.09 2 ships same day
9 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
11 175-2500 36 inch debris tray lip $44.22 1 usually ships 1-5 days
12 175-2501 Channel $39.16 1 usually ships 1-5 days
13 175-3329 Plastic tee fitting $6.05 1 usually ships 10-16 days
14 175-2521 Hose guide bracket $23.21 1 usually ships 10-16 days
15 175-9537 Scrub tool mounting plate weldment $123.09 1 usually ships 1-5 days
16 175-5398 Tool lift mounting plate $36.41 1 usually ships 10-16 days
17 175-2510 Cylindrical head wiring harness $141.24 1 usually ships 10-16 days
18 175-6894 CLAMP, CABLE, STL, 1.0X2.0X0.62W, 1HOLE (Tennant Industrial $8.84 1 usually ships 1-5 days
19 175-5233 Plastic fitting $7.59 1 usually ships 10-16 days
20 175-6081 Hose clamp $4.84 2 ships same day
21 175-4976 1 foot hose $23.65 1 usually ships 10-16 days
22 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
23 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 1 ships same day
24 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
