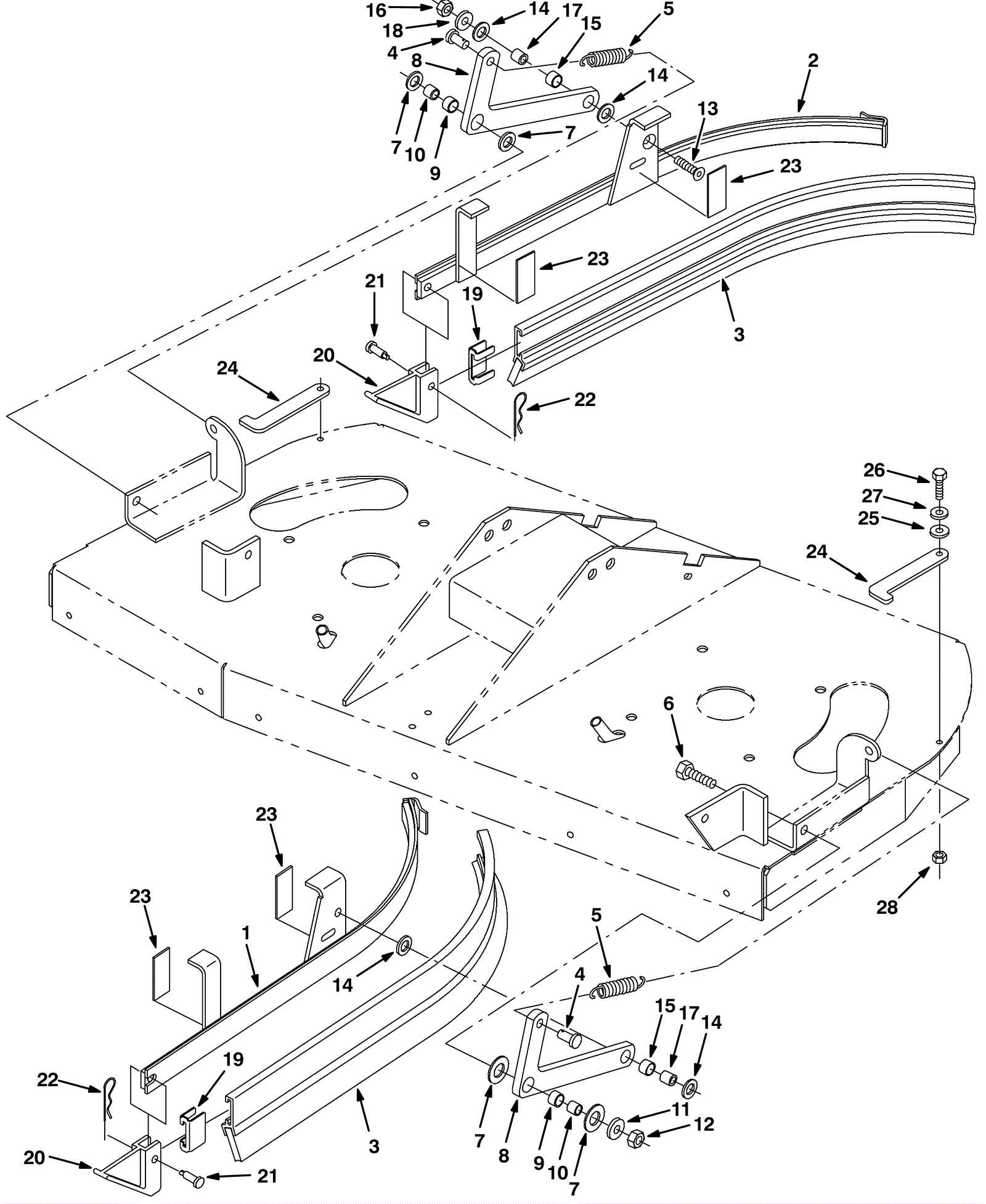

T15 Squeegee Assembly - Disk

#PartDescriptionPriceReqNotesAvailability
1 175-9530 Left disk squeegee bladeholder weldment $188.65 1 usually ships 10-16 days
2 175-9531 Right disk squeegee bladeholder weldment $195.58 1 usually ships 10-16 days
3a 175-3343 Side squeegee blade linatex $70.40 2 ships same day
3b 275-9740 Side squeegee blade gum rubber $56.10 2 ships same day
3c 994-0106 Side squeegee blade gum rubber $30.96 2 (non-OEM) ships same day
4 175-3344 Clevis pin $8.25 2 usually ships 10-16 days
5 175-3345 Extension spring $10.01 2 ships same day
6 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
7 175-3347 Washer .61 thrust $5.50 4 usually ships 10-16 days
8 175-3348 Bell crank $61.05 2 usually ships 10-16 days
9 175-3349 Sleeved bushing $13.64 2 usually ships 10-16 days
10 175-9532 Bearing sleeve 5/8 x 33/64 $18.37 2 usually ships 10-16 days
11 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
12 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
13 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
14 175-3354 Thrust washer $10.67 4 usually ships 10-16 days
15 175-3355 Sleeved bushing $7.37 2 usually ships 10-16 days
16 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
17 175-9533 Sleeve 0318-.496 x .515 stainless steel $7.26 2 usually ships 10-16 days
18 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
19 175-3357 Squeegee blade retainer $12.10 2 usually ships 10-16 days
20 475-3313 GUIDE, SQGE, SIDE, YELLOW $19.14 2 usually ships 10-16 days
21 175-3351 Clevis pin $4.49 2 ships same day
22 175-2117 Cotter pin $5.28 2 usually ships 10-16 days
23 175-9534 Wear strip $21.01 4 usually ships 10-16 days
24 175-9535 Side squeegee plate $20.13 2 usually ships 1-5 days
25 175-3187 Washer nylon $4.49 2 usually ships 10-16 days
26 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
28 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
