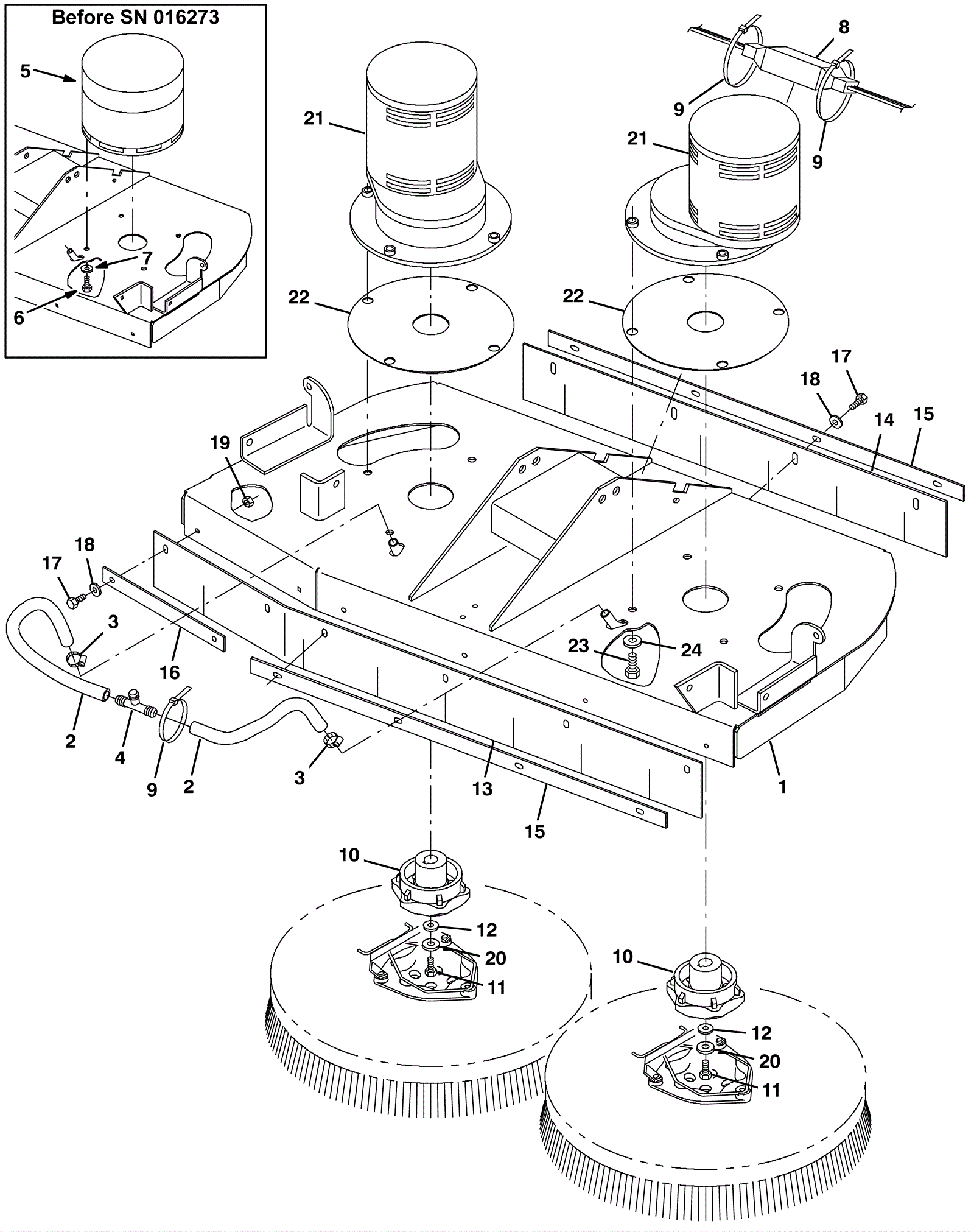

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-9522
|
Disk head weldment 36 inch (OBSOLETE) |
$743.27
|
1 |
|
usually ships 5-16 days |
2 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
$29.23
|
2 |
|
usually ships 5-16 days |
3 |
175-6081
|
Hose clamp |
$4.84
|
2 |
|
ships same day |
4 |
175-3329
|
Plastic tee fitting |
$5.83
|
1 |
|
usually ships 5-16 days |
5 |
175-3325
|
Brush motor kit |
$1,404.26
|
2 |
(before SN 016273) |
usually ships 5-16 days |
6 |
175-9524
|
Screw 3/8-16 x 5/8 hex head stainless steel |
$3.96
|
8 |
(before SN 016273) |
usually ships 1-5 days |
7 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
8 |
(before SN 016273) |
ships same day |
8 |
175-2440
|
Disk head wiring harness |
$144.54
|
1 |
|
usually ships 5-16 days |
9 |
175-2226
|
Nylon wire tie |
$3.30
|
6 |
|
ships same day |
10 |
175-9525
|
Brush drive hub |
$372.32
|
2 |
|
ships same day |
11 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
2 |
|
ships same day |
12 |
999-1407
|
Washer 5/16 belleville |
$3.04
|
2 |
|
ships same day |
13 |
175-9526
|
Skirt 12-3.75 x 37.62 6/.31 |
$27.83
|
1 |
|
usually ships 5-16 days |
14 |
175-9527
|
Skirt .12-3.75 x 29.12 4/.31 |
$21.01
|
1 |
|
usually ships 5-16 days |
15 |
175-9528
|
Left front skirt retainer strip |
$30.03
|
2 |
|
usually ships 5-16 days |
16 |
175-9529
|
Right front skirt retainer strip |
$22.99
|
1 |
|
usually ships 5-16 days |
17 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
$0.99
|
10 |
|
ships same day |
18 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
10 |
|
ships same day |
19 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$1.03
|
10 |
|
ships same day |
20 |
175-7920
|
Washer M8 flat stainless steel |
$3.30
|
2 |
|
ships same day |
21 |
175-3325
|
Brush motor kit |
$1,404.26
|
2 |
(includes 22 - 24) (after SN 016272) |
usually ships 5-16 days |
22 |
275-5343
|
Gasket (Tennant Industrial) |
$11.19
|
1 |
(after SN 016272) |
usually ships 5-16 days |
23 |
999-0493
|
Bolt 3/8-16 x 3/4 hex head stainless steel |
$0.99
|
4 |
(after SN 016272) |
ships same day |
24 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
4 |
(after SN 016272) |
ships same day |
N/S |
175-5293
|
Female connector |
$10.01
|
1 |
(after SN 016272) |
ships same day |
N/S |
175-5365
|
Female terminal |
$2.18
|
2 |
(after SN 016272) |
usually ships 1-5 days |
