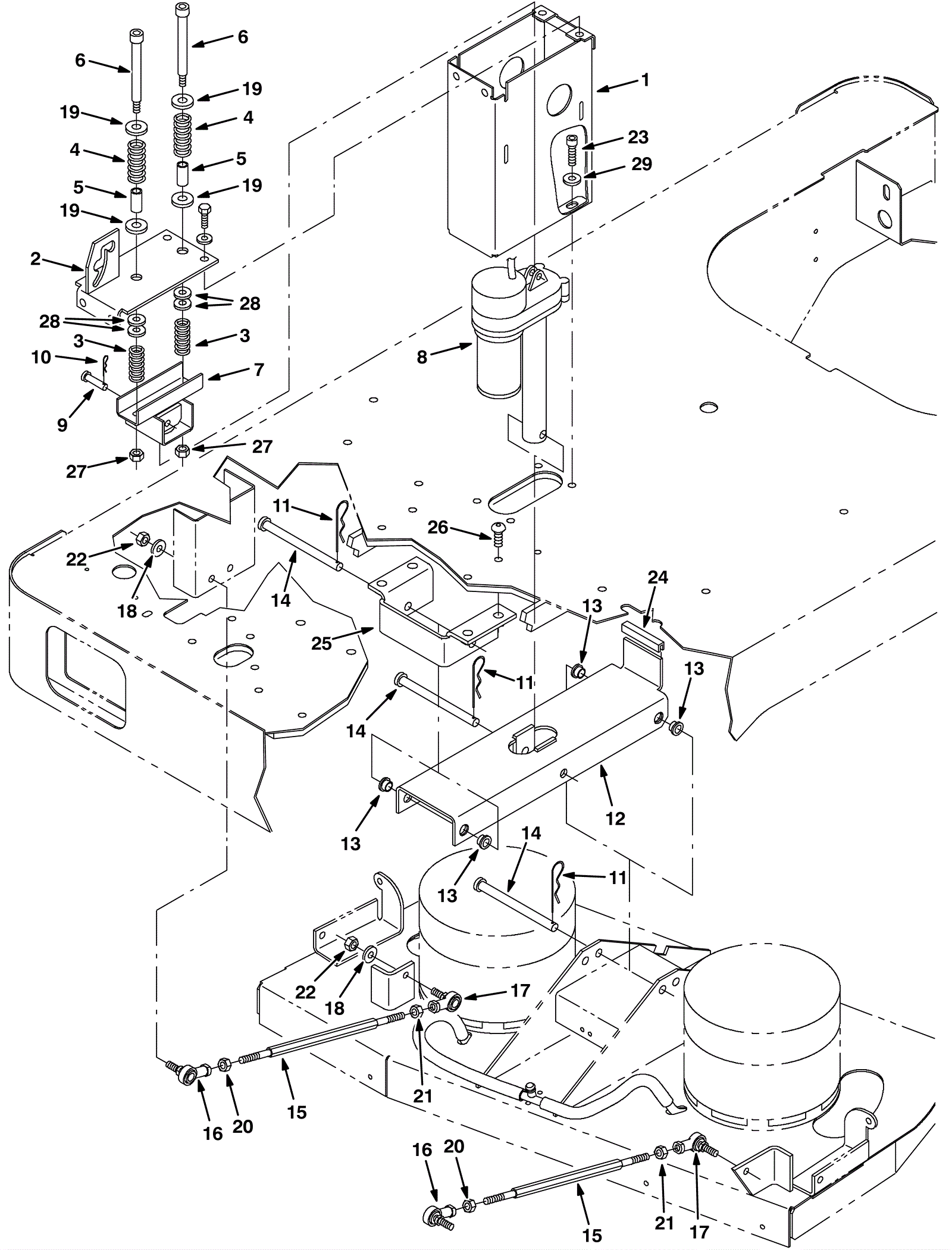

T15 Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9998 Actuator bracket (Tennant Industrial) $175.02 1 usually ships 1-5 days
3 175-3316 Compression spring $5.61 2 usually ships 1-5 days
4 175-3315 Compression spring $8.03 2 usually ships 1-5 days
5 175-2442 Sleeve $7.15 2 usually ships 5-16 days
6 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.01 2 usually ships 1-5 days
7 175-9516 Spring mounting and actuator channel weldment (TNT IND) $152.81 1 usually ships 1-5 days
8 175-3313 Actuator $479.71 1 usually ships 5-16 days
9 175-2592 Clevis Pin 0.37 D X 1.75 L $3.96 1 ships same day
10 175-2113 Cotter pin $2.42 1 ships same day
11 175-2106 Cotter hair pin $3.30 3 ships same day
12 175-9517 Tool lift channel weldment $222.42 1 usually ships 1-5 days
13 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
14 175-5332 Clevis pin 1/2 x 6 $9.13 3 usually ships 5-16 days
15 175-9518 Rod 3/8-24 x 5 threaded hex $89.32 2 usually ships 5-16 days
16 175-3321 Rod end right side $41.80 2 usually ships 5-16 days
17 175-3320 Rod end left side $41.80 2 usually ships 5-16 days
18 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
19 999-0114 Washer 1/2 SAE flat $0.99 4 ships same day
20 999-0169 Nut 3/8-24 hex jam plain finish $0.99 2 ships same day
21 999-0319 Nut 3/8-24 hex left hand plain finish $1.98 2 ships same day
22 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel $2.02 4 ships same day
23 175-9519 Screw M10-1.5 x 35 socket head $3.96 4 usually ships 1-5 days
24 175-3336 Rubber trim molding $17.49 1 usually ships 1-5 days
25 175-9520 BRACKET, LIFT, MTG (Tennant Industrial) $98.20 1 (after SN 005891) usually ships 1-5 days
26 175-9521 SCREW, BTN, M10 X 1.5 X 30, 10.9 NL (Tennant Industrial) $5.01 4 (after SN 005891) usually ships 1-5 days
27 175-6922 Nut 3/8 - 16 hex lock $3.30 2 usually ships 1-5 days
28 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
29 999-0032 Washer 3/8 USS flat plain finish $2.42 4 ships same day
