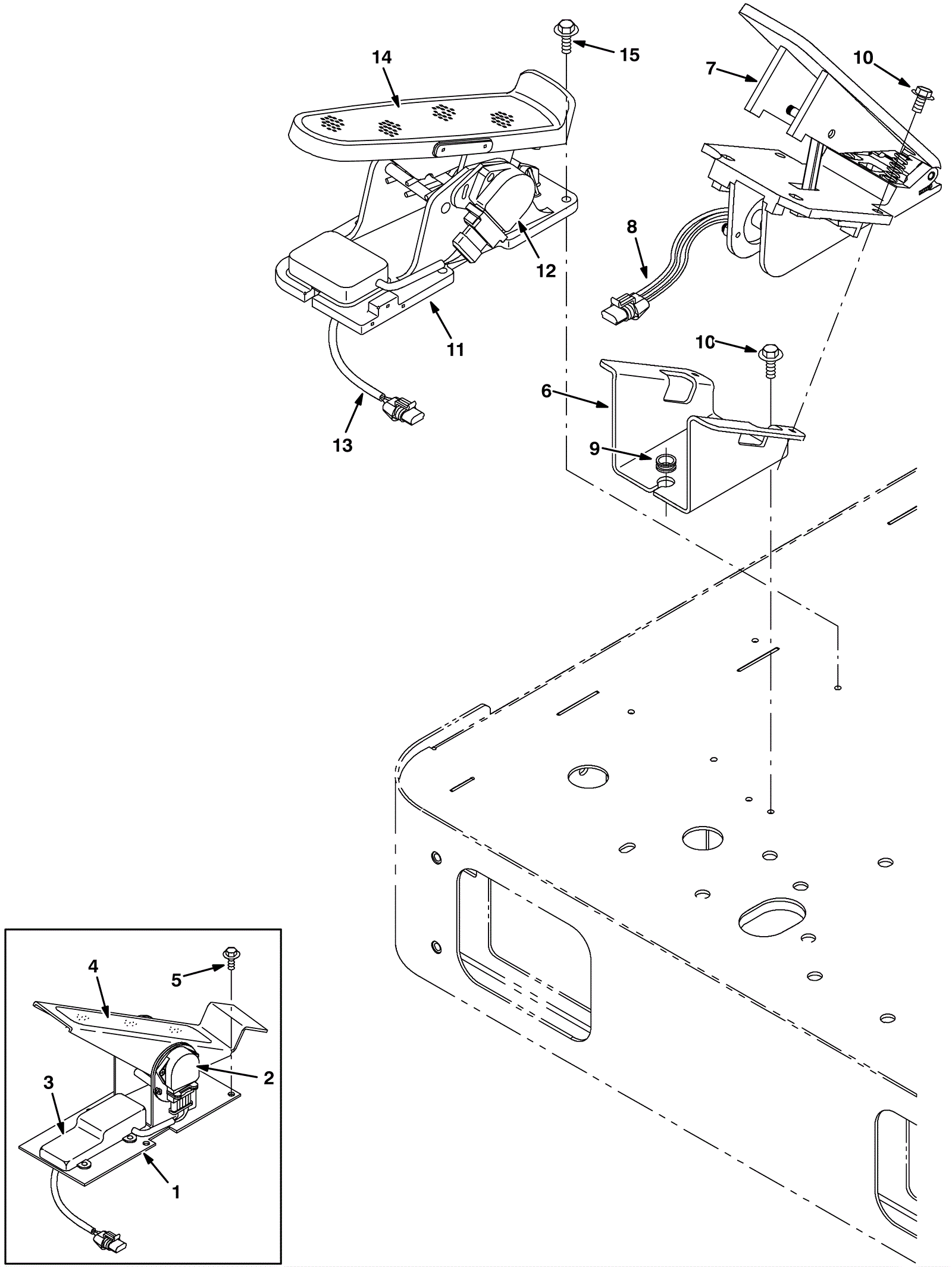

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-5774
|
Pedal kit (Tennant Industrial) |
1 |
(includes 2) (before SN 015337) |
|
1b |
275-9282
|
PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) |
1 |
(includes 2, 3a, 4) |
|
2 |
175-9511
|
VR, SENSOR, POSITION, PEDAL (Tennant Industrial) |
1 |
|
|
3a |
275-5774
|
Pedal kit (Tennant Industrial) |
1 |
(before SN 015097) |
|
3b |
275-9282
|
PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) |
1 |
(between SN 015097 and SN 015336) |
|
4 |
175-3307
|
Non-skid tread |
1 |
(between SN 015097 and SN 015336) |
|
5 |
175-3298
|
Bolt M6-1 x 12mm hex head |
4 |
(before SN 015337) |
|
6 |
275-9995
|
Brake pedal bracket (Tennant Industrial) |
1 |
|
|
7 |
275-9996
|
Brake pedal assembly (Tennant Industrial) |
1 |
(includes 8) |
|
8 |
275-9997
|
1amp snap switch (Tennant Industrial) |
1 |
|
|
9 |
175-4401
|
GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) |
1 |
|
|
10 |
175-3298
|
Bolt M6-1 x 12mm hex head |
4 |
|
|
11 |
275-9282
|
PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) |
1 |
(includes 12-14) (after SN 015336) |
|
12 |
175-9511
|
VR, SENSOR, POSITION, PEDAL (Tennant Industrial) |
1 |
(after SN 015336) |
|
13 |
275-9284
|
Pedal Circuitboard |
1 |
(after SN 015336) |
|
14 |
275-9283
|
Non-skid tread |
1 |
(after SN 015336) |
|
15 |
175-3374
|
Sound insulation |
4 |
(after SN 015336) |
|
