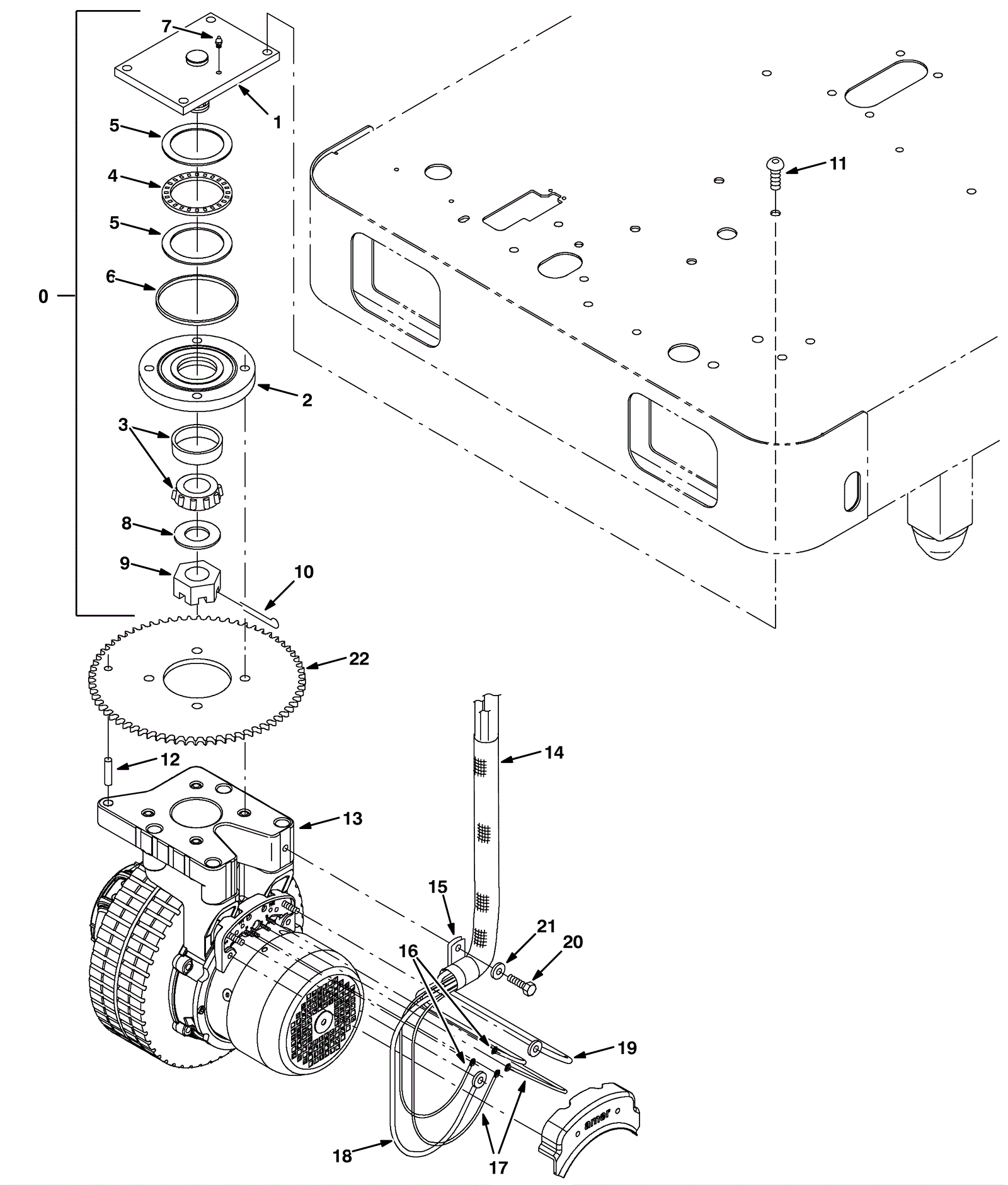

T15 Front Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
0 175-9967 Caster assembly $547.47 1 (includes 1-10) usually ships 10-16 days
1 175-9968 Swivel plate weldment $238.15 1 usually ships 10-16 days
2 175-3252 Bottom swivel plate $282.59 1 usually ships 10-16 days
3a 175-4946 Front drive wheel replacement bearing kit $159.28 2 (includes 3b-6) ships same day
3b 175-3253 Bearing assembly cup/cone $99.33 1 usually ships 10-16 days
4 175-3250 Thrust bearing $21.89 1 usually ships 10-16 days
5 175-3249 Washer thrust $6.82 2 usually ships 10-16 days
6 175-3251 Felt seal $8.14 1 usually ships 10-16 days
7 175-3248 Grease fitting $4.09 1 usually ships 10-16 days
8 175-3254 Washer $6.82 1 usually ships 10-16 days
9 175-3255 Nut hexslot 1 1/4 x 12 $9.57 1 usually ships 1-5 days
10 275-0418 Cotter pin 5/32 x 2 $4.09 1 usually ships 1-5 days
11 175-9971 Screw M12-1.75 x 30 Button head nylon lock $6.05 4 usually ships 1-5 days
12 175-9958 Dowel pin 1/2 x 1 1/2 $4.88 1 usually ships 10-16 days
13 275-9990 Drive wheel assembly (Tennant Industrial) $7,466.83 1 usually ships 1-5 days
14 175-9969 Nylon sleeve number 17 30 $19.14 1 usually ships 1-5 days
15 175-9979 Clamp (Tennant Industrial) $7.50 1 usually ships 1-5 days
16a 275-9991 Motor harness (Tennant Industrial) $64.18 1 (electric) usually ships 1-5 days
16b 175-9980 HARNESS, MOTOR (Tennant Industrial) $65.51 1 (gas/lpg) usually ships 1-5 days
17 275-9992 Brake harness (Tennant Industrial) $32.34 1 usually ships 1-5 days
18 275-9993 Cable (Tennant Industrial) $53.68 1 usually ships 1-5 days
19 175-9982 Wire 6 gauge 46 inch black ring terminal $37.84 1 usually ships 1-5 days
20 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
21 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
22 175-9970 Drive steering sprocket $40.70 1 usually ships 1-5 days
