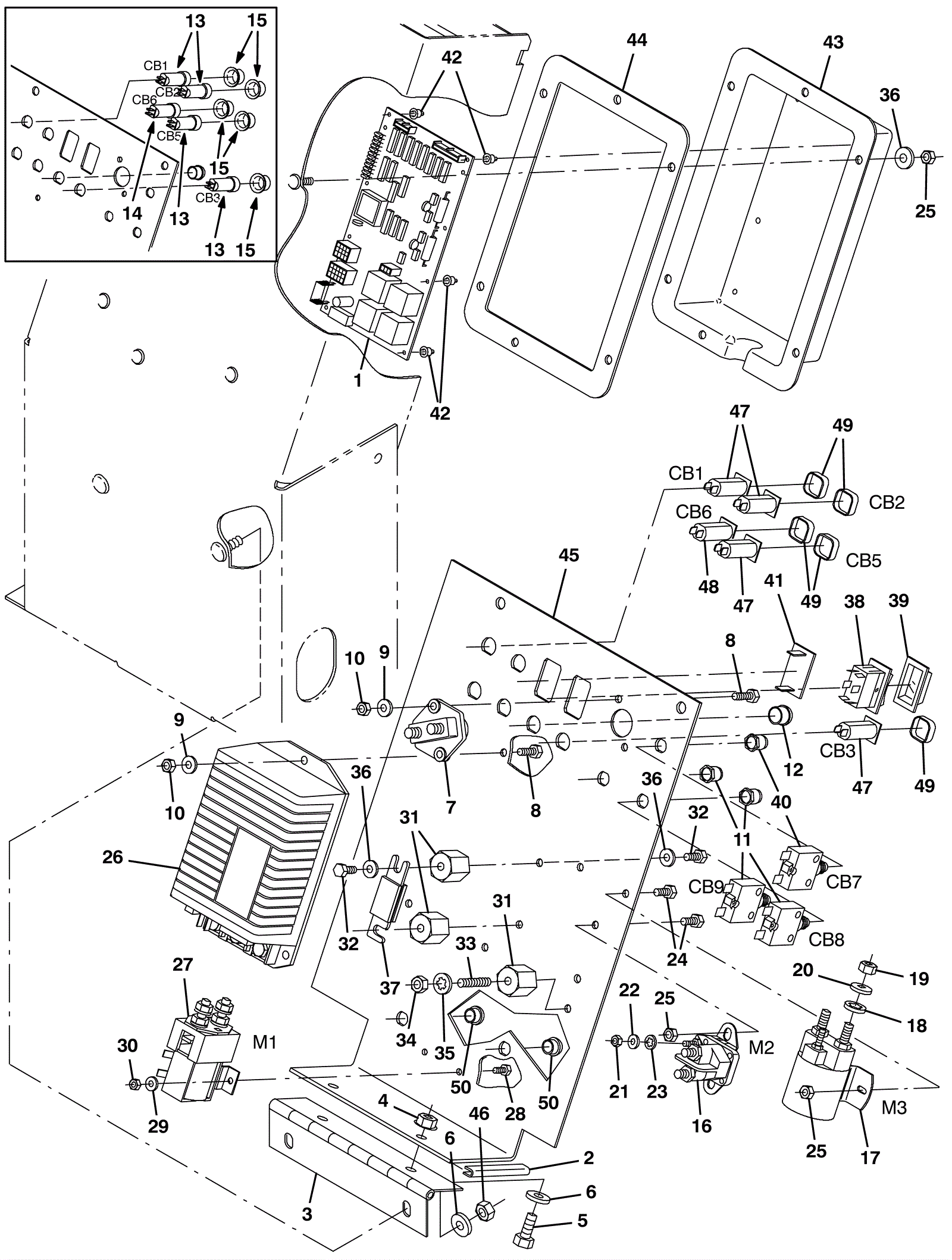

T15 Electrical Panel Assembly - Before SN 016000

#PartDescriptionPriceReqNotesAvailability
1a 175-9935 Controller replacement kit without pre-sweep $1,344.09 1 (includes 1c and 1d) usually ships 5-16 days
1b 175-9936 Controller replacement kit with pre-sweep $1,508.21 1 (includes 1c and 1d) usually ships 5-16 days
1c 175-5011 15amp slow-blow fuse $24.75 1 usually ships 1-5 days
1d 275-4654 MEMORY, FLASH [7200 SEPEX] $1,019.15 1 usually ships 1-5 days
2 275-8203 Molding $44.22 1 usually ships 1-5 days
3 175-9939 Hinge $12.43 1 usually ships 1-5 days
4 999-0665 Nut M8-1.25 flange lock $0.99 2 ships same day
5 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
7 175-3218 Push switch SPST $24.09 1 usually ships 5-16 days
8 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 5 ships same day
9 999-0006 Washer 3/16 flat zinc plated $0.99 5 ships same day
10 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 5 ships same day
11 175-2151 30amp circuit breaker $15.18 2 ships same day
12 175-9940 Black nylon plug (Tennant Industrial) $4.84 1 usually ships 1-5 days
13 175-2542 10amp circuit breaker $18.04 4 (befor SN 015672) usually ships 5-16 days
14 175-5969 15amp circuit breaker (Tennant Industrial) $7.52 1 (befor SN 015672) ships same day
15 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 5 (befor SN 015672) ships same day
16 175-2373 36V contactor $35.42 1 ships same day
17 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 1 ships same day
18 999-0406 Washer 5/16 internal star lock zinc plated $0.99 6 ships same day
19 999-0763 Nut 5/16-24 hex jam plain finish $0.99 6 ships same day
20 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
21 999-0460 Nut 10-32 hex $0.99 6 ships same day
22 999-0998 Washer #10 flat stainless steel $0.99 6 ships same day
23 999-0089 Washer #10 internal star lock zinc plated $0.99 6 ships same day
24 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
25 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 10 ships same day
26 275-9987 36 volt motor controller (Tennant Industrial) $1,522.54 1 usually ships 5-16 days
27 175-9943 36 volt contactor $165.11 1 usually ships 5-16 days
28 175-0837 Bolt M5-.8 x 16mm hex head $2.42 2 usually ships 1-5 days
29 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
30 175-2894 Nut M5-.8 hex nylon locking $2.42 2 usually ships 5-16 days
31 175-3226 Insulated stand off $9.35 3 ships same day
32 175-9950 Bolt 1/4-20 x 1/2 hex head nylon lock $2.42 5 usually ships 1-5 days
33 175-3227 Threaded rod $7.37 1 usually ships 1-5 days
34 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
35 999-0238 Washer 1/4 internal star lock zinc plated $0.99 1 ships same day
36 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
37 175-9944 80amp fuse $62.92 1 usually ships 1-5 days
38 175-9945 Rocker switch spst $20.90 1 usually ships 1-5 days
39 175-9946 Rocker switch seal cover $17.71 1 usually ships 5-16 days
40 175-2337 20amp circuit breaker $15.18 1 ships same day
41 175-9947 Cover plate $14.63 1 usually ships 1-5 days
42 175-2400 Circuit board clip $3.30 6 usually ships 1-5 days
43 175-3240 Elevated cover $138.05 1 usually ships 1-5 days
44 175-3241 Gasket cover $19.91 1 usually ships 1-5 days
45 275-9985 Electrical plate (Tennant Industrial) $70.31 1 usually ships 1-5 days
46 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
47 275-9986 10amp circuit breaker (Tennant Industrial) $7.52 4 (after SN 015671) ships same day
48 175-5969 15amp circuit breaker (Tennant Industrial) $7.52 1 (after SN 015671) ships same day
49 275-2596 Circuit breaker boot (Tennant Industrial) $18.87 5 (after SN 015671) ships same day
50 175-9923 Black nylon plug $3.19 2 usually ships 1-5 days
