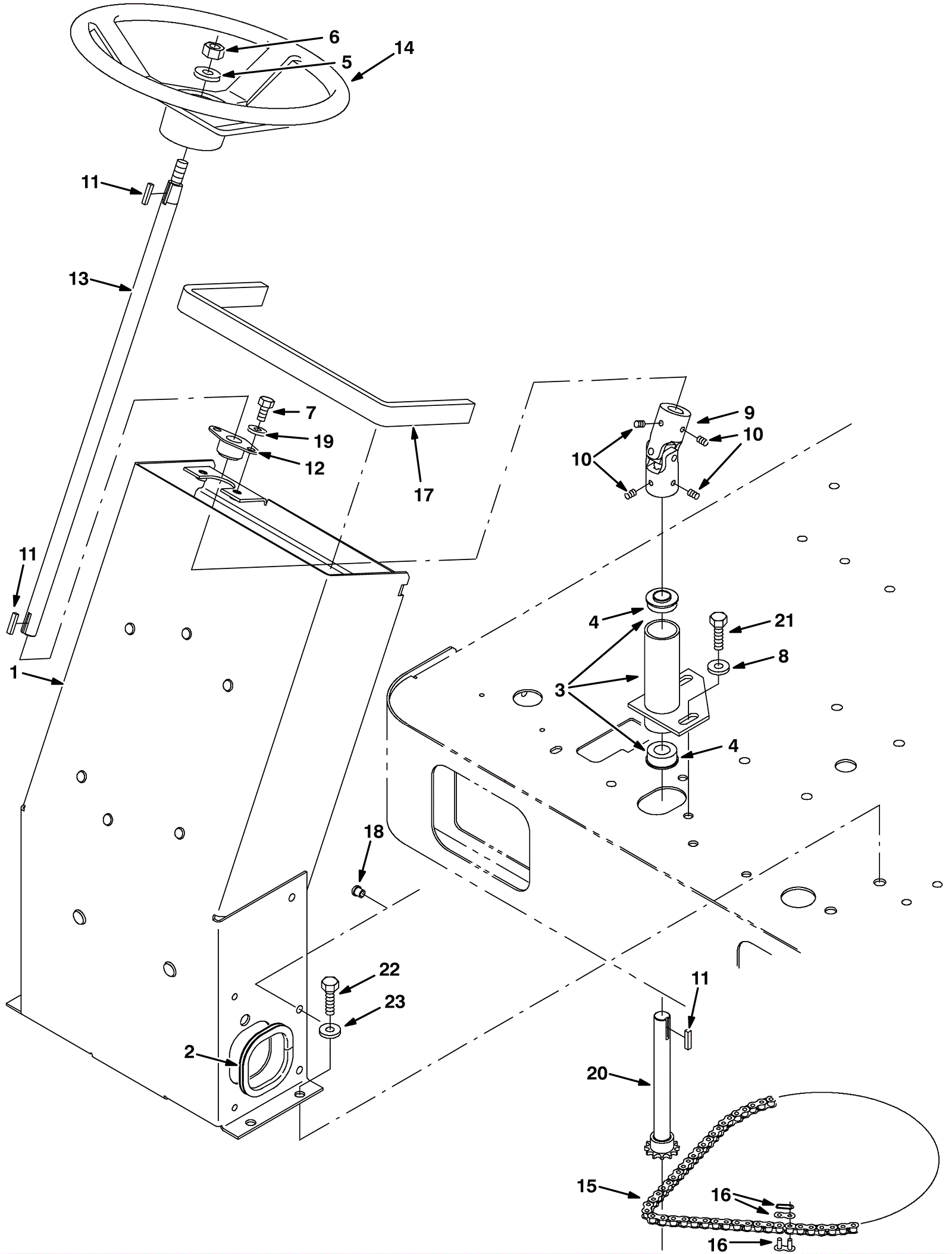

T15 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9979 Front channel (Tennant Industrial) $293.92 1 usually ships 1-5 days
2 275-8203 Molding $45.21 1 usually ships 1-5 days
3 175-9927 Steering housing assembly $200.86 1 (includes 4) usually ships 5-16 days
4 175-3195 Ball bearing $19.36 2 usually ships 5-16 days
5 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
6 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
7 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
8 175-2305 Washer $4.88 2 ships same day
9 275-5323 U joint $111.76 1 ships same day
10 175-4926 Screw 5/16-18 x 3/8 set nylon lock $4.88 4 ships same day
11 175-3200 Square keyway $4.09 3 ships same day
12 175-3201 Flanged bearing $6.05 1 usually ships 5-16 days
13 175-3203 Upper steering shaft $216.04 1 usually ships 1-5 days
14 275-4653 Steering wheel $152.68 1 usually ships 5-16 days
15 175-9928 Chain 35 $24.64 1 usually ships 5-16 days
16 175-3207 Master link $4.88 1 usually ships 5-16 days
17 175-9929 Panel seal $7.81 1 usually ships 1-5 days
18 175-9924 White nylon plug $2.51 2 usually ships 1-5 days
19 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
20 175-3196 Steering shaft $132.11 1 usually ships 5-16 days
21 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 2 usually ships 1-5 days
22 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 6 usually ships 1-5 days
23 999-0032 Washer 3/8 USS flat plain finish $2.42 6 ships same day
