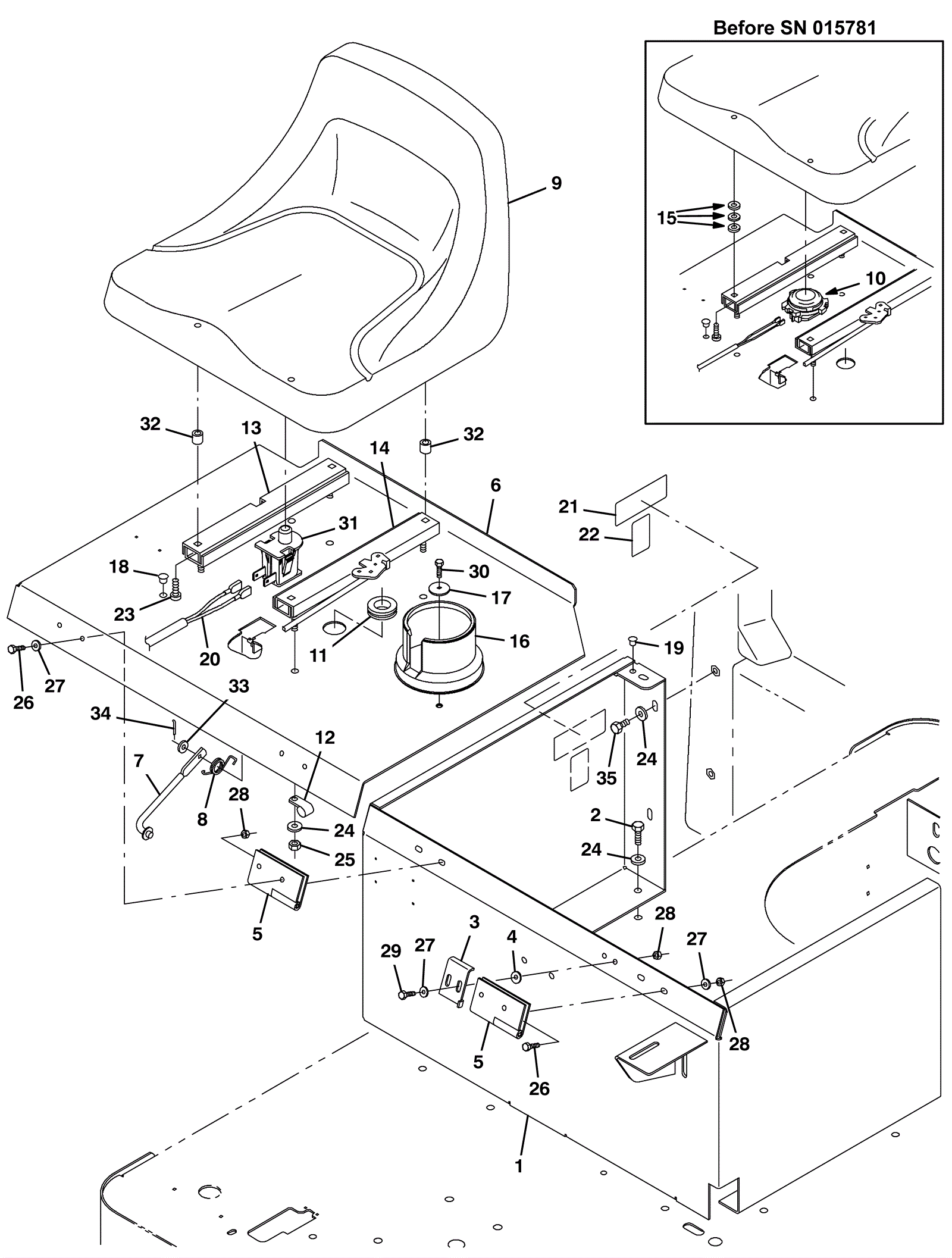

T15 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9975 Seat support (Tennant Industrial) $661.65 1 (electric) usually ships 1-5 days
2a 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 9 (electric) ships same day
2b 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 9 (gas/lpg) ships same day
3 275-9976 Seat bracket (Tennant Industrial) $22.55 1 usually ships 1-5 days
4 175-3187 Washer nylon $3.30 2 usually ships 5-16 days
5 175-3183 Hinge $53.35 2 usually ships 5-16 days
6a 275-9977 Seat support with decal (Tennant Industrial) $461.42 1 usually ships 1-5 days
6b 275-9978 Seat support with decal (Tennant Industrial) $837.00 1 usually ships 1-5 days
7 175-3181 Safety support arm $53.90 1 usually ships 5-16 days
8 175-0633 Spring $4.95 1 usually ships 5-16 days
9a 275-9328 Seat kit (includes screw and spacer) $262.90 1 (before SN 015781) ships same day
9b 275-9328 Seat kit (includes screw and spacer) $262.90 1 (after SN 015780) ships same day
10 175-0596 Seat switch $23.21 1 (before SN 015781) ships same day
11 175-0840 Rubber grommet $4.84 1 usually ships 1-5 days
12 175-3168 P clamp $3.96 1 usually ships 5-16 days
13 175-3174 12 1/2 inch adjustable seat slide track $47.96 1 usually ships 1-5 days
14 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $46.70 1 usually ships 5-16 days
15 175-3176 Washer 3/8 flat steel plated $2.42 12 (before SN 015781) ships same day
16 175-3188 Cup holder $56.10 1 usually ships 5-16 days
17 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 1 ships same day
18 175-9923 Black nylon plug $3.19 2 usually ships 1-5 days
19 175-9924 White nylon plug $1.98 1 usually ships 1-5 days
20 175-3190 Seat harness $44.22 1 ships same day
21 175-5223 FaST decal $17.82 1 usually ships 1-5 days
22 175-5271 Certification decal $23.21 1 usually ships 1-5 days
23a 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 4 (before SN 015781) ships same day
23b 275-9278 SCREW, PAN, PHL, .31-18 X 1.00, G2 (Tennant Industrial) $4.84 4 (after SN 015780) usually ships 5-16 days
24 999-0024 Washer 5/16 flat stainless steel $1.34 15 ships same day
25 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
26 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
27 999-0016 Washer 1/4 flat plain finish $0.99 10 ships same day
28 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 10 ships same day
29 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
30 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
31 275-9280 Seat switch $10.12 1 (after SN 015780) ships same day
32 275-9333 Spacer $3.85 4 (after SN 015780) usually ships 1-5 days
33 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
34 175-6176 Cotter pin $2.42 1 ships same day
35 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
