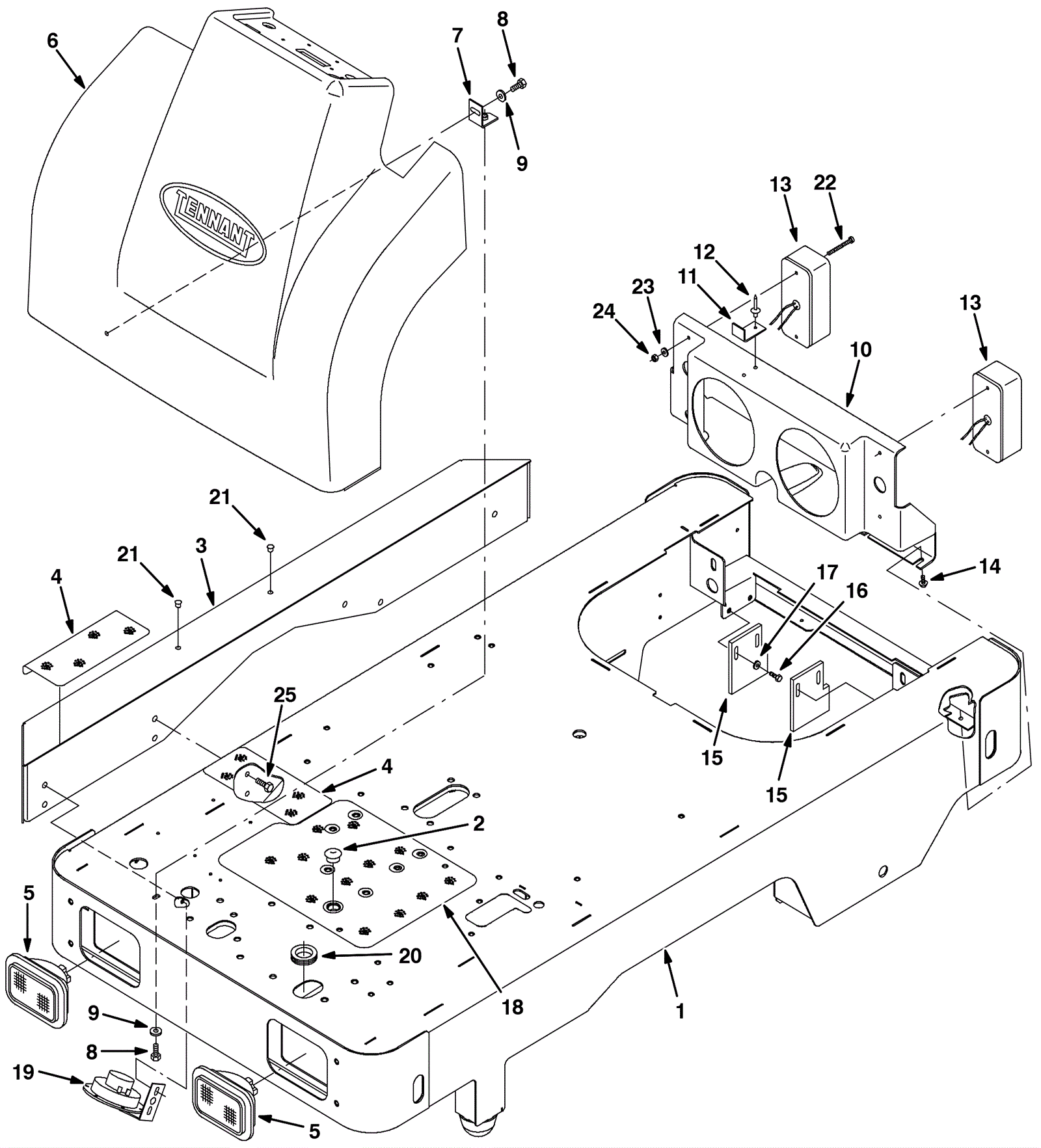

T15 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-9967 Main frame (OBSOLETE) Call for price 1 usually ships 1-5 days
2 275-4640 Hole plug $4.49 1 usually ships 1-5 days
3 275-9968 Side bumper (Tennant Industrial) $497.77 1 usually ships 1-5 days
4 175-9743 Non-skid tread 10 x 4 1/2 $6.49 2 usually ships 10-16 days
5a 175-0524 Headlight $287.21 2 (includes 5c) (before SN 015494) usually ships 10-16 days
5b 275-9970 LED headlight (OBSOLETE) $35.42 1 (between SN 016406 and SN 016529) usually ships 1-5 days
5c 175-3165 Lamp $25.96 1 usually ships 10-16 days
6 275-9971 Front cover (Tennant Industrial) $1,362.94 1 usually ships 1-5 days
7 275-9972 Angle bracket (Tennant Industrial) $21.67 1 usually ships 1-5 days
8 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
9 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
10 275-4645 Drip tray $454.52 1 usually ships 1-5 days
11 275-9973 Tray bracket (Tennant Industrial) $13.69 1 usually ships 1-5 days
12 175-5936 Pop rivet $5.28 2 usually ships 10-16 days
13a 275-4647 Taillight kit (Tennant Industrial) $99.02 2 (includes 13c) (before SN 015921) usually ships 10-16 days
13b 275-9974 Taillight (Tennant Industrial) $132.03 2 (after SN 015920) usually ships 1-5 days
13c 275-4648 Lamp $24.09 1 (before SN 015921) usually ships 10-16 days
14 175-3298 Bolt M6-1 x 12mm hex head $4.49 4 ships same day
15 275-4649 Rubber skirt $15.95 2 usually ships 1-5 days
16 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
17 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 4 ships same day
18 275-4650 TREAD, NON-SKID, 12.8W 15.0L (Tennant Industrial) $64.18 1 usually ships 1-5 days
19 175-3160 Horn $116.38 1 usually ships 10-16 days
20 175-2366 Rubber grommet $6.49 1 ships same day
21 175-2359 Plug $4.49 2 usually ships 1-5 days
22 275-4651 SCREW, CHZ, M5 X 0.8 X 60, 4.8 (Tennant Industrial) $5.50 4 usually ships 1-5 days
23 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
24 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
25 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 6 ships same day
