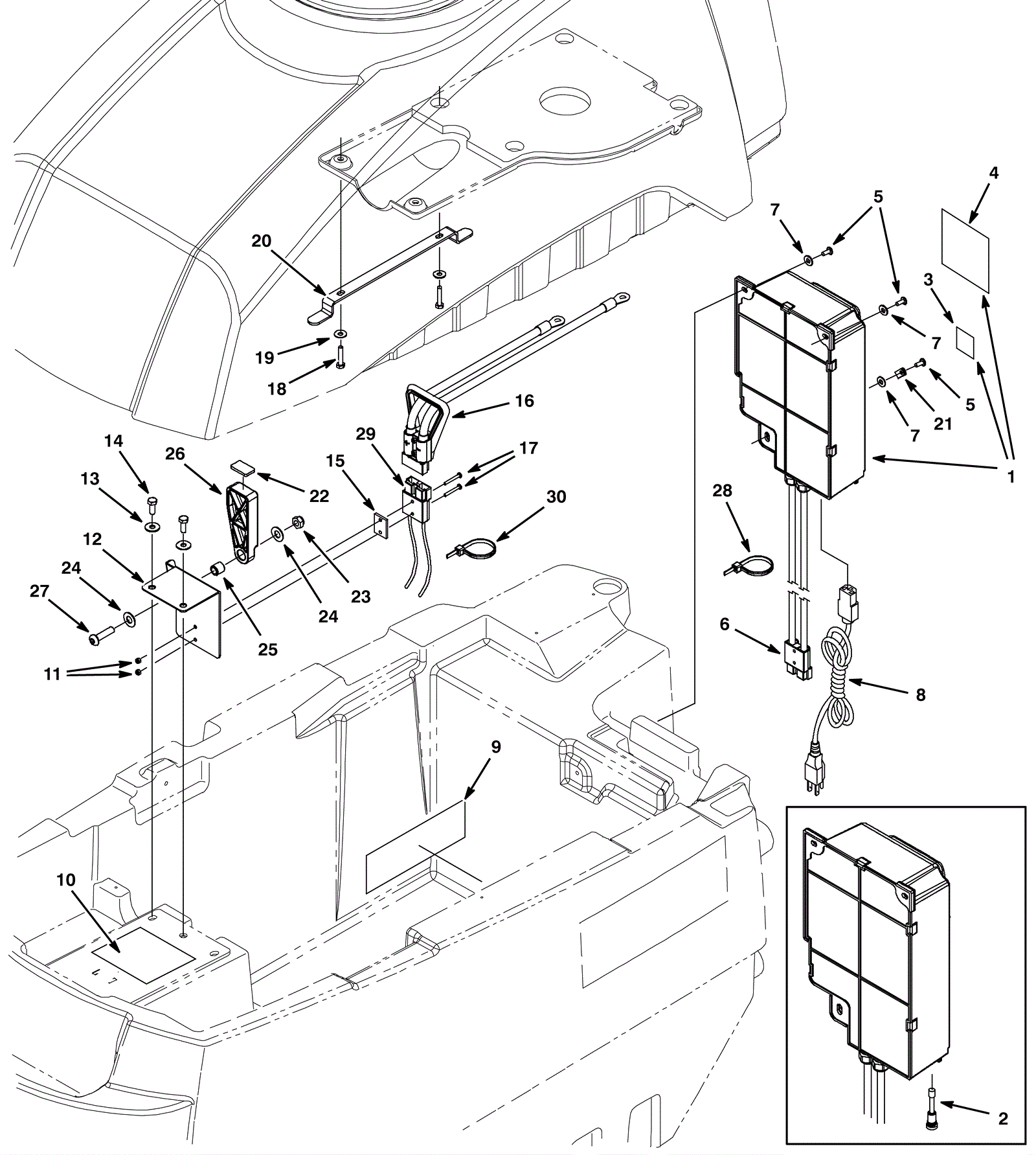

T5 E On-Board Battery Charger After SN 10409249

#PartDescriptionPriceReqNotesAvailability
1 275-6265 24V onboard battery charger $1,124.86 1 (Includes items 2-6) ships same day
2 275-1584 15amp fuse $4.09 1 usually ships 5-16 days
3 175-4567 Hazardous voltage decal (OBSOLETE) $2.64 1 usually ships 1-5 days
4 275-1586 Charger decal $38.06 1 usually ships 1-5 days
5 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 3 ships same day
6 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
8a 275-1585 16/3 charger power cord 15 foot (black) $80.83 1 ships same day
8b 991-8576 16/3 power cord 15 foot (black) $32.85 1 ships same day
9 275-1404 Charger setting instruction decal $15.51 1 usually ships 1-5 days
10 275-7129 Charger decal $6.24 1 usually ships 5-16 days
11 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
12 275-7130 Bracket $19.03 1 usually ships 5-16 days
13 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
14 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
15 175-1197 Plate $6.82 1 ships same day
16a 275-6248 Harness $268.84 1 (Includes items 16b and 16c) ships same day
16b 275-6247 Anderson connector handle $17.05 1 ships same day
16c 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
17 999-1221 Screw M3-.5 x 25mm pan head stainless steel $0.99 2 ships same day
18 175-6758 Screw M6-1 x 30mm hex head $3.96 2 usually ships 5-16 days
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
20 275-7131 Cord hook $15.73 1 usually ships 5-16 days
21 175-5421 P clamp $4.88 1 usually ships 5-16 days
22 175-2869 Gasket $5.28 1 (Serial numbers 10558135-20000000) ships same day
23 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 (Serial numbers 10558135-20000000) ships same day
24 999-0024 Washer 5/16 flat stainless steel $1.34 2 (Serial numbers 10558135-20000000) ships same day
25 175-2249 Sleeve $3.83 1 (Serial numbers 10558135-20000000) ships same day
26 275-1374 Support prop (black) $5.50 1 (Serial numbers 10558135-20000000) ships same day
27 275-5864 Screw M8 x 30mm button head (black) $1.85 1 (Serial numbers 10558135-20000000) ships same day
28 175-7795 Cable tie $4.75 6 ships same day
29 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
30 175-0037 Wire tie $3.96 4 usually ships 5-16 days
N/S 275-4782 24V onboard battery charger kit $1,621.07 1 (Includes items 1-30) ships same day
