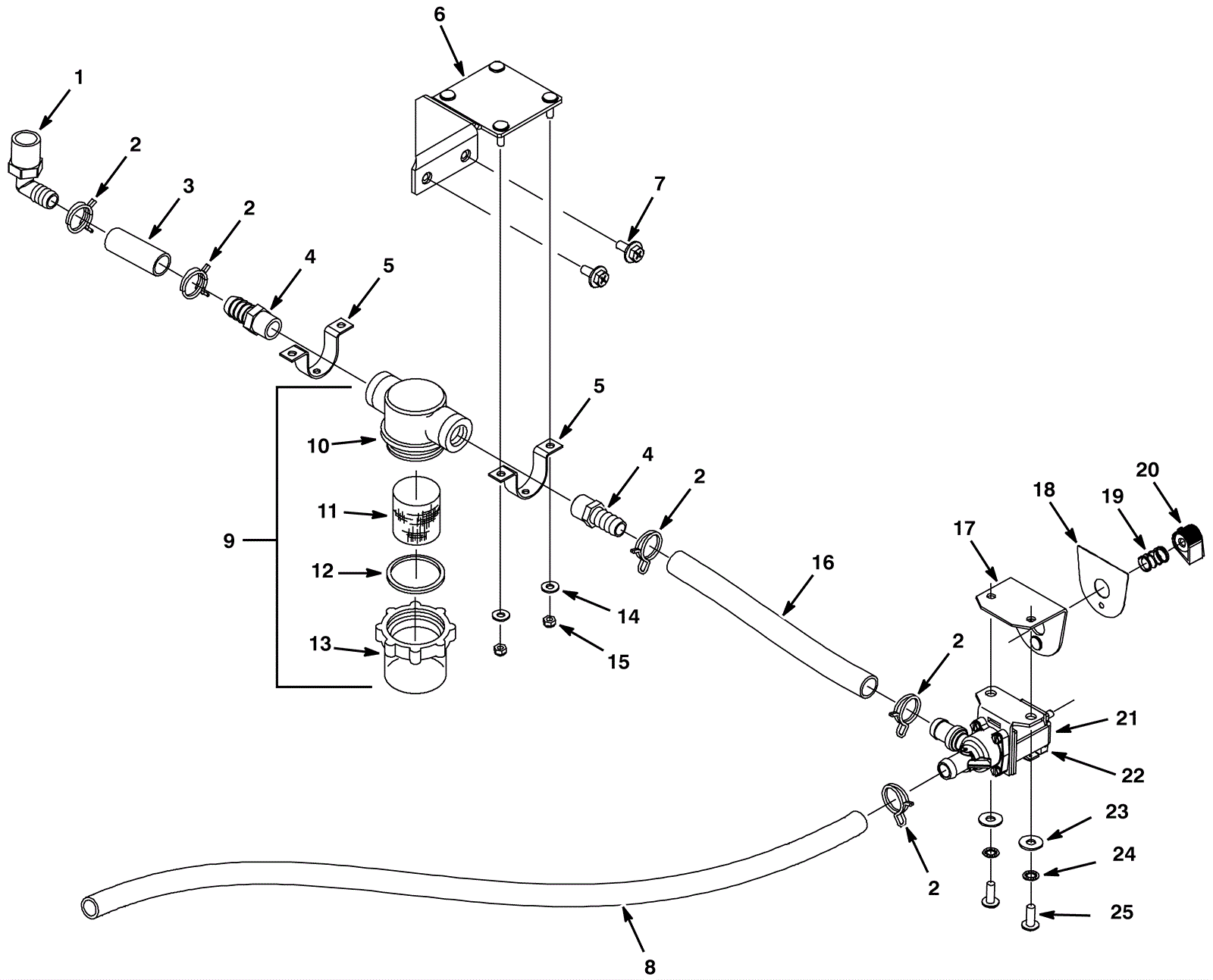

T5 E Standard Solution Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-7834 Plastic fitting $9.02 1 usually ships 10-16 days
2 375-0291 Hose clamp $4.88 5 ships same day
3 175-1043 3 inch hose $42.90 1 ships same day
4 175-1025 Straight brass fitting $6.82 2 ships same day
5 175-3690 U clamp $26.84 2 usually ships 10-16 days
6 175-2882 Filter mounting bracket weldment $82.28 1 usually ships 10-16 days
7 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
8 275-1537 45 inch vinyl tubing $37.07 1 ships same day
9a 175-9025 In-line screen filter assembly $21.45 1 (Includes items 10-13) ships same day
9b 991-8582 Mesh inline filter $14.20 1 ships same day
10 175-5865 Top filter body housing $24.97 1 usually ships 10-16 days
11a 175-5866 Mesh filter screen $12.43 1 ships same day
11b 991-8569 Mesh filter screen stainless steel $4.51 1 ships same day
12 175-5867 Filter gasket $6.49 1 ships same day
13a 175-5868 Short clear filter bowl $18.48 1 ships same day
13b 991-8575 Short bowl (clear) $13.54 1 ships same day
14 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
15 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
16a 275-1454 12 inch vinyl hose $24.31 1 (OEM) ships same day
16b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) $0.44 10 in (NON-OEM) usually ships 12-16 days
17 175-2883 Solution decal bracket $60.50 1 ships same day
18 175-2884 Solution flow decal $7.59 1 ships same day
19 175-7931 Compression spring $4.88 1 ships same day
20 175-7930 Indicator valve knob (black) $14.74 1 ships same day
21a 175-7884 24V solution solenoid valve assembly $156.42 1 (Serial numbers 10753815-20000000, and 30044488-40000000) ships same day
21b 175-7884 24V solution solenoid valve assembly $156.42 1 (Includes item 22) (Serial numbers 10000000-10753814, 30000000-30044487, and 50000000-60000000) ships same day
22 175-8698 Solenoid valve rebuild kit (internal parts) $116.05 1 (Serial numbers 10000000-10753814, 30000000-30044487, and 50000000-60000000) ships same day
23 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
24 175-4544 Washer M6 locking $4.09 2 ships same day
25 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
