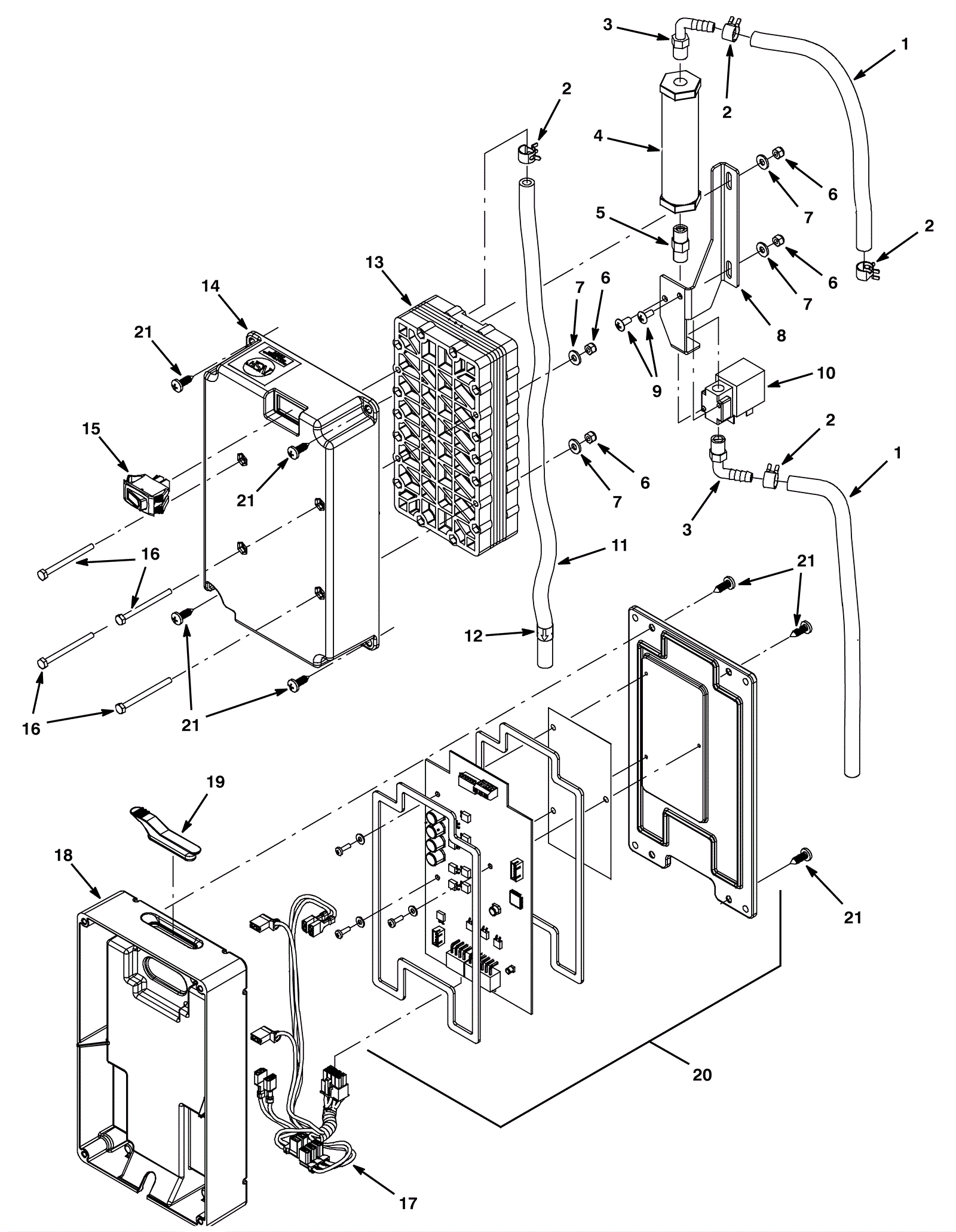

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-6347
|
Hose 1/4 inch x 13 foot |
$28.27
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
2 |
175-1656
|
Hose clamp |
$4.88
|
4 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
3 |
175-1662
|
90 degree elbow fitting |
$4.88
|
2 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
4 |
275-9936
|
Cylindrical electrode |
$44.11
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
5 |
275-4770
|
Straight brass fitting |
$15.40
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
6 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
4 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
7 |
999-0266
|
Washer #8 SAE flat stainless steel |
$0.99
|
4 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
8 |
275-4954
|
Valve bracket |
$15.29
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
9 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
$0.99
|
2 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
10 |
275-4769
|
24V solenoid valve |
$162.14
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
11 |
275-4955
|
PVC hose |
$99.66
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
12 |
275-5731
|
Direction decal |
$3.83
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
13 |
275-4956
|
5 plate electrode |
$1,040.38
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
14 |
275-4957
|
Front module housing |
$12.32
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
15 |
275-4773
|
Rocker switch |
$7.70
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
16 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
$1.47
|
4 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 11-24 days |
17 |
275-4958
|
Main wiring harness |
$27.83
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
18 |
275-4761
|
Rear module housing |
$10.34
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
19 |
275-5946
|
Grommet |
$5.50
|
1 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
20 |
275-4775
|
Controller replacement kit (ec-H2O) |
$474.54
|
1 |
(Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
21 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
8 |
(Serial numbers 10378380-10740995, 30000000-30045418, and 50000000-60000000) |
ships same day |
N/S |
275-9935
|
ec-H20 module (OBSOLETE) |
$2,058.54
|
1 |
(Includes all items listed below) (Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 5-16 days |
N/S |
275-4953
|
Module plumbing kit |
$1,607.98
|
1 |
(Includes items 1-17) (Serial numbers 10448305-10740995, 30000000-30045418, and 50000000-60000000) |
usually ships 1-5 days |
