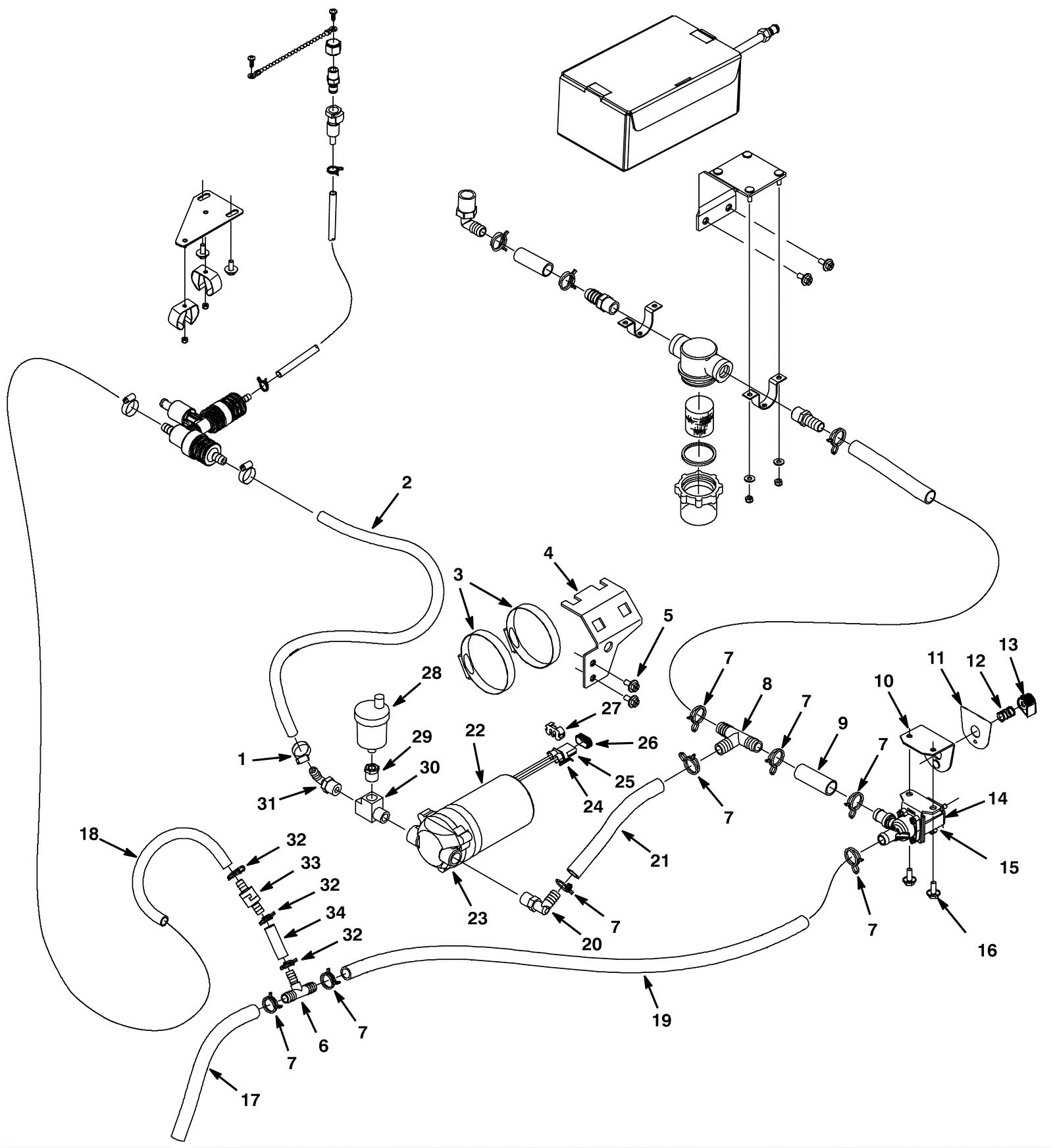

T5 E Fast Solution Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 175-6081 Hose clamp $4.84 1 ships same day
2 275-1534 3 foot PVC hose (braided) (Tennant Industrial) $54.68 1 ships same day
3 997-2009 Hose clamp $3.30 2 ships same day
4 275-1535 Pump mounting bracket $44.88 1 usually ships 1-5 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
6 175-4810 Tee fitting $10.67 1 ships same day
7 375-0291 Hose clamp $5.28 8 ships same day
8 175-3329 Plastic tee fitting $6.49 1 usually ships 13-17 days
9a 275-1454 12 inch vinyl hose $26.07 1 (OEM) ships same day
9b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) $0.44 10 in (NON-OEM) usually ships 12-16 days
10 175-2883 Solution decal bracket $64.79 1 ships same day
11 175-2884 Solution flow decal $8.14 1 ships same day
12 175-7931 Compression spring $5.28 1 ships same day
13 175-7930 Indicator valve knob (black) $15.84 1 ships same day
14a 175-7884 24V solution solenoid valve assembly $167.42 1 usually ships 1-5 days
15 175-8698 Solenoid valve rebuild kit (internal parts) $124.19 1 ships same day
16 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 2 ships same day
17a 275-1454 12 inch vinyl hose $26.07 1 (OEM) ships same day
17b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) $0.44 10 in (NON-OEM) usually ships 12-16 days
18 275-1538 2 1/2 foot hose $77.77 1 usually ships 13-17 days
19 275-1537 45 inch vinyl tubing $39.71 1 ships same day
20 175-3685 90 degree elbow fitting $6.49 1 ships same day
21a 275-1454 12 inch vinyl hose $26.07 1 (OEM) ships same day
21b 991-1405 Vinyl tubing 1/2 x 3/4 (sold by the inch) $0.44 10 in (NON-OEM) usually ships 12-16 days
22 175-7934 24V solution pump $800.36 1 ships same day
23 275-1536 Solution pump head $496.65 1 usually ships 1-5 days
24 175-8753 Female connector $8.25 1 usually ships 13-17 days
25 175-8755 TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) $5.67 1 usually ships 1-5 days
26 175-8754 14/16 wire seal $4.49 1 usually ships 1-5 days
27 175-8756 Male and female secondary lock $5.28 1 usually ships 13-17 days
28 175-7941 Air vent valve $68.64 1 usually ships 13-17 days
29 175-6863 Straight brass fitting $8.30 1 usually ships 13-17 days
30 175-5869 Tee fitting 3/8 x 3/8 inch $25.96 1 usually ships 13-17 days
31 175-7933 90 degree plastic elbow $7.37 1 usually ships 13-17 days
32a 175-3671 Hose clamp $5.28 3 (Serial numbers 10348538-20000000, 3000000-40000000, and 50000000-60000000) usually ships 13-17 days
32b 175-3671 Hose clamp $5.28 4 (Serial numbers 10000000-10348537) usually ships 13-17 days
33 175-7929 Check valve $54.08 1 ships same day
34 175-8670 Hose 3/8 x 6 1/2 inch $20.79 1 ships same day
