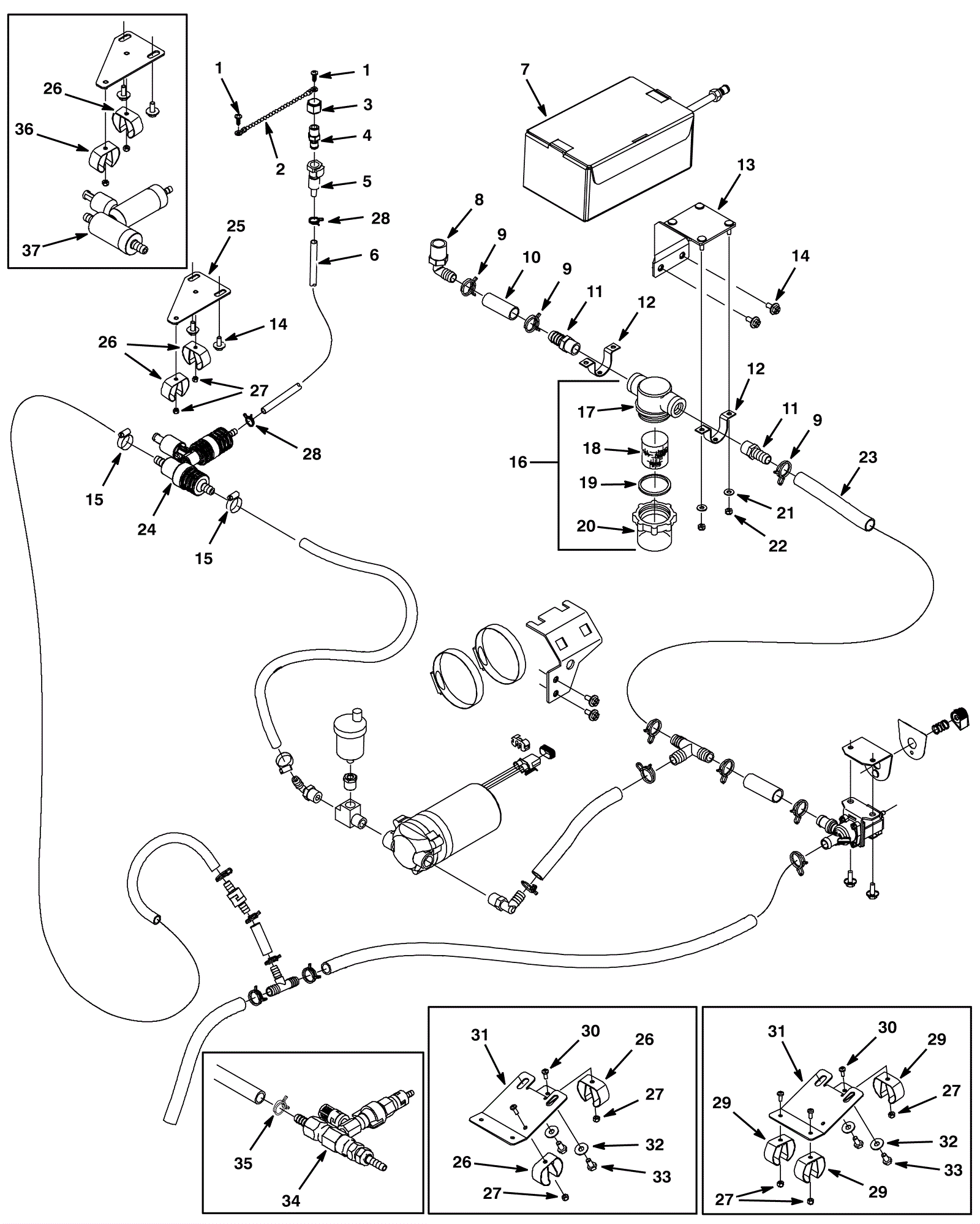

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
$0.99
|
2 |
|
ships same day |
2 |
175-5129
|
Ball chain #10 stainless steel |
$4.88
|
1 |
|
usually ships 5-16 days |
3 |
175-5313
|
Plastic cap fitting |
$4.88
|
1 |
|
usually ships 5-16 days |
4 |
175-5312
|
Male coupling strainer fitting |
$30.58
|
1 |
|
usually ships 5-16 days |
5 |
275-1522
|
1/4 female coupling |
$59.29
|
1 |
|
usually ships 5-16 days |
6 |
175-5305
|
Hose 1/4 x 3 foot |
$52.58
|
1 |
|
usually ships 5-16 days |
7 |
275-9297
|
2 liter detergent - DO NOT ORDER |
$222.53
|
1 |
(We do not sell detergent) |
usually ships 1-5 days |
8 |
175-7834
|
Plastic fitting |
$9.02
|
1 |
|
usually ships 5-16 days |
9 |
375-0291
|
Hose clamp |
$4.88
|
3 |
|
ships same day |
10 |
175-1043
|
3 inch hose |
$42.90
|
1 |
|
ships same day |
11 |
175-1025
|
Straight brass fitting |
$6.82
|
2 |
|
ships same day |
12 |
175-3690
|
U clamp |
$26.84
|
2 |
|
usually ships 5-16 days |
13 |
175-2882
|
Filter mounting bracket weldment |
$82.28
|
1 |
|
usually ships 5-16 days |
14 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
4 |
(Serial numbers 10369603-20000000, 30000000-40000000, and 50000000-60000000) |
ships same day |
15 |
175-6081
|
Hose clamp |
$4.84
|
2 |
(Serial numbers 10348538-20000000, 30000000-40000000, and 50000000-60000000) |
ships same day |
16a |
175-9025
|
In-line screen filter assembly |
$21.45
|
1 |
(Includes items 17-20) |
ships same day |
16b |
991-8582
|
Mesh inline filter |
$14.20
|
1 |
|
ships same day |
17 |
175-5865
|
Top filter body housing |
$24.97
|
1 |
|
usually ships 5-16 days |
18a |
175-5866
|
Mesh filter screen |
$12.43
|
1 |
|
ships same day |
18b |
991-8569
|
Mesh filter screen stainless steel |
$4.51
|
1 |
|
ships same day |
19 |
175-5867
|
Filter gasket |
$6.49
|
1 |
|
ships same day |
20a |
175-5868
|
Short clear filter bowl |
$18.48
|
1 |
|
ships same day |
20b |
991-8575
|
Short bowl (clear) |
$13.54
|
1 |
|
ships same day |
21 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
4 |
|
ships same day |
22 |
999-0740
|
Nut M5-.8 hex stainless steel |
$0.99
|
4 |
|
ships same day |
23a |
275-1454
|
12 inch vinyl hose |
$24.31
|
1 |
(OEM) |
ships same day |
23b |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
$0.44
|
10 in |
(NON-OEM) |
usually ships 12-16 days |
24a |
275-5727
|
FaST injector kit |
$305.91
|
1 |
(Serial numbers 10538043-20000000) (600mm and 650mm) |
usually ships 5-16 days |
24b |
275-7549
|
FaST injector kit |
$305.91
|
1 |
(Serial numbers 10582617-20000000) (700mm and 800mm) |
usually ships 1-5 days |
25 |
275-5728
|
FaST injector plate |
$20.02
|
1 |
(Serial numbers 10369603-20000000, 30000000-40000000, and 50000000-60000000) |
usually ships 1-5 days |
26a |
175-4526
|
Spring clip |
$5.50
|
2 |
(Serial numbers 10538043-20000000, 30000000-40000000, and 50000000-60000000) (600mm and 650mm) |
usually ships 5-16 days |
26b |
175-4526
|
Spring clip |
$5.50
|
1 |
(Serial numbers 10347532-20000000, 30000000-40000000, and 50000000-60000000) (700mm and 800mm) |
usually ships 5-16 days |
27a |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
2 |
(Serial numbers 10347532-20000000, 30000000-40000000, and 50000000-60000000) |
ships same day |
27b |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
$0.99
|
3 |
(Serial numbers 10000000-10347531) |
ships same day |
28 |
175-5304
|
Hose clamp |
$4.09
|
2 |
|
ships same day |
29 |
175-7938
|
Spring clip (black) |
$12.10
|
3 |
(Serial numbers 10000000-10347531) |
ships same day |
30a |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
$0.99
|
2 |
(Serial numbers 10347532-10369602) |
ships same day |
30b |
999-0534
|
Screw M4-.7 x 10mm pan head slotted zinc |
$0.99
|
3 |
(Serial numbers 10000000-10347531) |
ships same day |
31 |
N/A
|
Not available |
Call for price
|
|
(replaced by 275-5728) (plate) |
usually ships 3-26 days |
32 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
(Serial numbers 10000000-10369602) |
ships same day |
33 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
$0.99
|
2 |
(Serial numbers 10000000-20000000) |
ships same day |
34a |
275-5730
|
FaST conversion kit (24 and 26 inch) |
$772.09
|
1 |
(Serial numbers 10000000-10348537) (600mm and 650mm) |
usually ships 1-5 days |
34b |
275-5729
|
FaST conversion kit (28 and 32 inch) |
$573.54
|
1 |
(Serial numbers 10000000-10347531) (700mm and 800mm) |
usually ships 1-5 days |
35 |
175-3671
|
Hose clamp |
$4.88
|
1 |
(Serial numbers 10000000-10348537) |
usually ships 5-16 days |
36 |
175-7938
|
Spring clip (black) |
$12.10
|
1 |
(700mm and 800mm) |
ships same day |
37a |
275-5727
|
FaST injector kit |
$305.91
|
1 |
(Serial numbers 10348538-10538042) (600mm and 650mm) |
usually ships 5-16 days |
37b |
275-5726
|
FaST injector kit |
$775.06
|
1 |
|
usually ships 1-5 days |
