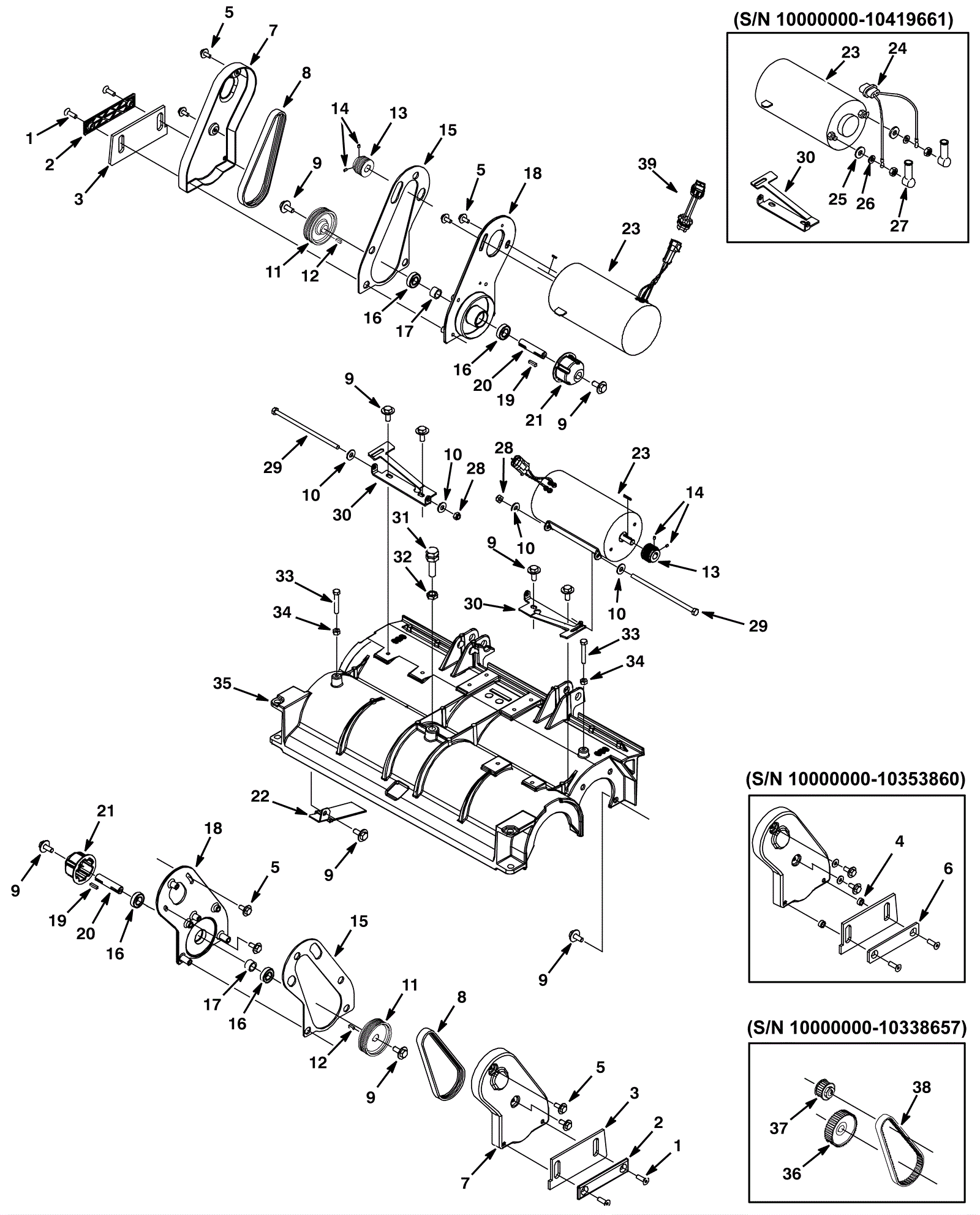

T5 E Cylindrical Scrub Head Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 175-9240 Screw M8-1.25 x 25mm flat head socket nylok stainless steel $4.88 4 usually ships 5-16 days
2 275-5304 Side squeegee blade retainer $5.50 2 (Serial number 10353861-60000000) usually ships 5-16 days
3 275-1485 Cylindrical scrubber side skirt $39.82 2 ships same day
4 275-5304 Side squeegee blade retainer $5.50 4 (Bushing) (Serial number 10000000-10353860) usually ships 5-16 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 8 ships same day
6 275-5304 Side squeegee blade retainer $5.50 2 (Link) (Serial number 10000000-10353860) usually ships 5-16 days
7 275-1487 Belt cover $78.10 2 usually ships 5-16 days
8 275-4735 Drive belt $35.09 2 (Serial number 10338658-60000000) ships same day
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 16 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
11 275-4737 Sheave $114.07 2 (Serial number 10338658-60000000) usually ships 5-16 days
12 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) $6.17 2 ships same day
13 275-4738 Sheave $87.34 2 (Serial number 10338658-60000000) usually ships 5-16 days
14 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
15 275-1490 Belt cover gasket $11.11 2 usually ships 5-16 days
16 175-2471 Ball bearing $19.25 4 ships same day
17 175-8820 Spacer $15.95 2 ships same day
18 275-1491 Motor bracket $233.42 2 usually ships 5-16 days
19 175-8818 Square keyway $4.09 2 usually ships 5-16 days
20 275-1492 Drive shaft $145.09 2 ships same day
21 175-8819 Drive plug $55.88 2 ships same day
22 275-1497 Water deflector $49.06 1 usually ships 5-16 days
23a 275-5305 24V brush motor $1,035.54 2 (Serial number 10419662-60000000) usually ships 5-16 days
23b 275-5306 Carbon brush (pkg of 4) $101.53 2 (Serial number 10419662-60000000) ships same day
23c 275-5307 24V brush motor kit $1,218.58 2 (Serial number 10000000-10419661) usually ships 1-5 days
23d 175-8674 Carbon brush (pkg of 4) $27.83 2 (Serial number 10000000-10419661) usually ships 1-5 days
23e 175-8675 Carbon brush spring $10.01 8 (Serial number 10000000-10419661) usually ships 1-5 days
24 175-8677 Brush motor harness $33.66 2 (Serial number 10000000-10419661) usually ships 1-5 days
25 999-0024 Washer 5/16 flat stainless steel $1.34 4 (Serial number 10000000-10419661) ships same day
26 999-1053 Washer 5/16 internal star lock stainless steel $0.99 6 (Serial number 10000000-10419661) ships same day
27 175-8682 Terminal boot (black) $5.28 4 (Serial number 10000000-10419661) usually ships 1-5 days
28 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 2 (Serial number 10353861-60000000) ships same day
29 275-1494 Screw M8-1.25 x 180mm hex head stainless steel $13.86 2 usually ships 5-16 days
30 275-5308 Motor mounting bracket $45.21 2 usually ships 1-5 days
31 275-1472 Adjustable stud $24.97 1 usually ships 5-16 days
32 175-9223 Nut M16 x 2 hex jam $4.09 1 usually ships 1-5 days
33 999-1692 Screw M8-1.25 x 50mm hex stainless steel $3.28 2 ships same day
34 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
35a 275-1496 Cylindrical brush housing $1,117.49 1 (26 inch) usually ships 1-5 days
35b 275-1507 32 inch cylindrical brush housing $1,351.24 1 (32 inch) usually ships 1-5 days
36 175-8817 Belt kit (belts, square keyways and hardware) $157.96 2 (Serial number 10000000-10338657) usually ships 5-16 days
37 175-2465 Drive sprocket $69.30 2 (Serial number 10000000-10338657) usually ships 5-16 days
38 175-8816 Belt $90.42 2 (Serial number 10000000-10338657) usually ships 5-16 days
39 275-5309 Wiring harness adapter $24.97 1 (Serial number 10419662-60000000) usually ships 5-16 days
