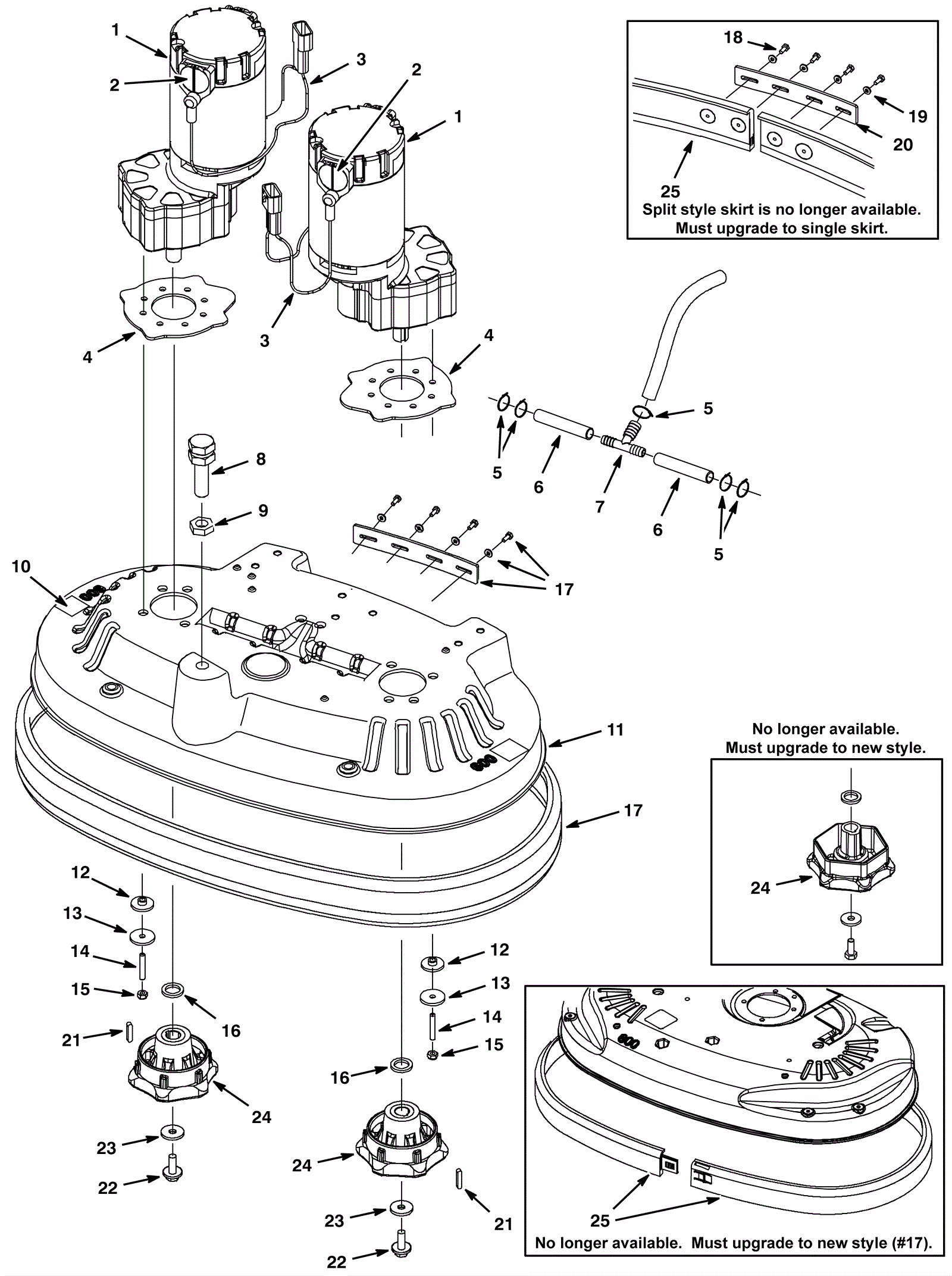

T5 E Scrub Head Assembly 1

#PartDescriptionPriceReqNotesAvailability
1a 275-1457 24V brush motor assembly with gearbox $1,372.30 2 ships same day
1b 991-1706 24V brush motor assembly with gearbox $666.00 2 (NON-OEM) ships same day
2 275-1458 Carbon brush (pkg of 2) $137.48 1 ships same day
3 275-1459 Brush motor connector harness $282.59 1 ships same day
4 275-1460 Rubber spacer $7.92 2 ships same day
5 175-7795 Cable tie $4.75 7 ships same day
6 175-8670 Hose 3/8 x 6 1/2 inch $19.36 2 ships same day
7 175-5591 Tee fitting 3/8 x 3/8 x 1/2 $7.70 1 ships same day
8 275-1472 Adjustable stud $24.97 1 usually ships 5-16 days
9 175-9223 Nut M16 x 2 hex jam $4.09 1 usually ships 1-5 days
10 175-1238 Moving parts decal $5.50 2 usually ships 5-16 days
11a 275-1478 24 inch (600mm) brush head housing $661.76 1 usually ships 1-5 days
11b 275-1481 28 inch (700mm) brush head housing $810.81 1 usually ships 5-16 days
11c 275-1483 32 inch (800mm) brush head housing $1,039.61 1 usually ships 5-16 days
12 275-1463 Isolator grommet $6.82 8 ships same day
13 275-1464 WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) $8.84 8 usually ships 1-5 days
14 275-1465 Screw M6-1 x 35 mm set nylock stainless steel $3.96 8 ships same day
15 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 8 ships same day
16 275-1469 Shaft spacer $8.25 2 usually ships 5-16 days
17a 275-1466 24 inch (600mm) bumper skirt assembly $285.56 1 (24 inch) ships same day
17b 275-1480 28 inch (700mm) bumper skirt assembly $339.46 1 (28 inch) ships same day
17c 275-1482 32 inch (800mm) bumper skirt assembly $367.51 1 (32 inch) ships same day
17d 991-1910 32 inch (800mm) bumper skirt assembly $107.52 1 (NON-OEM) ships same day
18 999-0777 Screw M4-.7 x 10mm hex head plain finish $0.99 4 (For split style skirt) ships same day
19 999-1158 Washer #6 flat stainless steel $0.99 4 (For split style skirt) ships same day
20 N/A Not available Call for price 1 (For split style skirt) usually ships 3-26 days
21 275-1468 Square keyway $4.88 2 ships same day
22a 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
22b 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 (Serial numbers 50000000-60000000) ships same day
23a 175-7920 Washer M8 flat stainless steel $4.09 2 ships same day
23b 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 2 (Serial numbers 50000000-60000000) ships same day
24 275-1477 Brush drive hub (disk) $131.23 2 (disk) ships same day
25 N/A Not available Call for price 1 (Split style skirt) usually ships 3-26 days
