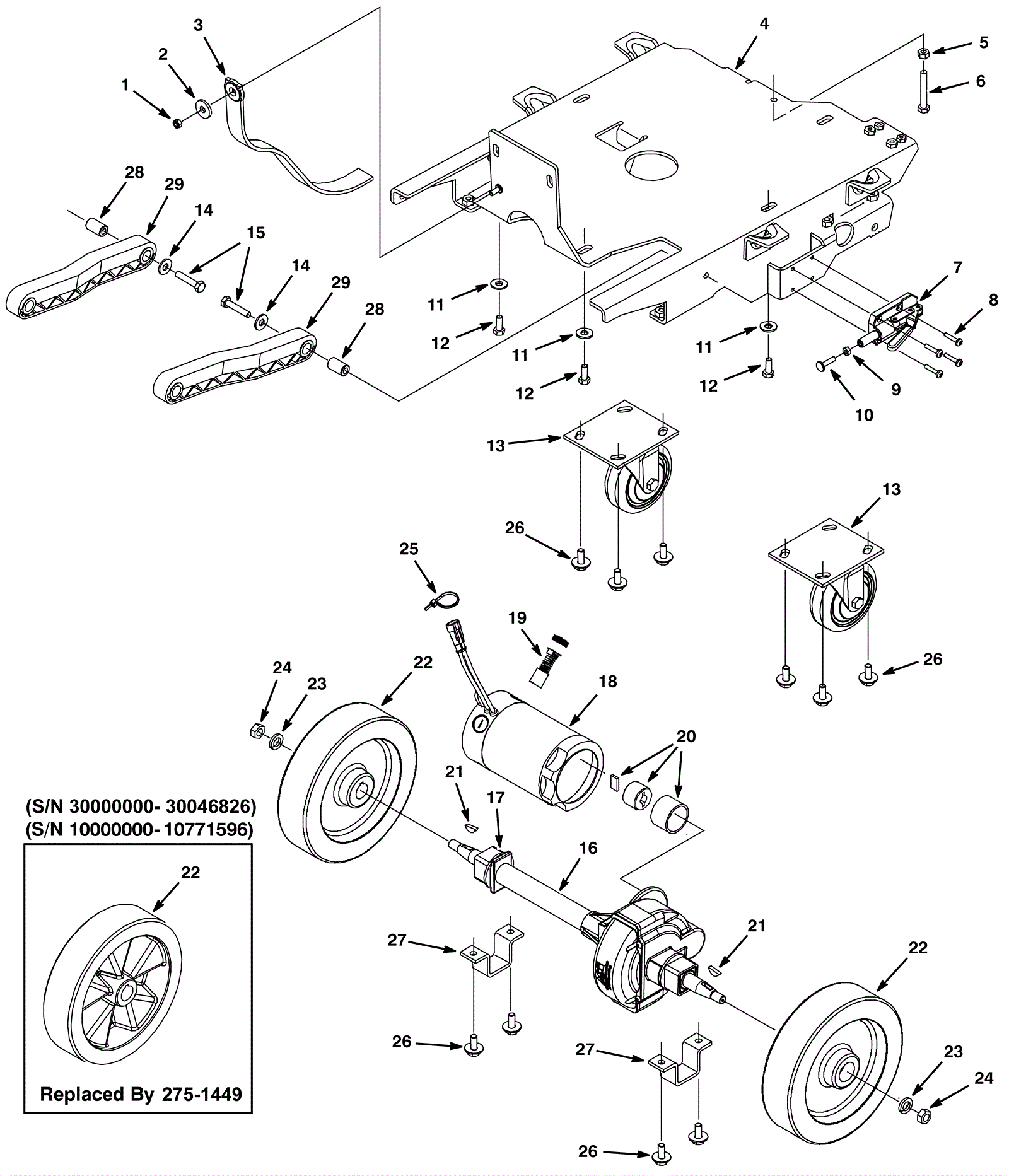

T5 E Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 1 ships same day
2 175-1097 Washer flat stainless steel $5.50 1 ships same day
3 275-1440 Static strap $42.57 1 ships same day
4 275-1441 Transaxle frame weldment $767.14 1 ships same day
5 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
6 999-0788 Screw M8-1.25 x 55mm hex head stainless steel $1.54 1 ships same day
7 275-1442 Parking brake clamp $95.04 1 ships same day
8 175-3289 Bolt M5-.8 x 16mm hex head $4.88 4 usually ships 5-16 days
9 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
10 275-1444 Screw M6 x 25mm stainless steel $5.50 1 usually ships 5-16 days
11 275-7133 Washer .34B x 1.25D x .11 flat stainless steel $5.50 5 ships same day
12 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 5 ships same day
13 175-2991 4 inch caster wheel $63.27 2 ships same day
14 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
15 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
16a 275-1446 24V transaxle $2,390.33 1 (Includes items 17-21) ships same day
16b 991-3079 24V transaxle assembly $840.71 1 ships same day
17 175-3660 Transaxle sleeve $10.34 2 usually ships 5-16 days
18 275-1447 24V transaxle motor $637.78 1 (Includes item 19) ships same day
19 175-7898 Carbon brush (pkg of 4) $66.77 1 ships same day
20 175-7899 Transaxle coupling kit $34.87 1 ships same day
21 275-1448 Square keyway $4.09 2 ships same day
22a 275-5301 Solid wheel kit $361.24 1 (Includes 2 of 22a) (OEM) ships same day
22b 275-1449 Wheel with taper $168.52 2 (OEM) ships same day
22c 991-7142 Wheel with taper (Obsolete) $101.57 2 (NON-OEM) usually ships 5-16 days
22d 991-7148 Solid wheel kit $259.74 1 (includes 2 of 22c) (NON-OEM) usually ships 5-16 days
23 999-0126 Washer 1/2 split lock $1.28 2 ships same day
24 999-0503 Nut M12-1.75 hex stainless steel $1.91 2 ships same day
25 175-7795 Cable tie $4.75 4 ships same day
26 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 12 ships same day
27 175-4349 Transaxle bracket $37.51 2 usually ships 5-16 days
28 175-4343 1 inch tube $6.49 2 ships same day
29 175-2102 Scrub head lifting arm $49.94 2 ships same day
