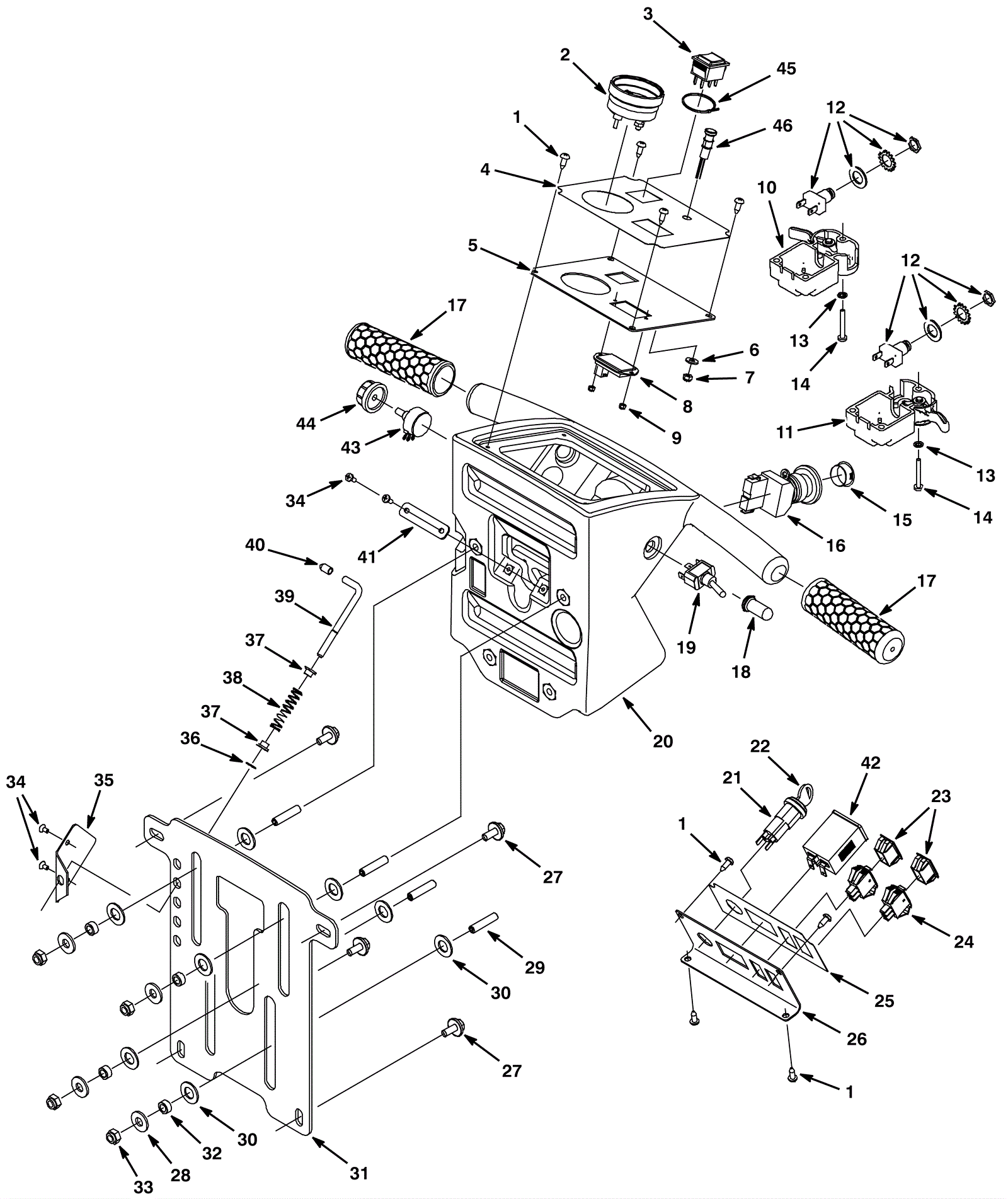

T5 E Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-5815 Screw 10 x 1/2 pan head phillips black $3.83 8 ships same day
2a 275-4700 Brush pressure gauge 20-40amp $82.72 1 (OEM) ships same day
2b 991-1914 Brush pressure gauge $49.39 1 (NON-OEM) ships same day
3 175-8630 Brush pressure switch $27.28 1 ships same day
4a 275-4701 Upper operational label $20.24 1 (Serial number 10000000-20000000, 30000000-40000000, and 50000000-60000000) ships same day
4b 275-5718 Upper console label Ec-H2o $15.62 1 (Serial number 10378380-20000000, 30000000-40000000, and 50000000-60000000) ships same day
5 275-4703 Upper operational panel $83.05 1 ships same day
6 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
7 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
8 175-4935 36V Battery gauge $90.97 1 usually ships 5-16 days
9 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
10 275-4697 Right hand console trigger assembly $57.86 1 (Includes 12) ships same day
11 275-4704 Left hand console trigger assembly $57.86 1 (Includes 12) ships same day
12a 375-1289 Switch kit $33.55 2 (Serial number 10000000-20000000, and 30000000-40000000) usually ships 5-16 days
12b 175-6400 Push button switch kit $31.79 2 (Serial number 50000000-60000000) ships same day
13 999-1083 Washer #8 internal star lock stainless steel $0.99 6 ships same day
14 999-1672 Screw M4-.7 x 30mm pan head phillips stainless steel $0.99 6 usually ships 11-24 days
15 175-3126 Plug $4.88 1 ships same day
16 275-1416 Safety shut-off switch $40.81 1 ships same day
17 275-4706 Handle grip $6.49 2 ships same day
18 175-3104 Switch boot $20.35 1 ships same day
19 175-3103 Toggle switch $62.04 1 ships same day
20 375-1290 Control housing kit $354.86 1 usually ships 1-5 days
21 175-7872 Key switch with 2 keys $53.13 1 (Includes 22) ships same day
22 991-1634 Key (pkg of 2) $10.67 1 ships same day
23 175-2698 Switch plug $6.05 2 ships same day
24 175-7871 Rocker switch $17.60 2 usually ships 5-16 days
25a 275-4708 Lower operational label $11.88 1 (Serial number 10000000-20000000, 30000000-40000000, and 50000000-60000000) usually ships 5-16 days
25b 275-5719 Lower console label Ec-H2o $20.68 1 (Serial number 10378380-20000000, 30000000-40000000, and 50000000-60000000) usually ships 1-5 days
26 275-4710 Lower instrument panel $41.69 1 usually ships 1-5 days
27a 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 4 (Serial number 10000000-20000000, and 30000000-40000000) ships same day
27b 999-0783 Screw M8-1.25 x 16mm hex head $0.99 4 (Serial number 50000000-60000000) ships same day
28 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
29 175-4271 Screw M8 x 35mm set $4.88 4 usually ships 5-16 days
30 999-0566 Washer 1/2 flat nylon $0.99 8 ships same day
31 275-4711 Console mounting bracket $75.24 1 usually ships 1-5 days
32 175-4269 Bearing $4.88 4 usually ships 5-16 days
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 4 ships same day
34 999-0521 Screw M4-.7 x 12mm pan head phillips zinc $2.31 4 ships same day
35 175-4250 Retainer plate $10.34 1 usually ships 5-16 days
36 175-4252 Retaining ring $4.88 1 usually ships 5-16 days
37 175-4255 Flanged bushing $4.88 2 usually ships 5-16 days
38 175-4256 Compression spring $4.88 1 usually ships 5-16 days
39 175-4254 Adjustment lever $14.08 1 usually ships 5-16 days
40 175-4278 Cap $4.09 1 usually ships 5-16 days
41 275-4713 Retaining bracket $8.25 1 usually ships 5-16 days
42 275-9900 Hour meter $53.79 1 ships same day
43 175-7847 Potentiometer assembly $82.83 1 ships same day
44 275-4714 Knob $15.51 1 ships same day
45 175-7795 Cable tie $4.75 1 ships same day
46 275-4715 LED light $102.30 1 ships same day
