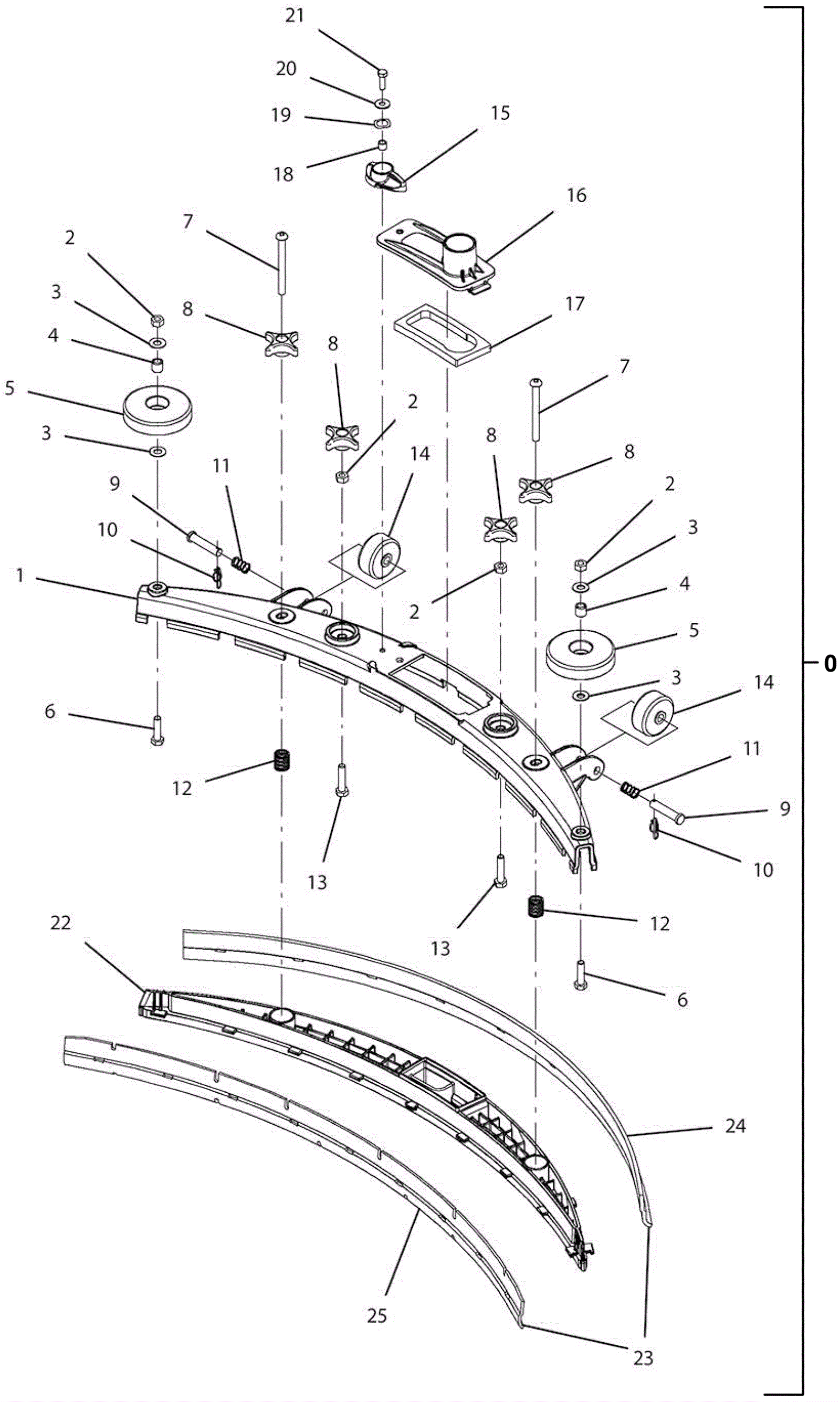

T291 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
0 375-0196 20 inch (500mm) squeegee assembly $672.54 1 (includes 1-25c) ships same day
1 375-0197 20 inch squeegee weldment $214.39 1 usually ships 10-16 days
2 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
3 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
4 175-2249 Sleeve $3.83 2 ships same day
5 175-7919 Guide wheel $5.50 2 ships same day
6 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
7 375-0262 Screw M8-1.25 x 80mm button socket stainless steel $17.16 2 ships same day
8 375-0261 Star knob M8-1.25 $9.57 4 ships same day
9 175-2592 Clevis Pin 0.37 D X 1.75 L $4.88 2 ships same day
10 375-0071 Cotter hair pin $1.85 2 ships same day
11 175-7931 Compression spring $4.88 2 ships same day
12 275-0143 Compression spring $4.88 2 ships same day
13 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
14a 991-2013 Wheel $8.70 2 ships same day
14b 375-5528 Wheel $23.98 2 usually ships 10-16 days
15 375-3281 Squeegee knob $5.50 1 ships same day
16 375-0263 Squeegee water trap cover $8.14 1 ships same day
17 375-0265 Squeegee water trap gasket $4.09 1 ships same day
18 175-0152 Spacer $4.75 1 usually ships 10-16 days
19 175-3058 Washer 3/4 wave $4.75 1 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 1 ships same day
21 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
22 375-0198 20 inch (500mm) squeegee retainer $79.42 1 usually ships 10-16 days
23a 375-3274 Squeegee blade kit 20 inch (500mm) linatex $58.85 1 ships same day
23b 375-3275 Squeegee blade kit 20 inch (500mm) urethane $100.98 1 usually ships 10-16 days
23c 375-3276 Squeegee blade kit 20 inch (500mm) gum rubber $33.00 1 ships same day
23d 991-3100 BLADE KIT, 500MM, GUM $29.08 1 (NON-OEM) usually ships 14-21 days
24a 375-0260 Squeegee blade 20 inch (500mm) linatex rear $23.32 1 ships same day
24b 375-1344 Squeegee blade 20 inch (500mm) urethane rear $70.73 1 usually ships 10-16 days
24c 375-1212 Squeegee blade 20 inch (500mm) gum rubber rear $16.50 1 ships same day
25a 375-0199 Squeegee blade 20 inch (500mm) linatex front $20.57 1 ships same day
25b 375-1342 Squeegee blade 20 inch (500mm) urethane front $48.62 1 usually ships 10-16 days
25c 375-1343 Squeegee blade 20 inch (500mm) gum rubber front $16.50 1 ships same day
