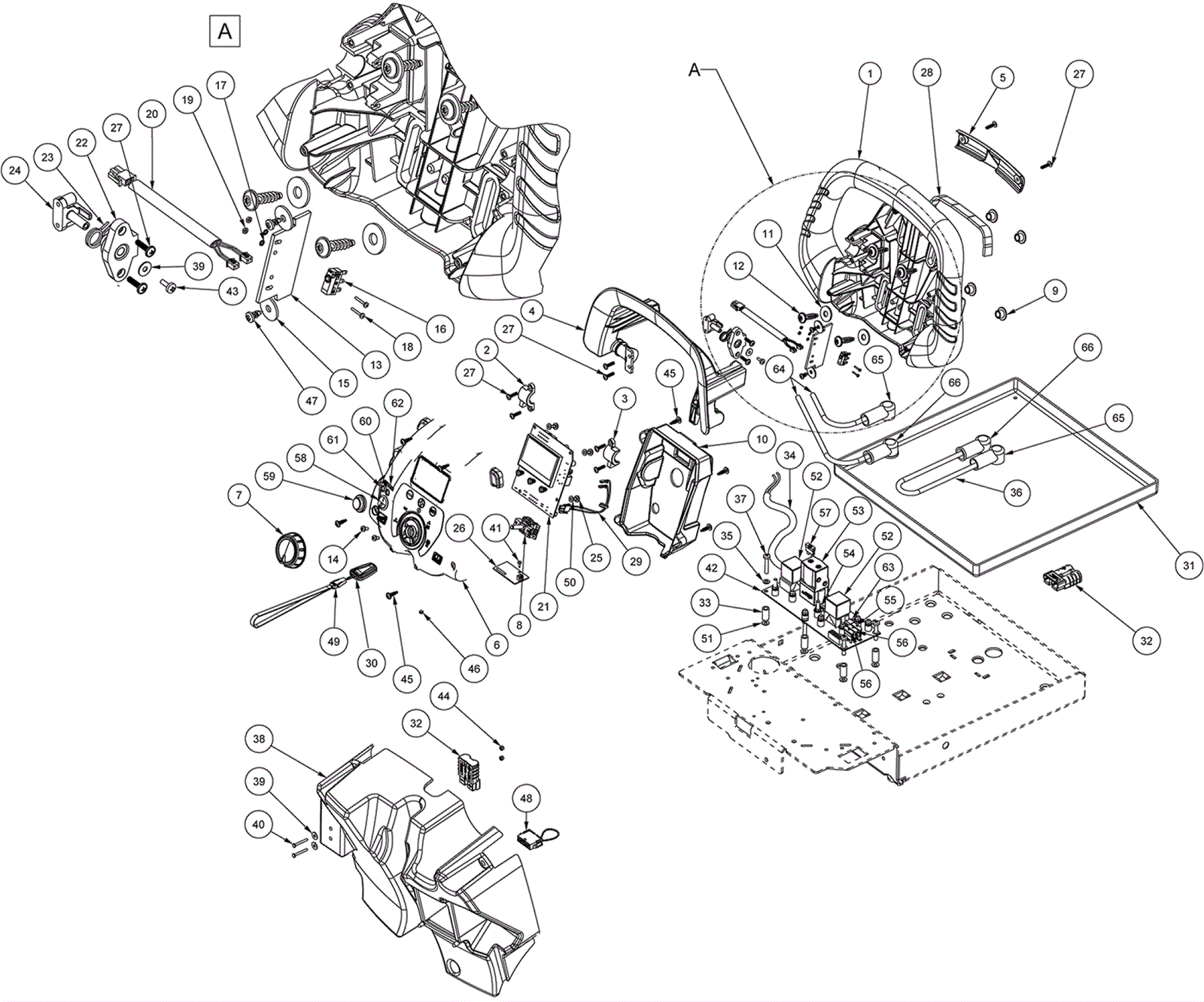

T291 Electrical Components Assembly - Pad Assist Model

#PartDescriptionPriceReqNotesAvailability
1 375-5465 Control housing handle $113.96 1 usually ships 13-17 days
2 375-5466 Left hand bail clamp $0.55 1 usually ships 13-17 days
3 375-5467 Right hand bail clamp $0.55 1 usually ships 13-17 days
4 375-5468 Bail handle $14.74 1 usually ships 13-17 days
5 375-5469 Handle cover $1.06 1 usually ships 13-17 days
6 375-5512 Top control housing $36.41 1 usually ships 13-17 days
7 375-5472 Selector knob $1.72 1 usually ships 13-17 days
8 375-5475 Rotary switch $25.41 1 usually ships 13-17 days
9 375-5377 Flange bushing $5.50 4 usually ships 13-17 days
10 375-5476 Controller cover $10.56 1 usually ships 13-17 days
11 375-9615 Washer D. 8 x 24 inox $3.17 4 ships same day
12 375-5421 Screw 8x30 pan torx head (Tennant Industrial) $1.72 4 usually ships 13-17 days
13 375-5477 Spacer $2.64 1 usually ships 13-17 days
14 375-9638 Screw M4 x 8 $4.36 2 usually ships 13-17 days
15 375-9206 Washer 5x20 flat $3.17 2 usually ships 13-17 days
16 375-9512 Microswitch $13.64 1 usually ships 13-17 days
17 375-5478 Washer $13.20 2 usually ships 13-17 days
18 375-5479 Screw M2x12 $4.36 2 usually ships 13-17 days
19 375-5480 Nut M2 hex $3.70 2 usually ships 13-17 days
20 375-5513 Harness $5.94 1 usually ships 13-17 days
21 375-5483 Display circuitboard $291.83 1 usually ships 13-17 days
22 375-5514 Bracket $0.55 1 usually ships 13-17 days
23 375-5515 Torsion spring $2.24 1 usually ships 13-17 days
24 375-5516 Bracket $0.55 1 usually ships 13-17 days
25 375-9498 Screw 4.8 x 9.5 self tapping $4.36 4 usually ships 13-17 days
26 375-5517 Circuitboard Call for price 1 usually ships 13-17 days
27 375-9479 Screw 4 x 16 $4.36 10 usually ships 13-17 days
28 375-5485 Gasket $0.77 1 usually ships 13-17 days
29 375-5518 Dash harness $11.99 1 usually ships 13-17 days
30 375-5487 Key $4.88 2 usually ships 13-17 days
31 375-9801 Battery support $44.66 1 usually ships 13-17 days
32 375-9807 Plug $62.70 1 usually ships 13-17 days
33 375-5359 Spacer $0.55 6 usually ships 13-17 days
34 375-5519 Main harness without battery cable $268.95 1 usually ships 13-17 days
35 375-9666 Washer D5 inox $3.17 6 usually ships 13-17 days
36 375-1731 Bridge battery $25.96 1 usually ships 13-17 days
37 375-5486 Screw $0.22 6 usually ships 13-17 days
38 375-5493 Cover $109.01 1 usually ships 13-17 days
39 375-5391 Washer 12D $3.17 3 usually ships 13-17 days
40 375-2856 Screw M3 x 25 hex head $4.36 2 usually ships 13-17 days
41 999-1222 Screw M3-.5 x 10mm pan head stainless steel $0.99 1 ships same day
42 375-5520 Relay circuiboard $310.42 1 usually ships 13-17 days
43 375-9680 Screw M4 x 10 inox $4.36 1 usually ships 13-17 days
44 999-1419 Nut M3-.5 hex stainless steel $0.99 2 ships same day
45 375-5420 Screw 5x16 pan torx head (Tennant Industrial) $3.66 7 usually ships 13-17 days
46 375-5494 Rubber key holder $0.44 1 usually ships 13-17 days
47 375-9544 Screw 5 x 12 $4.36 2 ships same day
48 375-5495 Bridge harness without charger $5.28 1 usually ships 13-17 days
49 375-5496 Key strap $3.17 1 usually ships 13-17 days
50 375-5498 Washer $0.33 4 usually ships 13-17 days
51 375-5524 Washer $0.22 6 usually ships 13-17 days
52 375-9819 24V 70A relay $59.95 2 usually ships 13-17 days
53 375-9805 100A contactor $126.94 1 usually ships 13-17 days
54 375-9803 50A fuse $32.89 1 usually ships 13-17 days
55 375-5463 5amp fuse $25.52 1 usually ships 13-17 days
56 375-1728 2amp fuse $1.32 2 usually ships 13-17 days
57 375-9238 30Ah fuse (TENNANT INDUSTRIAL) $3.96 1 usually ships 13-17 days
58 375-5505 ec-H2O switch $9.02 1 (pad assist with ec-H2O) usually ships 13-17 days
59 375-5506 Cover $21.78 1 (pad assist with ec-H2O) usually ships 13-17 days
60 375-5507 Green LED $44.99 1 (pad assist with ec-H2O) usually ships 13-17 days
61 375-5508 Red LED $44.99 1 (pad assist with ec-H2O) usually ships 13-17 days
62 375-5451 Decal kit $96.14 1 (pad assist with ec-H2O) usually ships 13-17 days
63 375-9821 30A fuse $13.42 1 ships same day
64 375-5525 M8 eyelets $61.05 1 usually ships 13-17 days
65 375-5510 Battery terminal boot (red) $4.49 2 usually ships 13-17 days
66 375-5511 Battery terminal boot (black) $2.38 2 usually ships 13-17 days
