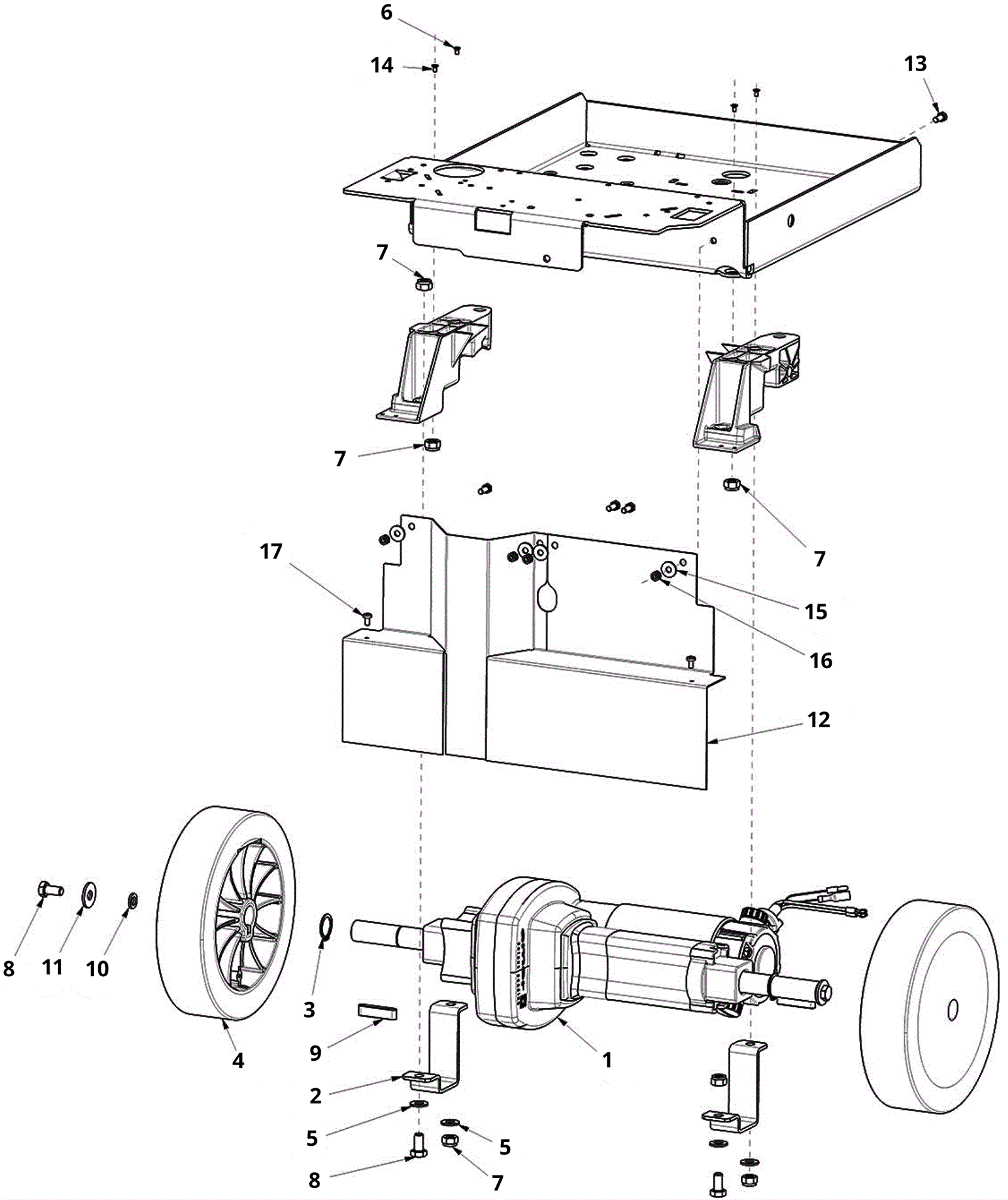

T291 Wheel Assembly - Propel Model

#PartDescriptionPriceReqNotesAvailability
1a 375-5433 Transaxle assembly $813.45 1 usually ships 10-16 days
1b 375-8007 Carbon brush (2pc) $35.31 2 usually ships 10-16 days
2 375-5434 Traction motor support bracket $5.72 2 usually ships 10-16 days
3 375-9768 Circlip $4.49 2 usually ships 10-16 days
4 375-8002 Wheel $154.77 2 usually ships 10-16 days
5 375-9652 Washer D. 8 inox $2.90 4 usually ships 10-16 days
6 999-0771 Screw M8-1.25 x 40mm flat head socket $2.48 2 ships same day
7 999-1651 Nut M8-1 hex stainless steel $2.83 6 ships same day
8 375-9684 Screw M8 x 16 $3.96 4 usually ships 10-16 days
9 375-8009 Key $5.50 2 usually ships 10-16 days
10 375-9732 Washer D8 $2.90 2 usually ships 10-16 days
11 375-9615 Washer D. 8 x 24 inox $2.90 2 ships same day
12 375-5435 Motor skirt $7.92 1 usually ships 10-16 days
13 375-1709 Screw M5 x 12 inox $3.96 4 usually ships 10-16 days
14 375-5436 Screw M8x55 stainless steel $0.99 2 usually ships 10-16 days
15 375-9500 Washer D. 5 x 14 inox $2.90 4 usually ships 10-16 days
16 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
17 375-9638 Screw M4 x 8 $3.96 2 usually ships 10-16 days
