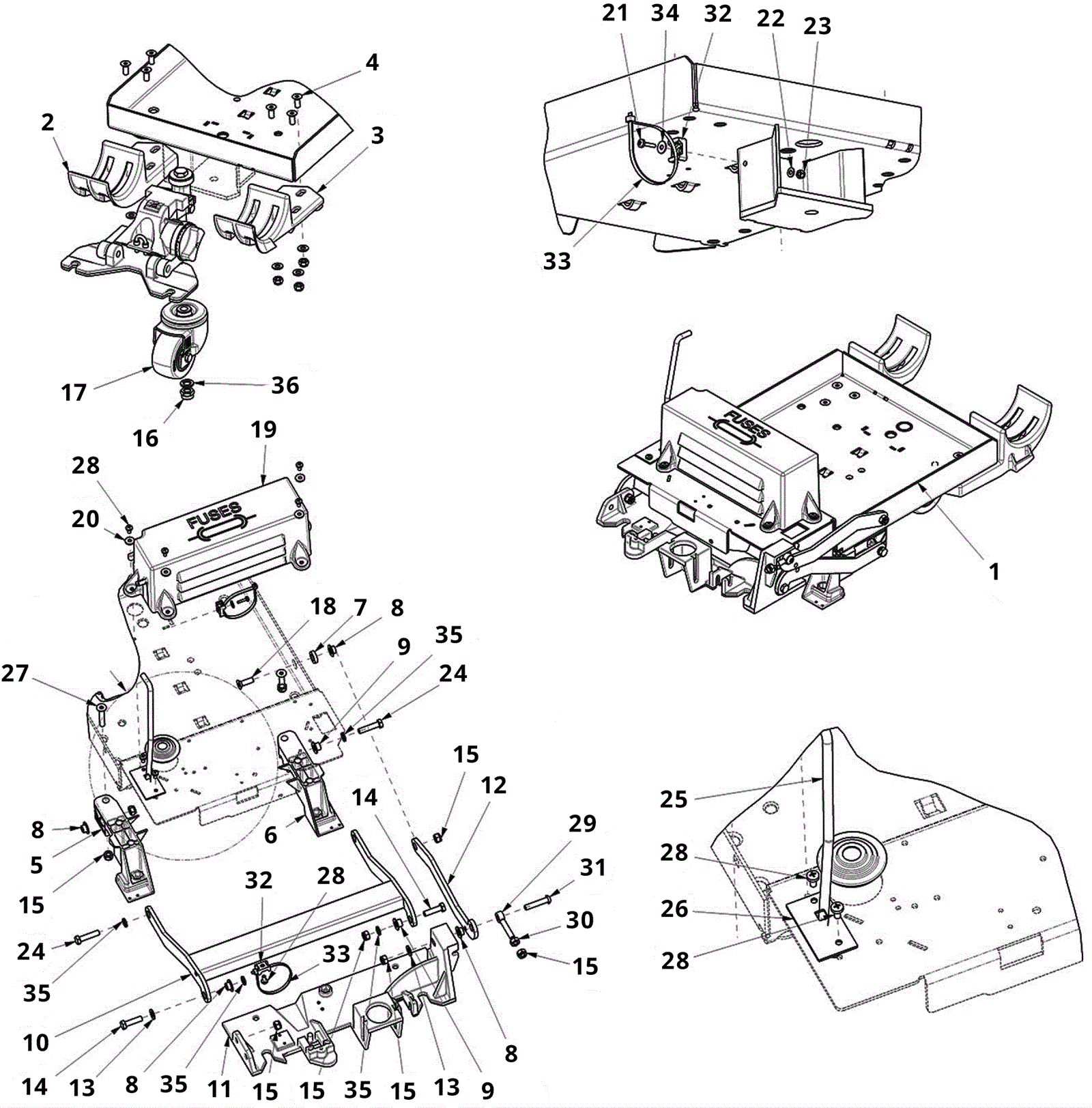

T291 Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 375-5371 Frame weldment $207.57 1 usually ships 10-16 days
2 375-5372 Support $19.14 1 usually ships 10-16 days
3 375-5373 Support $18.26 1 usually ships 10-16 days
4 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 6 ships same day
5 375-5374 Support $12.98 1 usually ships 10-16 days
6 375-5375 Support $12.98 1 usually ships 10-16 days
7 375-5376 Spacer $2.24 1 usually ships 10-16 days
8 375-9724 Brush deck support bushing $5.50 4 usually ships 10-16 days
9 375-5377 Flange bushing $5.50 2 usually ships 10-16 days
10 375-5378 Arm weldment $53.68 1 usually ships 10-16 days
11 375-5379 Brush head support bracket $42.35 1 usually ships 10-16 days
12 375-5380 Brush link $10.89 1 usually ships 10-16 days
13 375-9652 Washer D. 8 inox $2.90 8 usually ships 10-16 days
14 375-5381 Screw M8x30 $0.99 2 usually ships 10-16 days
15 999-1651 Nut M8-1 hex stainless steel $2.83 15 ships same day
16 375-9712 Nut M12 inox $3.43 1 usually ships 10-16 days
17 375-5382 Caster wheel $138.60 1 usually ships 10-16 days
18 999-6699 Screw M8-1.25 x 25mm flat socket head stainless steel $1.47 1 usually ships 12-18 days
19 375-5383 Electric box cover $16.50 1 usually ships 10-16 days
20 375-9500 Washer D. 5 x 14 inox $2.90 4 usually ships 10-16 days
21 375-9618 Screw M4 x 16 $3.96 1 usually ships 10-16 days
22 375-9531 Washer D. 4 inox $2.90 1 usually ships 10-16 days
23 999-1619 Nut M4 hex stainless steel $0.99 1 usually ships 12-18 days
24 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
25 375-5384 Tank rod $4.88 1 usually ships 10-16 days
26 375-5385 Plate $5.41 1 usually ships 10-16 days
27 999-1608 Screw M8-1.25 x 45mm socket head stainless steel $2.38 2 usually ships 1-5 days
28 375-5386 Screw M4x8 pan head phillips $0.99 7 usually ships 10-16 days
29 375-5387 Eye bolt M8x50mm $3.30 1 usually ships 10-16 days
30 999-1651 Nut M8-1 hex stainless steel $2.83 1 ships same day
31 375-5388 Screw M8x40mm $0.99 1 usually ships 10-16 days
32 375-5389 Support clamp $0.99 2 usually ships 10-16 days
33 375-5390 Cable tie $1.32 2 usually ships 10-16 days
34 375-5391 Washer 12D $2.90 1 usually ships 10-16 days
35 375-9732 Washer D8 $2.90 4 usually ships 10-16 days
36 375-5392 Washer $2.90 1 usually ships 10-16 days
