| # | Part | Description |
Req | Notes | Availability |
|---|

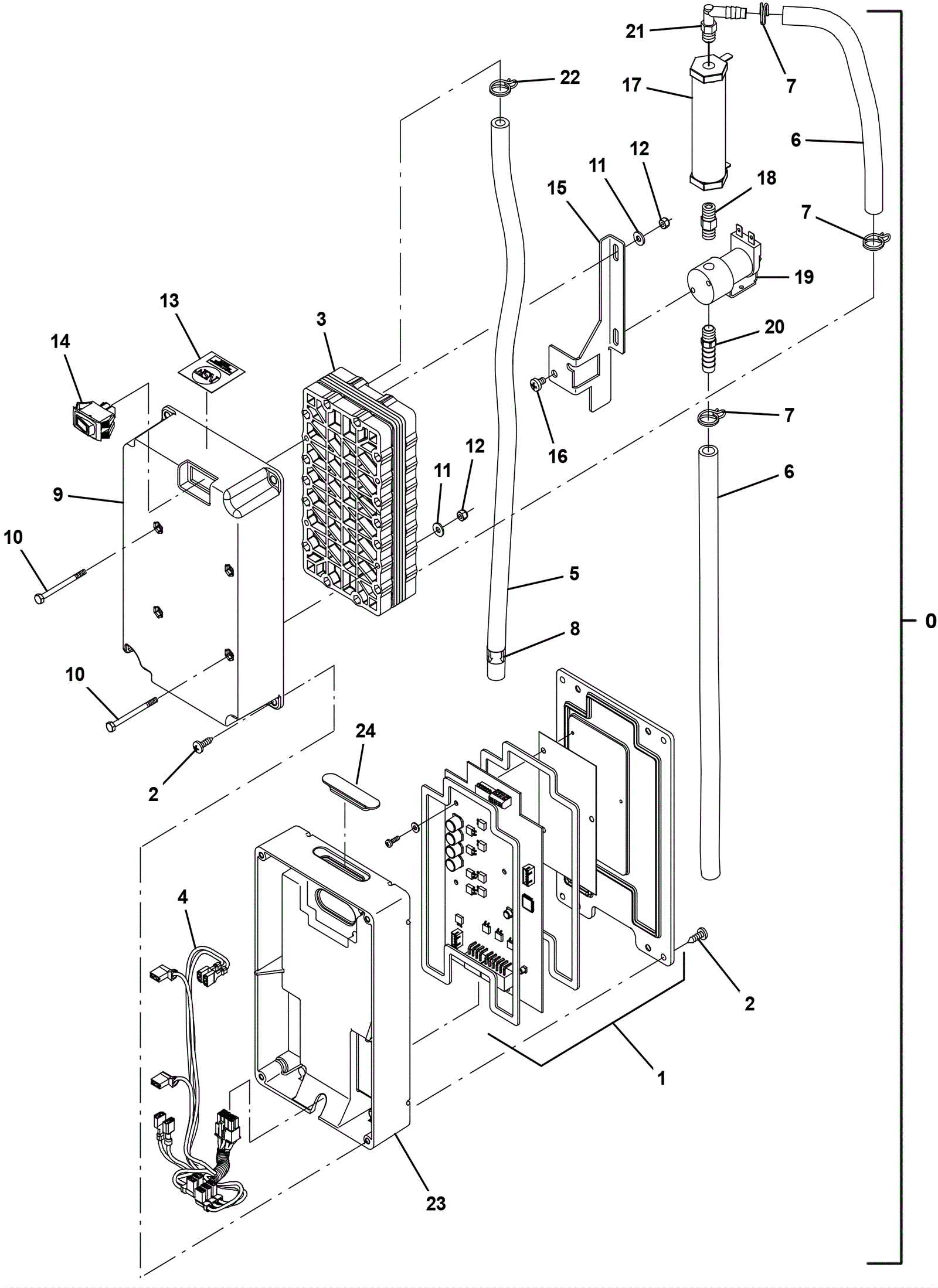

0 |
275-7912
|
ec-H2O module kit (Tennant Industrial) |
1 |
(includes 1-24) |
|
1 |
275-4775
|
Controller replacement kit (ec-H2O) |
1 |
|
|
2 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
8 |
|
|
3a |
275-2630
|
Ec-H20 plumbing kit |
1 |
(includes 3b-22) |
|
3b |
275-4956
|
5 plate electrode |
1 |
|
|
4 |
275-4958
|
Main wiring harness |
1 |
|
|
5 |
275-4939
|
1 foot PVC hose clear |
1 |
|
|
6 |
275-2631
|
2 foot PVC hose (braided) |
1 |
|
|
7 |
275-2632
|
Hose clamp (yellow) (Tennant Industrial) |
3 |
|
|
8 |
275-5731
|
Direction decal |
1 |
|
|
9 |
275-4957
|
Front module housing |
1 |
|
|
10 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
4 |
|
|
11 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
12 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
13 |
275-2633
|
Ec-H20 module decal |
1 |
|
|
14 |
275-4773
|
Rocker switch |
1 |
|
|
15 |
275-2634
|
Large valve bracket (Tennant Industrial) |
1 |
|
|
16 |
275-2635
|
Screw 10-32 x .31 flat head phillips |
2 |
|
|
17 |
275-9936
|
Cylindrical electrode |
1 |
|
|
18 |
275-4770
|
Straight brass fitting |
1 |
|
|
19 |
275-2636
|
Solenoid valve (Tennant Industrial) |
1 |
|
|
20 |
175-8707
|
Strainer plastic fitting |
1 |
|
|
21 |
275-2637
|
90 degree nylon elbow fitting (Tennant Industrial) |
1 |
|
|
22 |
175-3671
|
Hose clamp |
1 |
|
|
23 |
275-4761
|
Rear module housing |
1 |
|
|
24 |
275-2638
|
Grommet |
1 |
|
|
