| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

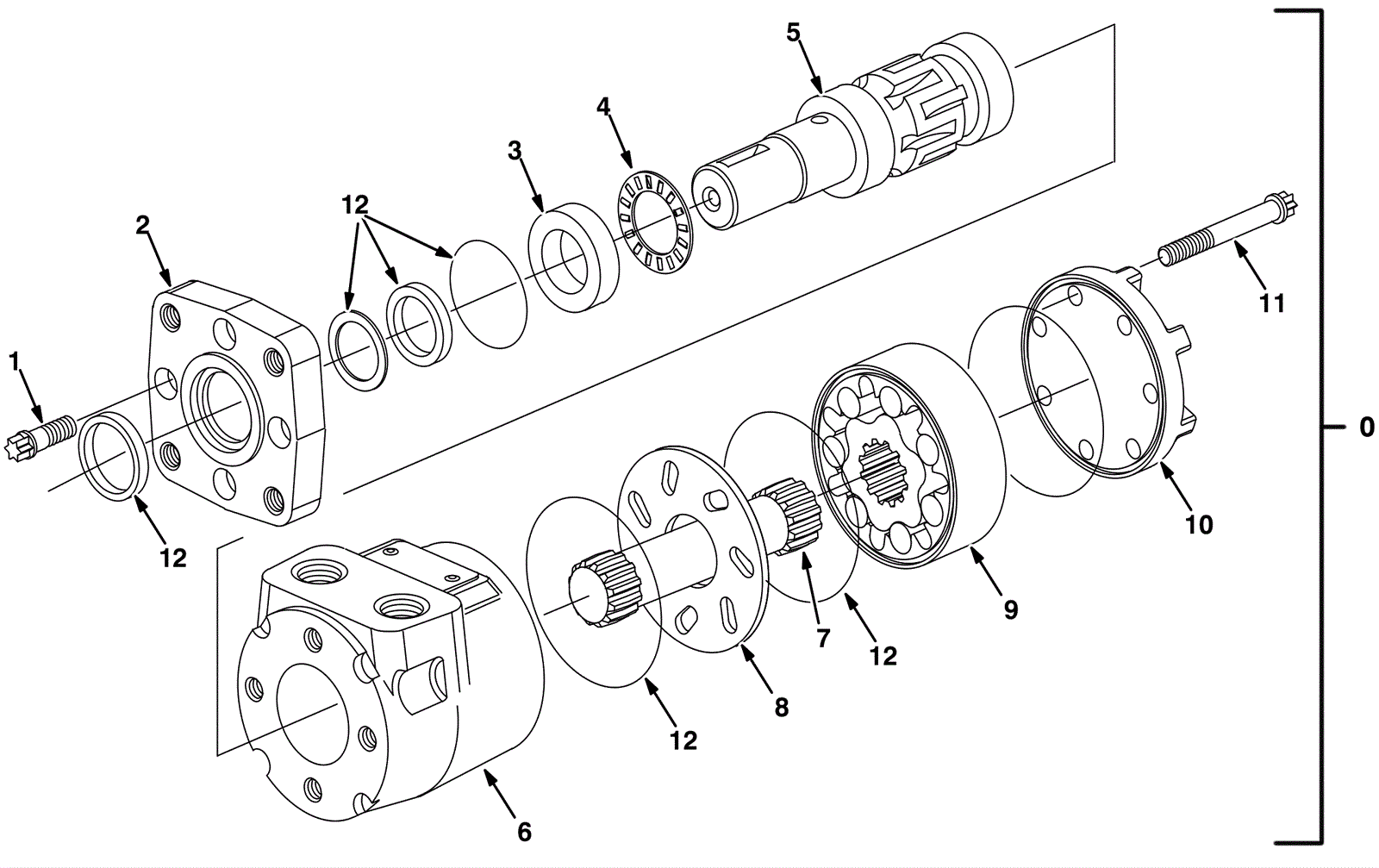

275-8310
|
MOTOR, HYD, GEAR, INT (Tennant Industrial) |
1 |
(includes 1-12) |
|
1 |
175-8249
|
Screw |
4 |
|
|
2 |
275-0945
|
Mounting 2-bolt flange (OBSOLETE) |
1 |
|
|
3 |
175-8246
|
Thrust race |
1 |
|
|
4 |
175-8245
|
Bearing thrust |
1 |
|
|
5 |
275-8797
|
Output shaft (Tennant Industrial) (OBSOLETE) |
1 |
|
|
6 |
N/A
|
Not available |
1 |
(motor housing) |
|
7 |
275-9070
|
Main drive (OBSOLETE) |
1 |
|
|
8 |
N/A
|
Not available |
1 |
(motor spacer) |
|
9 |
375-5187
|
Geroler assembly |
1 |
|
|
10 |
275-8798
|
VR, CAP, END (Tennant Industrial) (OBSOLETE) |
1 |
|
|
11 |
375-5175
|
Cap screw |
7 |
|
|
12 |
275-8800
|
VR, SEAL KIT, MOTOR (Tennant Industrial) |
1 |
|
|
