| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-8715
|

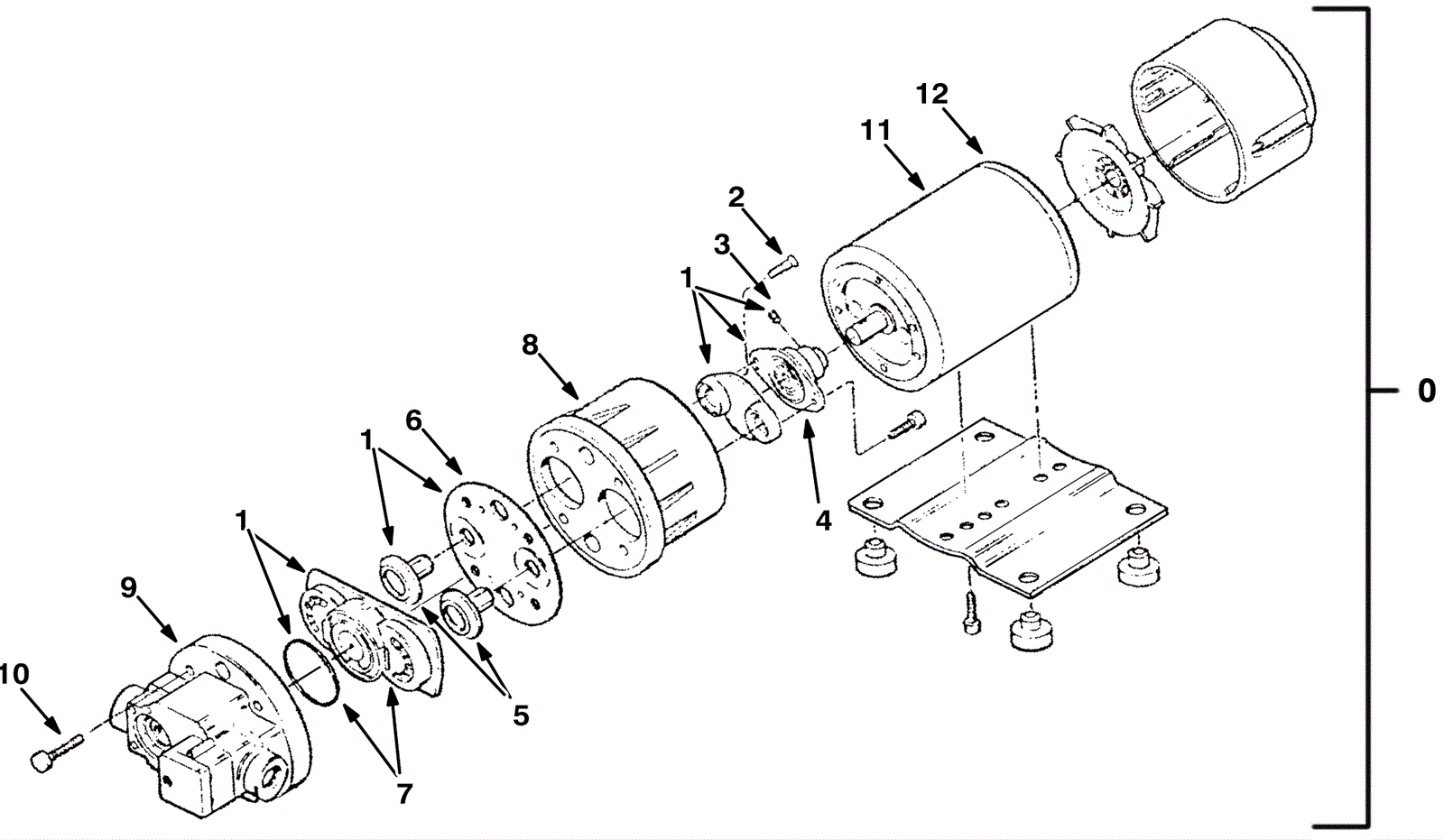

PUMP ASSY, WAND, POWER (Tennant Industrial) |
1 |
(includes 1-12) |
|
1 |
N/A
|
Not available |
1 |
(seal kit) |
|
2 |
N/A
|
Not available |
1 |
(screw) |
|
3 |
N/A
|
Not available |
1 |
(screw) |
|
4 |
275-4346
|
Cam, bearing, diaphram kit (Tennant Industrial) (OBSOLETE) |
1 |
|
|
5 |
N/A
|
Not available |
1 |
(piston) |
|
6 |
375-2586
|
Diaphragm kit (Tennant Industrial) |
1 |
|
|
7 |
N/A
|
Not available |
1 |
(check valve assembly) |
|
8 |
375-2587
|
Bearing cover |
1 |
|
|
9 |
275-4351
|
VR, SWITCH ASSY, PUMP, WATER (Tennant Industrial) |
1 |
|
|
10 |
N/A
|
Not available |
1 |
(pump screw) |
|
11 |
275-4353
|
VR, MOTOR, ELE, 36VDC, WATER PUMP (Tennant Industrial) |
1 |
|
|
12 |
275-4354
|
VR, BRUSH, MOTOR, WATER PUMP (Tennant Industrial) |
1 |
|
|
N/S |
175-8753
|
Female connector |
2 |
(included with 0) |
|
N/S |
175-8755
|
TERMINAL, FEM, MP280, SEALED, 18-16GA (Tennant Industrial) |
2 |
(included with 0) |
|
N/S |
175-8754
|
14/16 wire seal |
2 |
(included with 0) |
|
