| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-2461
|

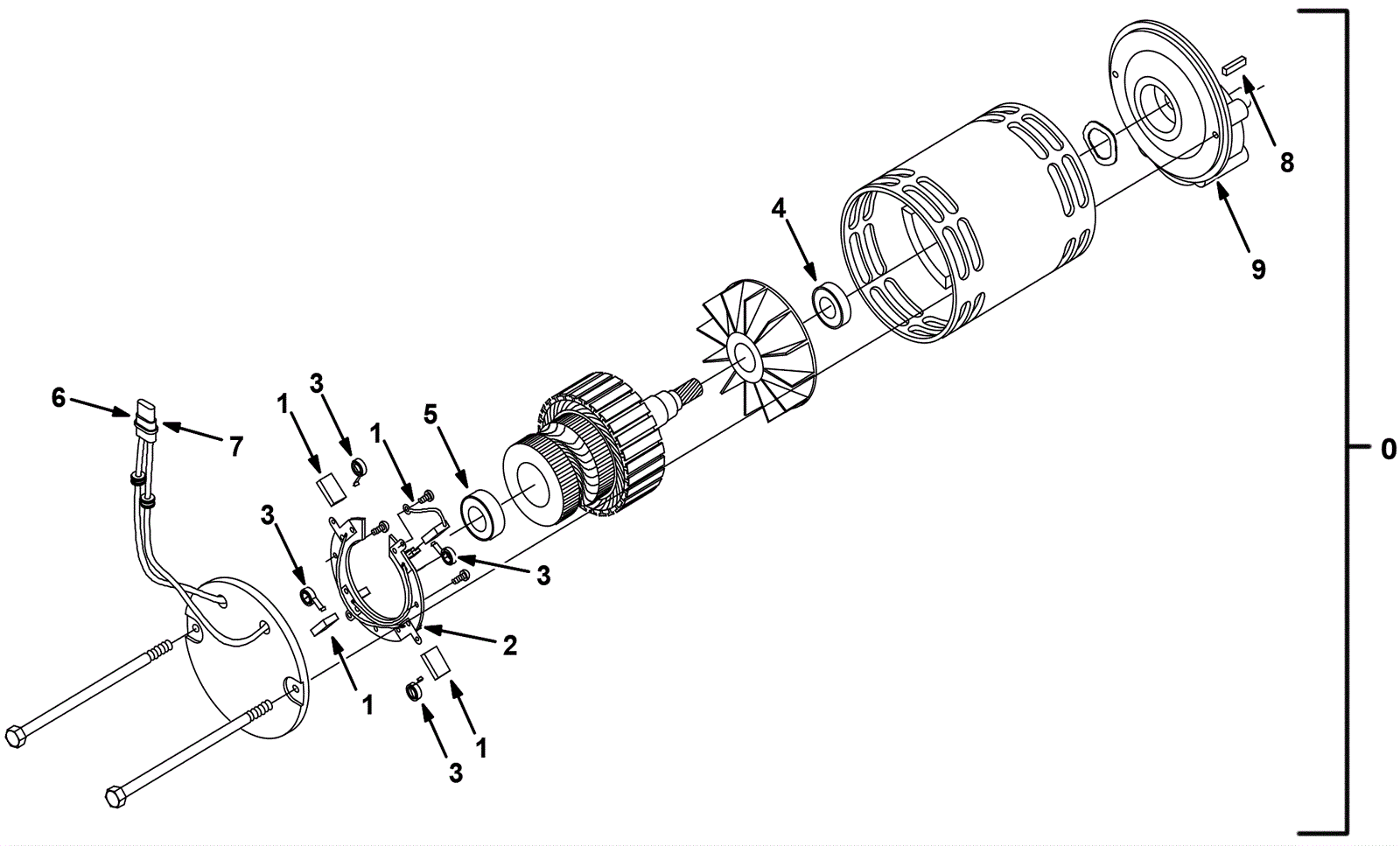

1.5Hp 36V motor (Tennant Industrial) |
1 |
(includes 1-9) |
|
1 |
275-8810
|
Carbon brush (Tennant Industrial) |
4 |
|
|
2 |
275-9078
|
Brush assembly (Tennant Industrial) |
1 |
|
|
3 |
275-8811
|
VR, BRUSH, SPRING (Tennant Industrial) |
4 |
|
|
4 |
275-9077
|
Bearing (Tennant Industrial) |
1 |
|
|
5 |
275-1236
|
Bearing |
1 |
|
|
6 |
175-5293
|
Female connector |
1 |
|
|
7 |
175-5365
|
Female terminal |
2 |
|
|
8 |
175-5356
|
Square keyway |
1 |
|
|
9 |
175-7927
|
Gearbox |
1 |
|
|
