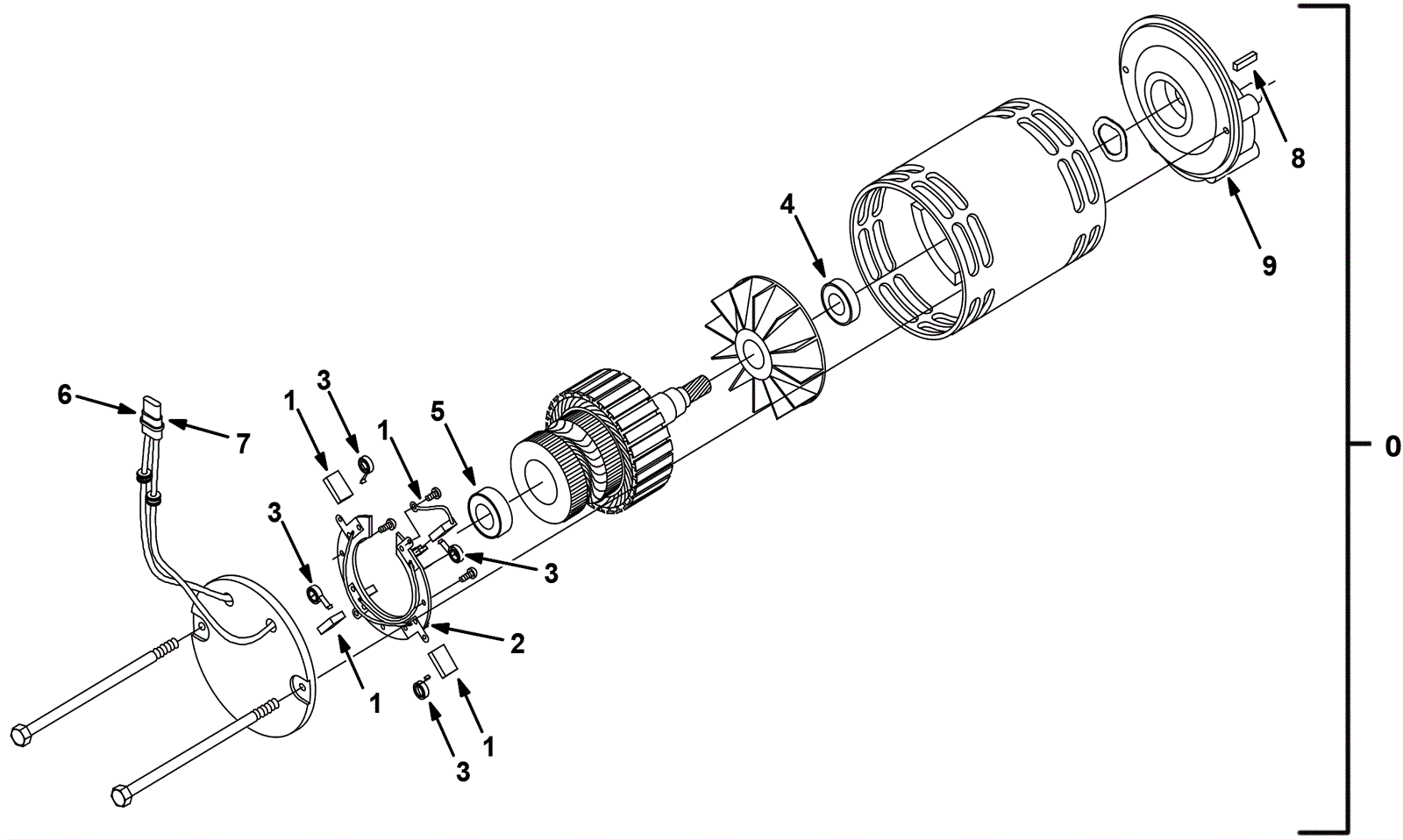

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-2461
|
1.5Hp 36V motor (Tennant Industrial) |
1 |
(includes 1-9) |
|
1 |
275-9057
|
Carbon brush kit (OBSOLETE) |
1 |
|
|
2 |
275-8769
|
VR, RING ASSY, BRUSHHOLDER (Tennant Industrial) (OBSOLETE) |
1 |
(includes 3) |
|
3 |
275-8774
|
VR, SPRING, BRUSH (Tennant Industrial) (OBSOLETE) |
4 |
|
|
4 |
N/A
|
Not available |
1 |
(bearing) |
|
5 |
275-4328
|
VR, BEARING, MOTOR, ELE (Tennant Industrial) |
1 |
|
|
6 |
175-5293
|
Female connector |
1 |
|
|
7 |
175-5365
|
Female terminal |
2 |
|
|
8 |
175-5356
|
Square keyway |
1 |
|
|
9 |
275-9058
|
Motor gearbox (OBSOLETE) |
1 |
|
|
