| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

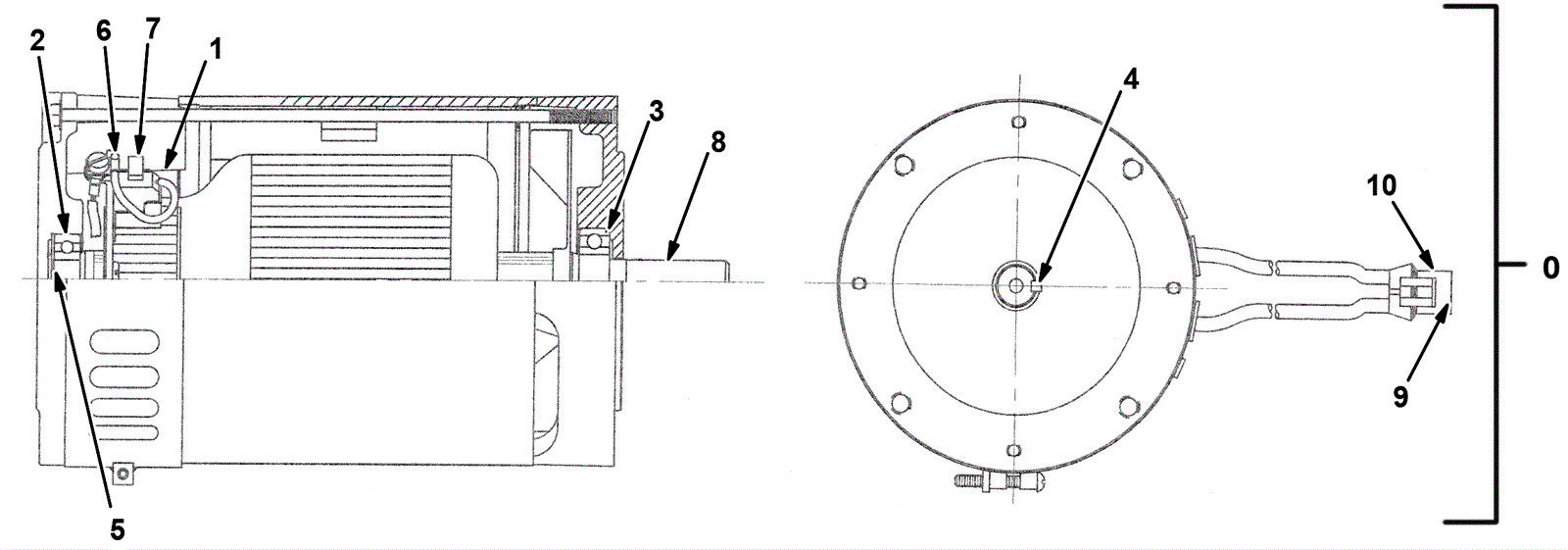

275-2566
|
Electric Motor - 1.5 HP 36 Volt (Tennant Industrial) |
1 |
(includes 1-10) |
|
1 |
275-4327
|
VR, BRUSH, MOTOR, ELE (Tennant Industrial) |
4 |
|
|
2 |
275-4328
|
VR, BEARING, MOTOR, ELE (Tennant Industrial) |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(bearing) |
|
4 |
275-0085
|
Square key .19 x .19 1.25l |
1 |
(includes 5) |
|
5 |
275-8770
|
VR, SPRING, BRG (Tennant Industrial) |
1 |
|
|
6 |
275-8771
|
VR, RING, BRUSH, MOTOR, ELE (Tennant Industrial) |
1 |
|
|
7 |
275-8772
|
VR, SPRING, MOTOR, ELE (Tennant Industrial) |
4 |
|
|
8 |
275-8773
|
VR, ARMATURE, MOTOR [OHIO] (Tennant Industrial) |
1 |
|
|
9 |
175-5365
|
Female terminal |
2 |
|
|
10 |
175-5293
|
Female connector |
1 |
|
|
