| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

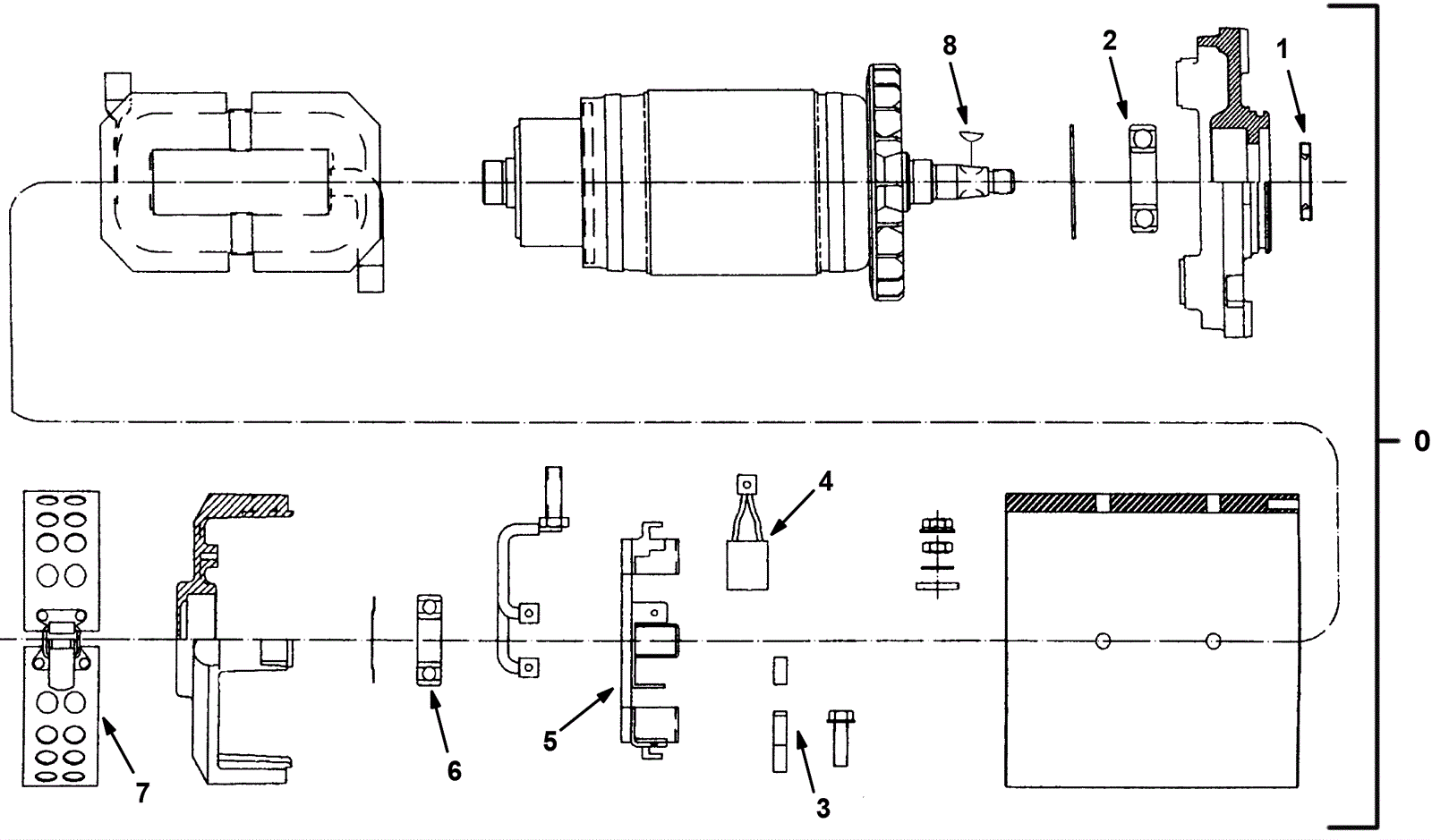

175-0611
|
MOTOR, ELE, 36VDC 2000RPM 3.00HP (Tennant Industrial) |
1 |
(includes 1-8) |
|
1 |
275-4333
|
VR, SEAL, ARMATURE, MOTOR, ELE [AV] (Tennant Industrial) |
1 |
|
|
2 |
275-4334
|
VR, BEARING, BALL, MOTOR, ELE [AV] (Tennant Industrial) |
1 |
|
|
3 |
275-0186
|
Electric motor brush spring |
4 |
|
|
4a |
275-4335
|
Propelling motor brush kit |
1 |
(includes 4b) |
|
4b |
275-5046
|
Brush |
4 |
|
|
5 |
275-4336
|
VR, BRUSHHOLDER, MOTOR, ELE [AV] (Tennant Industrial) |
1 |
|
|
6 |
275-0187
|
Electric motor ball bearing |
1 |
|
|
7 |
275-4337
|
VR, BAND, BRUSH COVER [AV] (Tennant Industrial) |
1 |
|
|
8 |
275-4338
|
KEY, WOODRUFF, 0.16 0.62 [ASA#0505] (Tennant Industrial) |
1 |
|
|
