| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

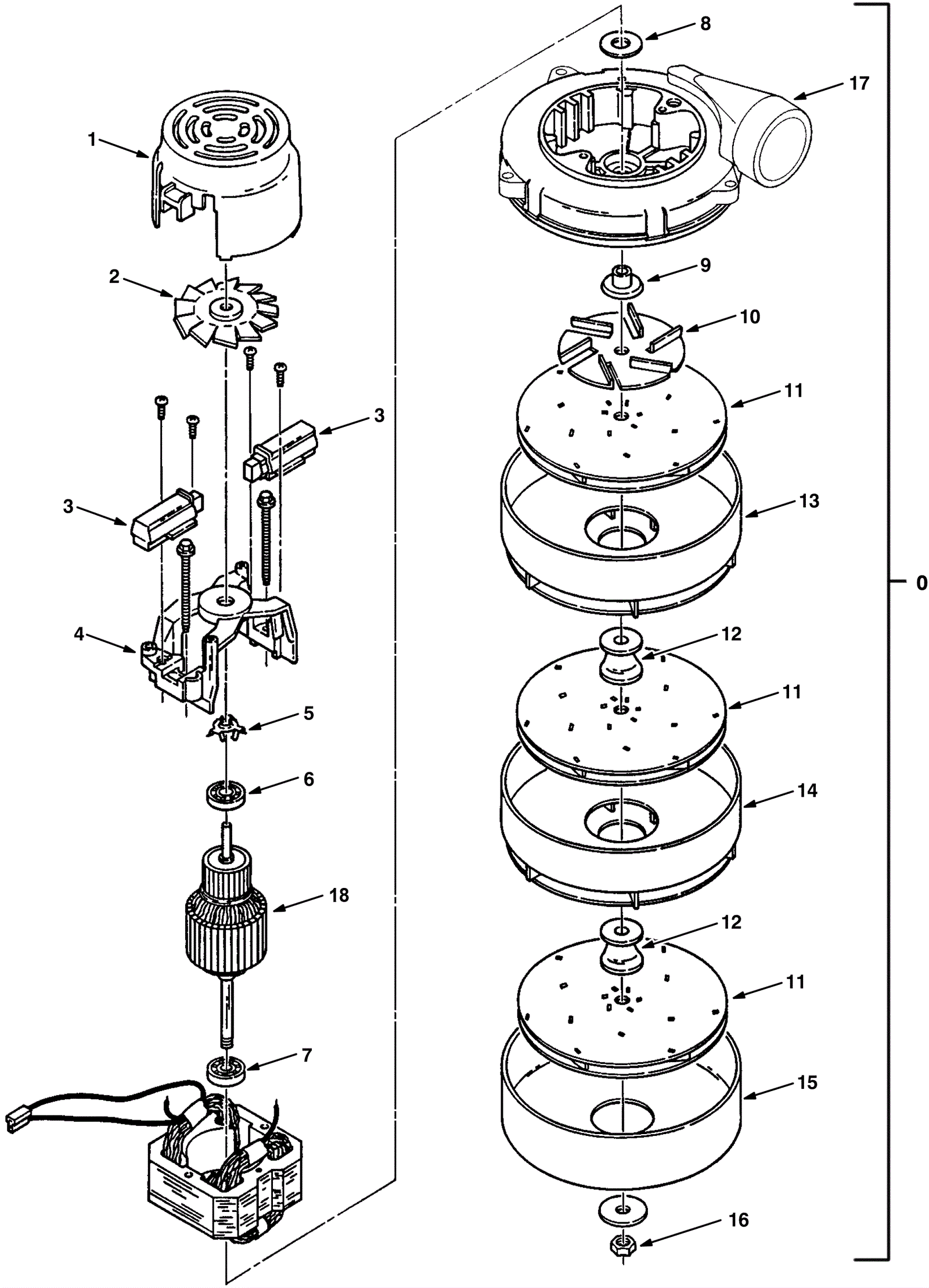

275-5200
|
36V 3 stage vacuum motor kit |
1 |
(includes 1-18) |
|
1 |
175-5275
|
Housing |
1 |
|
|
2 |
175-5276
|
Fan |
1 |
|
|
3 |
575-2509
|
LINK, LIFT, BRUSH (Tennant Industrial) |
2 |
|
|
4 |
175-5278
|
Commuicator bracket (OBSOLETE) |
1 |
|
|
5 |
175-5279
|
Spring |
1 |
|
|
6 |
275-0184
|
Bearing |
1 |
|
|
7 |
175-5281
|
Bearing |
1 |
|
|
8 |
175-5282
|
Washer neoprene |
1 |
|
|
9 |
175-5283
|
Spacer |
1 |
|
|
10 |
175-5284
|
Fan |
1 |
|
|
11 |
175-5285
|
Vacuum fan |
3 |
|
|
12 |
175-5286
|
Spacer |
2 |
|
|
13 |
175-5287
|
Stationary fan |
1 |
|
|
14 |
175-5288
|
Stationary fan |
1 |
|
|
15 |
175-5289
|
Shell |
1 |
|
|
16 |
175-5290
|
Nut |
1 |
|
|
17 |
175-5291
|
Fan end bracket |
1 |
|
|
18 |
175-5292
|
Armature |
1 |
|
|
N/S |
164-0881
|
Vacuum motor gasket |
1 |
(included with 0) |
|
N/S |
175-5293
|
Female connector |
1 |
(included with 0) |
|
N/S |
175-5294
|
Female terminal |
2 |
(included with 0) |
|
