| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

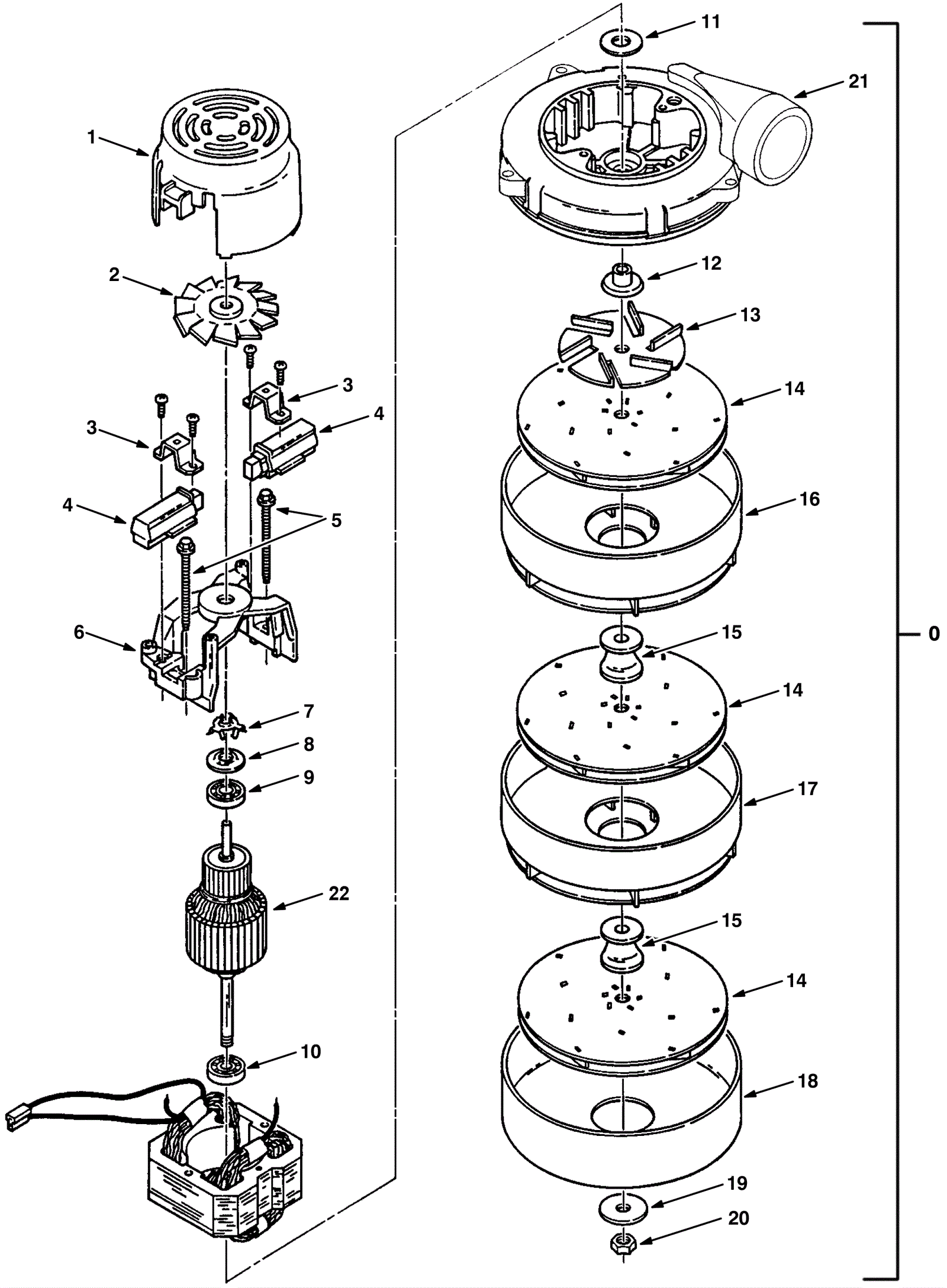

275-5200
|
36V 3 stage vacuum motor kit |
1 |
(includes 1-22) |
|
1 |
275-0172
|
Vacuum motor housing |
1 |
|
|
2 |
275-0173
|
Vacuum motor fan |
1 |
|
|
3 |
275-0174
|
Brush holder clamp |
2 |
|
|
4 |
991-1222
|
Plastic covered carbon brush (sold individually) |
2 |
|
|
5 |
275-0175
|
Vacuum motor screw |
2 |
|
|
6 |
275-0176
|
Vacuum motor bracket |
1 |
|
|
7 |
175-5279
|
Spring |
1 |
|
|
8 |
275-0177
|
Vacuum motor armature disc |
1 |
|
|
9 |
275-0178
|
Vacuum motor bearing |
1 |
|
|
10 |
175-5281
|
Bearing |
1 |
|
|
11 |
175-5282
|
Washer neoprene |
1 |
|
|
12 |
275-0179
|
Vacuum impeller spacer |
1 |
|
|
13 |
175-5284
|
Fan |
1 |
|
|
14 |
175-5285
|
Vacuum fan |
3 |
|
|
15 |
275-0180
|
Vacuum fan impeller spacer |
2 |
|
|
16 |
175-5287
|
Stationary fan |
1 |
|
|
17 |
175-5288
|
Stationary fan |
1 |
|
|
18 |
275-0181
|
Vacuum fan shell |
1 |
|
|
19 |
275-0182
|
VR, WASHER (Tennant Industrial) |
1 |
|
|
20 |
175-5290
|
Nut |
1 |
|
|
21 |
175-5291
|
Fan end bracket |
1 |
|
|
22 |
275-0183
|
Motor armature |
1 |
|
|
N/S |
164-0881
|
Vacuum motor gasket |
1 |
(included with 0) |
|
N/S |
175-5293
|
Female connector |
1 |
(included with 0) |
|
N/S |
175-5294
|
Female terminal |
2 |
(included with 0) |
|
