| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-8743
|

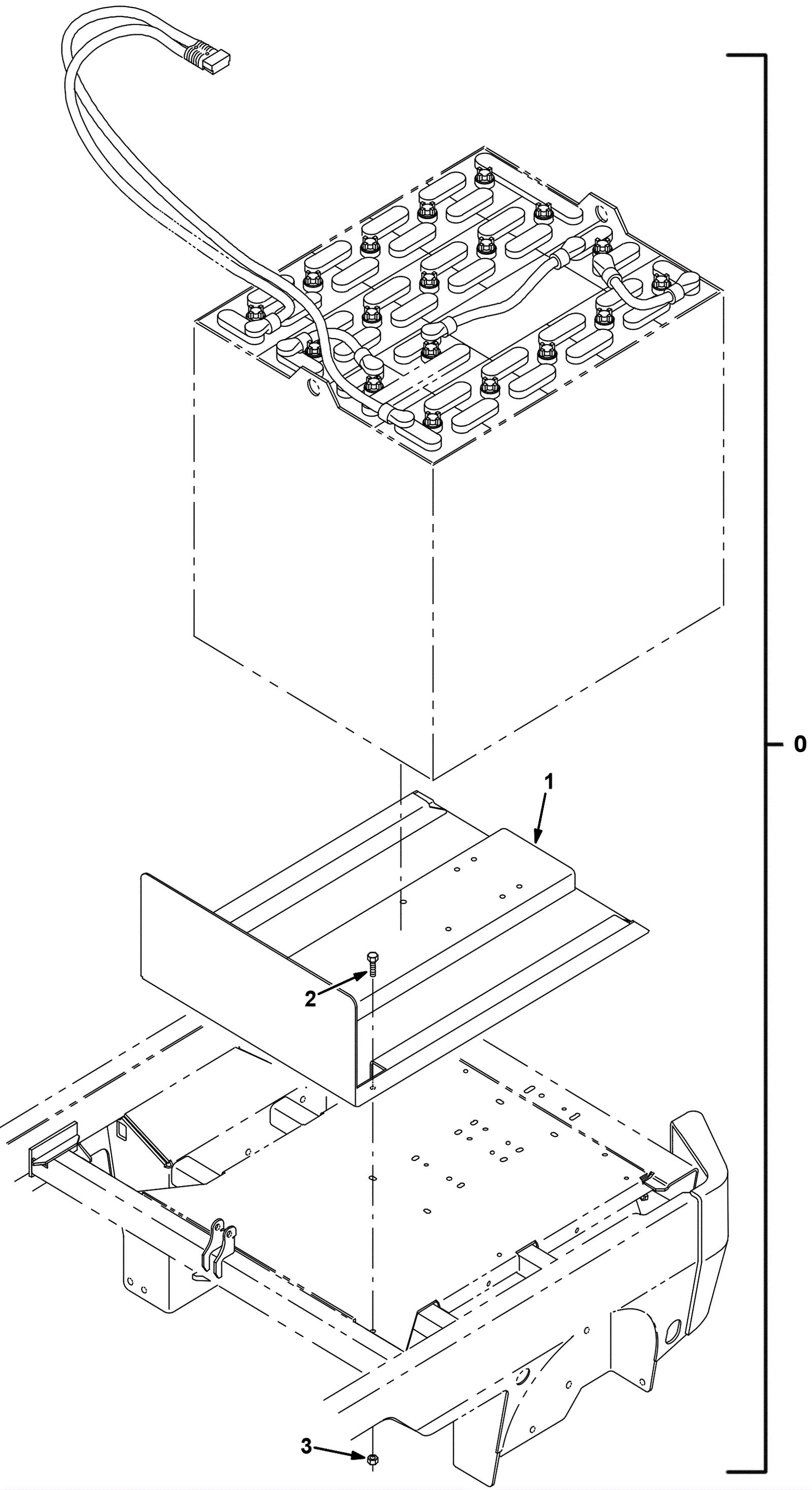

LIFT KIT, FORK, BATTERY, CI (Tennant Industrial) |
1 |
(includes 1-3) |
|
1 |
275-2626
|
Battery cradle weldment (gray) (Tennant Industrial) |
1 |
|
|
2 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
4 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
4 |
|
|
