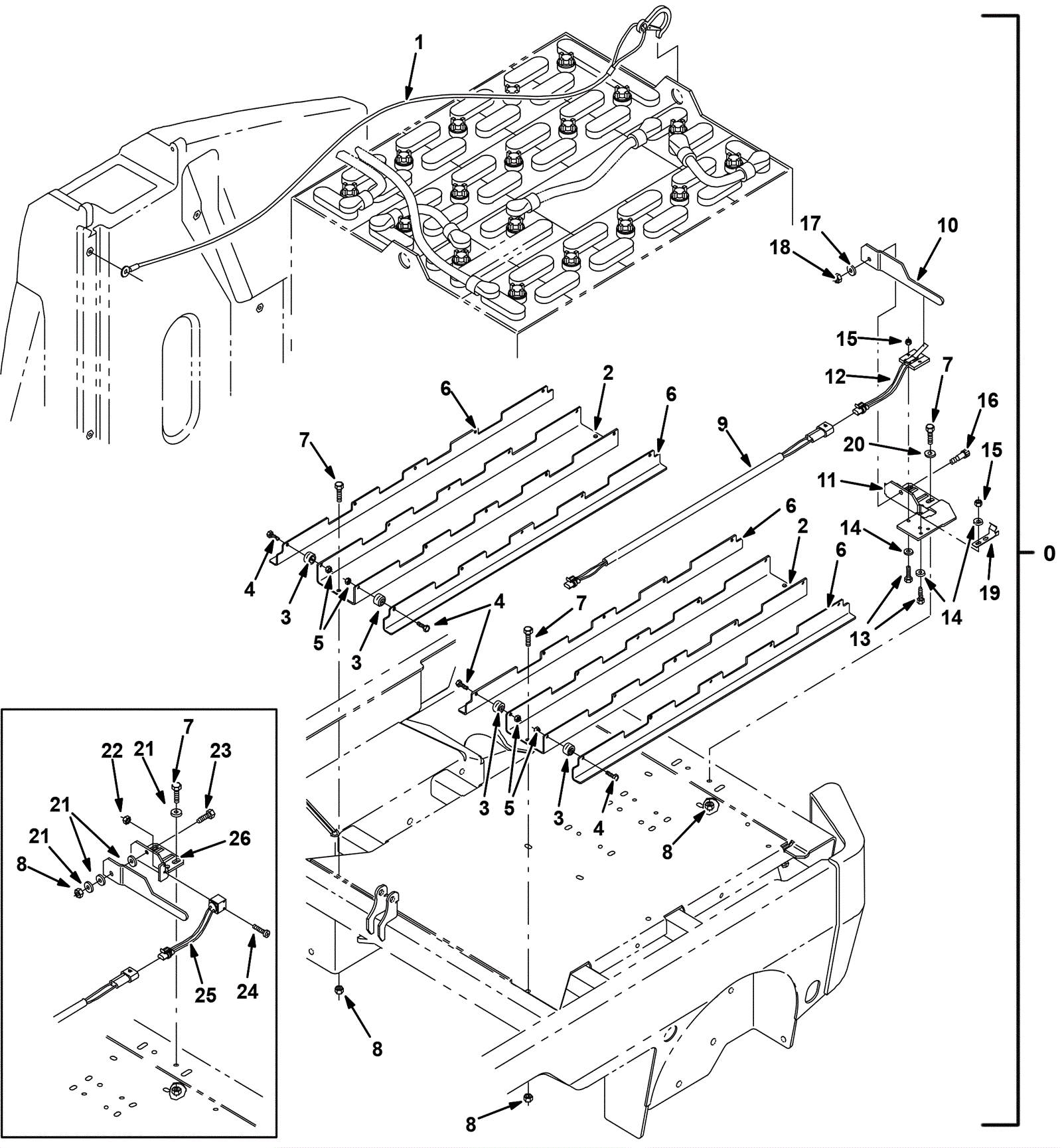

Battery Rollout Assembly

#PartDescription ReqNotesAvailability
0 275-8733 BATTERY KIT, R/O, CI (Tennant Industrial) 1 (includes 1-20)
1 275-8734 CABLE, GLV .19D 036.5L .38EYE / HOOK (Tennant Industrial) 1
2 275-2622 Battery channel (gray) (Tennant Industrial) 2
3 275-0003 Bearing 20
4 175-9662 Screw M6-1 x 35mm hex head stainless steel 20
5 999-0497 Nut M6-1 nylon insert lock stainless steel 20
6 275-2623 Battery angle (gray) (Tennant Industrial) 4
7 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 6
8 999-0496 Nut M8-1.25 nylon insert lock stainless steel 6
9 275-8737 HARNESS, BATTERY, R/O [7300/8300] (Tennant Industrial) 1
10 275-2624 Battery bar weldment (Tennant Industrial) 1
11 275-2625 Iron stop weldment (gray) (Tennant Industrial) 1 (after SN 001792)
12 275-8740 SWITCH, LIMIT, NO (Tennant Industrial) 1 (after SN 001792)
13 175-6939 Screw M5 x 16mm stainless steel 4 (after SN 001792)
14 999-0998 Washer #10 flat stainless steel 4 (after SN 001792)
15 999-0740 Nut M5-.8 hex stainless steel 4 (after SN 001792)
16 275-8741 BOLT, SHLD, .38D X 0.38, .31-18 (Tennant Industrial) 1 (after SN 001792)
17 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 1 (after SN 001792)
18 999-0278 Nut 5/16-18 nylon insert lock jam zinc plated 1 (after SN 001792)
19 275-8742 LATCH, HANDLE (Tennant Industrial) 1 (after SN 001792)
20 999-0355 175-2249 2 (after SN 001792)
21 999-0355 175-2249 5 (before SN 001793)
22 999-0954 Nut M4-.7 nylon insert lock stainless steel 5 (before SN 001793)
23 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 1 (before SN 001793)
24 175-2079 Screw M4-.07 x 35mm pan head stainless steel 2 (before SN 001793)
25 275-5093 LOCK ASSY KIT, BATTERY, R/O, REPLMT (Tennant Industrial) 1 (before SN 001793)
26 275-5093 LOCK ASSY KIT, BATTERY, R/O, REPLMT (Tennant Industrial) 1 (before SN 001793)
