| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
175-8759
|

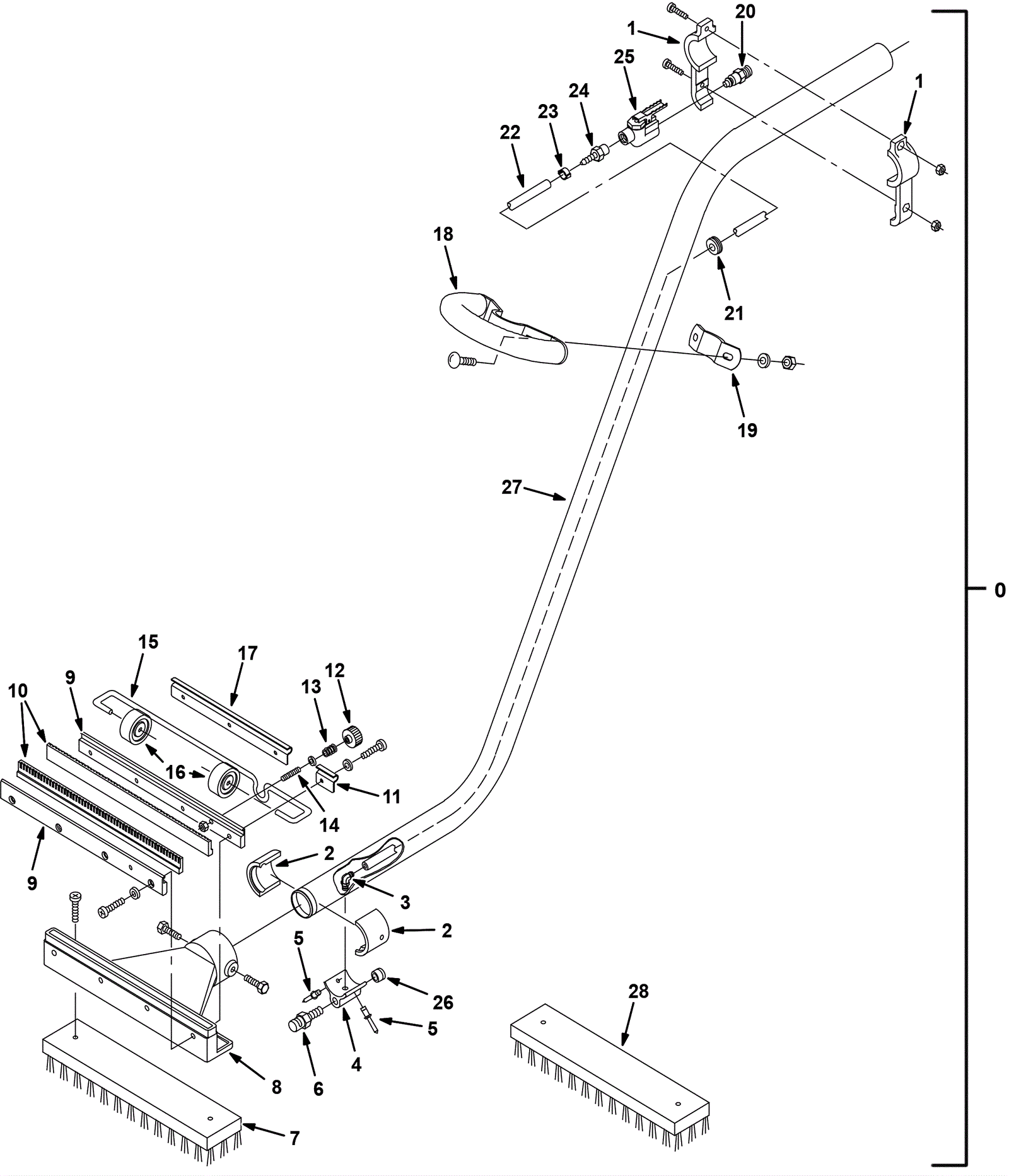

Deluxe power wand assembly |
1 |
(includes 1-27) |
|
1 |
175-6380
|
Valve mounting bracket |
1 |
|
|
2 |
175-6353
|
Head and wand adapter |
2 |
|
|
3 |
175-1662
|
90 degree elbow fitting |
1 |
|
|
4 |
175-6354
|
Spray nozzle adapter |
1 |
|
|
5 |
175-6355
|
Pop rivet |
2 |
|
|
6 |
175-6356
|
Spray nozzle |
1 |
|
|
7 |
175-9734
|
Polypropylene power wand brush with fastener (OBSOLETE) |
1 |
|
|
8 |
175-6358
|
Wand head (OBSOLETE) |
1 |
|
|
9 |
175-6361
|
Squeegee blade retainer |
2 |
|
|
10 |
175-6362
|
Squeegee blade 17 inch |
2 |
|
|
11 |
175-6363
|
Axle bracket |
1 |
|
|
12 |
175-1384
|
Thumb nut |
1 |
|
|
13 |
175-6364
|
Compression spring |
1 |
|
|
14 |
175-6366
|
Adjustment stud |
1 |
|
|
15 |
175-6368
|
Axle |
1 |
|
|
16 |
175-6369
|
Wheel (rubber) |
2 |
|
|
17 |
175-6370
|
Axle bracket |
1 |
|
|
18 |
175-6371
|
Wand handle |
1 |
|
|
19 |
175-6373
|
Handle bracket |
1 |
|
|
20 |
175-6374
|
Male quick connect plug |
1 |
|
|
21 |
175-6376
|
Grommet |
1 |
|
|
22 |
175-6377
|
Solution hose |
1 |
|
|
23 |
175-6378
|
Hose clamp |
2 |
|
|
24 |
175-6379
|
1/4 inch hose barb fitting |
1 |
|
|
25 |
175-1683
|
Water control valve |
1 |
|
|
26 |
175-6121
|
Brass plug |
1 |
|
|
27 |
175-6351
|
Double bend wand |
1 |
|
|
28 |
996-1269
|
Abrasive power wand brush with fastener |
1 |
|
|
