| # | Part | Description |
Req | Notes | Availability |
|---|
0 |

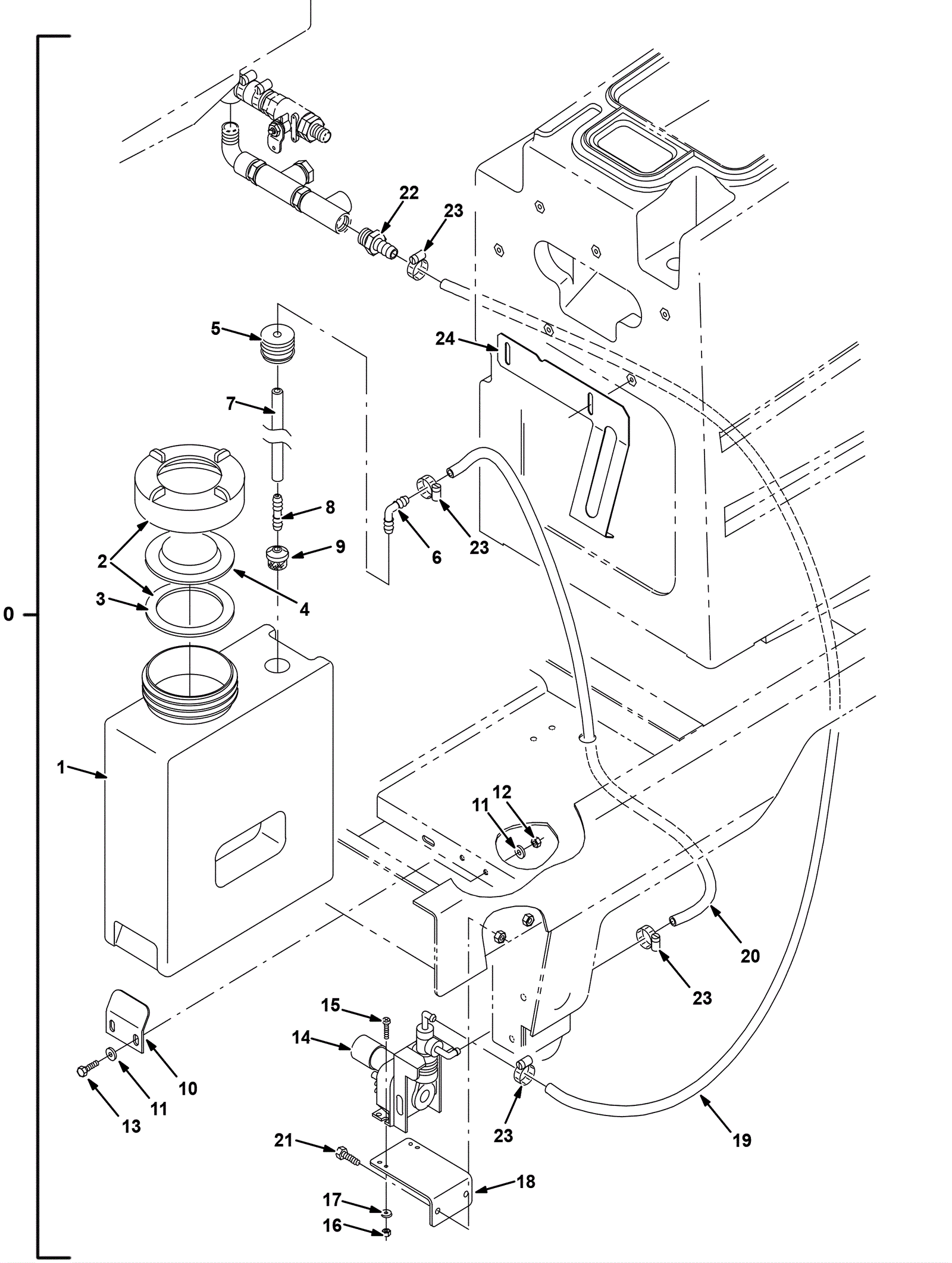

275-8700
|
METERING KIT, DETGT, CI (Tennant Industrial) |
1 |
(includes 1-24) |
|
1 |
275-8701
|
TANK, DETGT (Tennant Industrial) |
1 |
|
|
2 |
175-3384
|
Tank cap |
1 |
(includes 3) |
|
3 |
275-4663
|
Gasket |
1 |
|
|
4 |
175-3414
|
Tank cover |
1 |
|
|
5 |
275-8702
|
GROMMET, PYE, 0.37ID, F/1.5H, .13 MATL (Tennant Industrial) |
2 |
|
|
6 |
175-8716
|
FITTING, PLSTC, E90, BM06/BM06 (Tennant Industrial) |
1 |
|
|
7 |
175-6958
|
Hose PVC (Tennant Industrial) (OBSOLETE) |
1 |
|
|
8 |
275-8703
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
9 |
275-8704
|
SCREEN, PUMP (Tennant Industrial) |
1 |
|
|
10 |
275-2610
|
Detergent tank mounting plate (gray) (Tennant Industrial) |
1 |
|
|
11 |
999-0355
|
175-2249 |
4 |
|
|
12 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
2 |
|
|
13 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
14 |
275-8706
|
PUMP, DETGT, 36VDC (Tennant Industrial) |
1 |
|
|
15 |
175-5326
|
Screw M4-.7 x 20mm pan head phillips stainless steel |
4 |
|
|
16 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
17 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
18 |
275-2611
|
Detergent pump mounting angle (gray) (Tennant Industrial) |
1 |
|
|
19 |
275-8708
|
HOSE, PVC, BRD, 0.38ID 0.60OD 045.0L,CLR (Tennant Industria |
1 |
|
|
20 |
275-7845
|
8 foot clear PVC hose (Tennant Industrial) |
1 |
|
|
21 |
999-0786
|
Screw M8-1.25 x 35mm hex head stainless steel |
2 |
|
|
22 |
275-8710
|
Straight plastic fitting (Tennant Industrial) |
1 |
|
|
23 |
175-3594
|
Hose clamp |
4 |
|
|
24 |
275-8711
|
BRACKET, RETAINING, TANK, DETGT (Tennant Industrial) |
1 |
|
|
