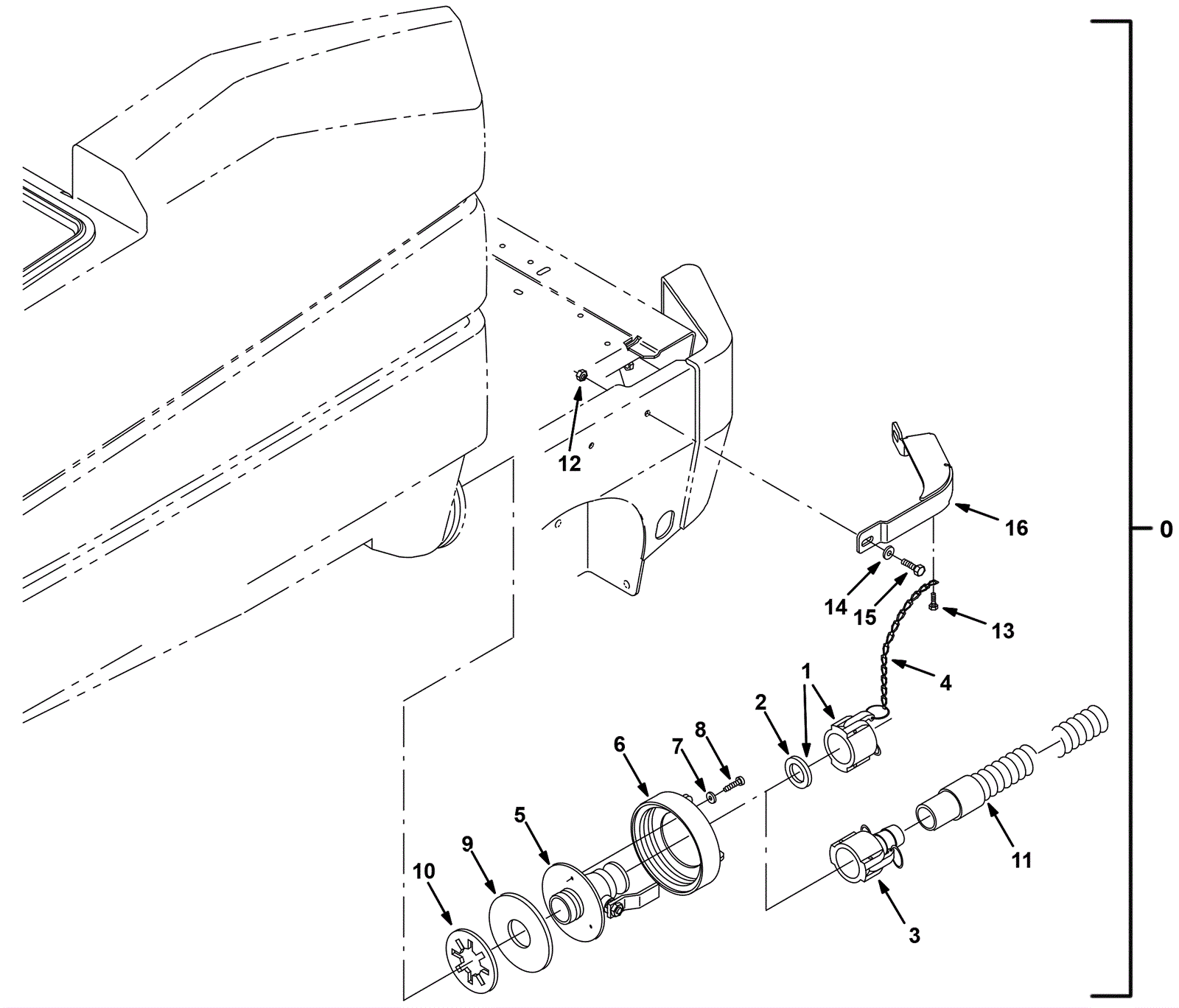

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
275-8693
|
DRAIN KIT, CI [POSI CNTRL/RECVY ONLY] (Tennant Industrial) |
1 |
(includes 1a-16a) (before SN 005000) |
|
0b |
275-7345
|
DRAIN KIT, GRAY, CI [POSI CNTRL/RECVY] (Tennant Industrial) |
1 |
(includes 1a-15, 16b) (after SN 004999) |
|
1a |
275-9055
|
Cap assembly (Tennant Industrial) |
1 |
(includes 1b-2) |
|
1b |
275-4302
|
Dust cap |
1 |
|
|
2 |
275-8694
|
Dust cap gasket |
1 |
|
|
3 |
175-9747
|
Female shank hose coupler fitting |
1 |
|
|
4 |
275-4304
|
CHAIN, SASH, 35, 07.2L 13 LINK (Tennant Industrial) |
1 |
|
|
5 |
275-2606
|
Drain valve (Tennant Industrial) |
1 |
|
|
6 |
175-3384
|
Tank cap |
1 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
8 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
3 |
|
|
9 |
275-4679
|
Gasket |
1 |
|
|
10 |
175-9746
|
Washer flat 1.91b 4.38d .13 polyethylene |
1 |
|
|
11 |
175-9748
|
Hose assembly with 1 cuff |
1 |
|
|
12 |
175-0791
|
Nut M10 x 1.5 hex flange |
2 |
|
|
13 |
175-3298
|
Bolt M6-1 x 12mm hex head |
1 |
|
|
14 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
15 |
175-3258
|
Bolt M10-1.5 x 35mm hex head |
2 |
|
|
16a |
275-8696
|
BUMPER, SIDE, RECVY [POSI DRAIN] (Tennant Industrial) |
1 |
(before SN 005000) |
|
16b |
275-2607
|
Recovery side bumper (gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
