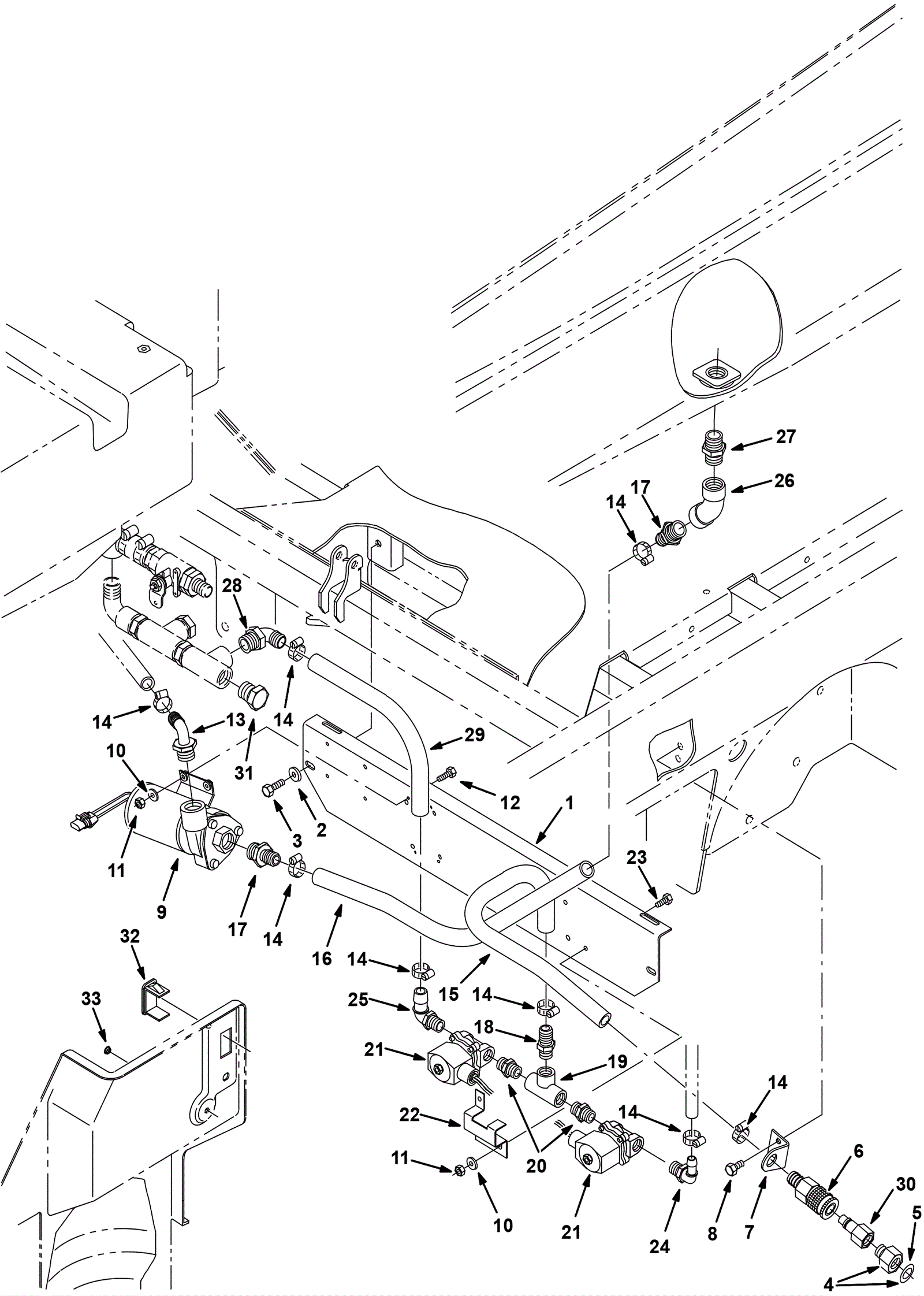

ES Pump Assembly

#PartDescription ReqNotesAvailability
1 275-2585 Iron mounting angle (gray) (Tennant Industrial) 1
2 999-0355 175-2249 2
3 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 2
4 275-8675 FITTING KIT, HOSE, GARDEN (Tennant Industrial) 1 (includes 5)
5 175-2303 Rubber washer 1
6 275-4202 FITTING, BRS, QDC, BM12/QF08 (Tennant Industrial) 1
7 275-2586 Iron mounting bracket (gray) (Tennant Industrial) 1
8 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 2
9 175-5255 Impeller solution pump 36vdc 1
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 7
11 999-0497 Nut M6-1 nylon insert lock stainless steel 7
12 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
13 175-5256 Plastic fitting 1
14 175-0199 Hose clamp 8
15 275-2587 Hose 2 feet (clear) (Tennant Industrial) 1
16 175-9686 HOSE, PVC, BRD, 0.75ID 1.03OD 026.0L,CLR (Tennant Industria 1
17 175-0680 Strain plastic fitting 2
18 275-8648 FITTING, PLSTC, STR, BM12/PM08, NYL (Tennant Industrial) 1
19 275-4197 FITTING, PLSTC, TEE, PF08/PF08/PF08 (Tennant Industrial) 1
20 275-8679 FITTING, PLSTC, STR, PM08/PM08 (Tennant Industrial) 2
21 275-4208 VALVE, WATER, SOLENOID, 36VDC PF08/PF08 (Tennant Industrial 2
22 275-2588 Iron support bracket (gray) (Tennant Industrial) 1
23 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
24 175-3430 Plastic fitting 1
25 275-8603 FITTING, PLSTC, E90, BM12/PM08 (Tennant Industrial) 1
26 175-9668 45 degree elbow plastic fitting 1
27 175-0663 FITTING, PLSTC, STR, PM12/PM12 1.60L (Tennant Industrial) 1
28 175-9679 90 degree plastic elbow 1
29 275-8680 HOSE, PVC, BRD, 0.75ID 1.03OD 014.0L,CLR (Tennant Industria 1
30 275-4203 FITTING, BRS, QDC, PF08 [PARKER BH3F] (Tennant Industrial) 1
31 175-2247 Plastic fitting 1
32 175-2556 Switch plug 1
33 175-9923 Black nylon plug 1
