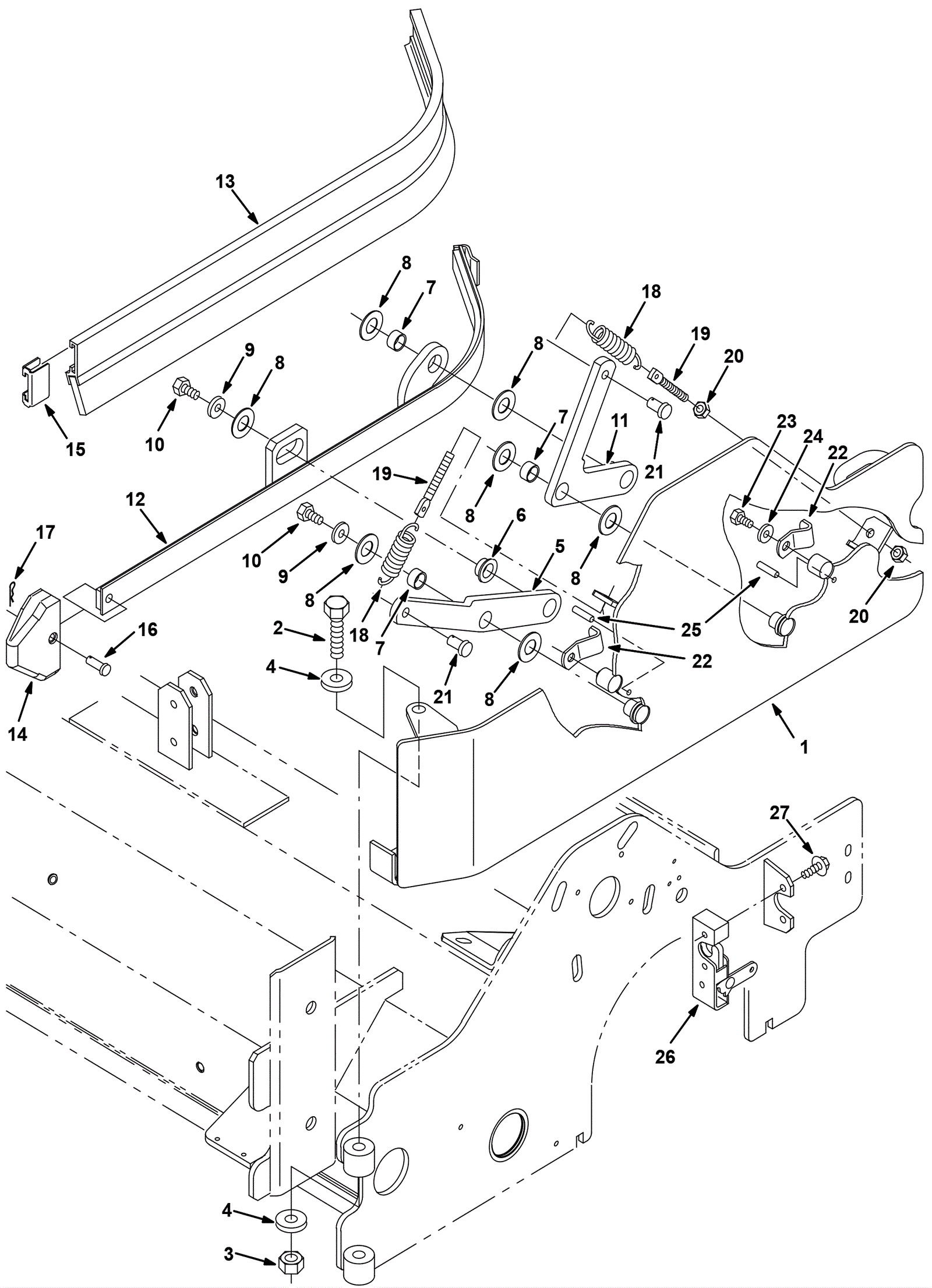

Left Side Squeegee Assembly - Cylindrical - Max Pro 1200

#PartDescription ReqNotesAvailability
1a 275-8658 GUARD WLDT, LH (Tennant Industrial) 1 (before SN 005000)
1b 275-2575 Left hand guard weldment (gray) (Tennant Industrial) 1 (after SN 004999)
2 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) 2
3 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
5a 275-8659 ARM WLDT, FRONT, LH (Tennant Industrial) 1 (before SN 05000)
5b 275-2576 Left hand front arm weldment (gray) (Tennant Industrial) 1 (after SN 004999)
6 175-3460 Flanged bushing 1
7 175-3349 Sleeved bushing 3
8 175-3347 Washer .61 thrust 7
9 999-0355 175-2249 4
10 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 4
11a 275-8660 ARM WLDT, REAR, LH (Tennant Industrial) 1 (before SN 005000)
11b 275-2577 Left hand rear arm weldment (gray) (Tennant (Industrial) 1 (after SN 004999)
12 175-0778 FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) 1
13 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) 1
14 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) 1
15 175-3357 Squeegee blade retainer 1
16 175-0775 Clevis pin (Tennant Industrial) 1
17 175-7107 Cotter hair pin 1
18 175-0770 Extension spring 2
19 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial 2
20 999-1424 Nut M8-1.25 hex stainless steel 4
21 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) 2
22 275-2574 Iron arm latch (gray) (Tennant Industrial) 2
23 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) 2
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
25 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) 2
26 275-8661 LATCH (Tennant Industrial) 1
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
